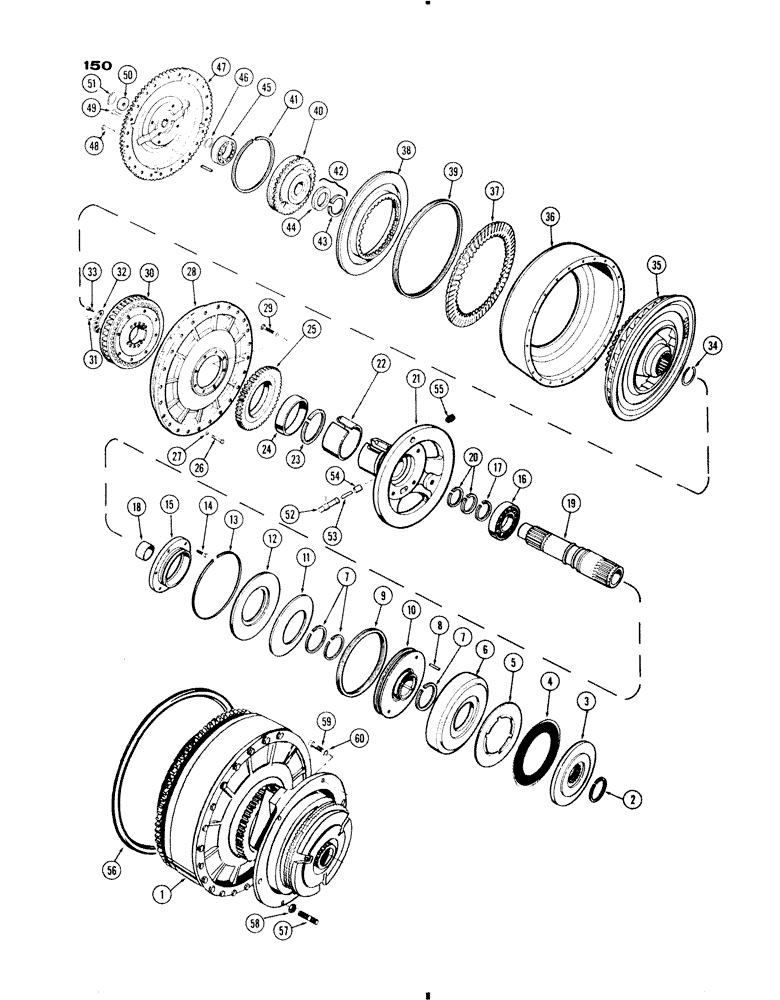

Запчасти Case IH 730 SERIES (150) - TORQUE CONVERTER (06) - POWER TRAIN

1

A32823

CONVERTER ASSY. - torque, Includes: Ref. 2 - 55

1шт.

2

A40158

RING, SNAP

RING - snap, external

1шт.

3

A40088

BACKPLATE - clutch

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - clutch (Order A40120) (See Figure 151A)

3шт.

5

NSS

NOT SOLD SEPARAT

PLATE - clutch (Order A40101) (See Figure 151A)

3шт.

6

NSS

NOT SOLD SEPARAT

PISTON - converter (Order A40100) (See Figure 151A)

1шт.

7

A20228

RING

- piston, converter

3шт.

8

A41621

PIN - piston to carrier (See Figure 151A)

2шт.

9

A40094

RING

- piston

1шт.

10

NSS

NOT SOLD SEPARAT

CARRIER - converter (Order A40100) (See Figure 151A)

1шт.

11

A40087

SPRING

- belleville, converter

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - converter (Order A40100) (See Figure 151A)

1шт.

13

A20223

RING, SNAP

RING - snap, plate retainer

1шт.

14

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

4шт.

15

A40085

RETAINER - bearing

1шт.

16

A20206

BALL BEARING

BEARING - ball, converter

1шт.

17

A20222

RING, SNAP

RING - snap, brg. retaining

1шт.

18

A22909

BEARING

BUSHING - sleeve (Steel backed bronze)

1шт.

19

NSS

NOT SOLD SEPARAT

SLEEVE - output (Order A40103) (See Figure 151A)

1шт.

20

A20229

RING

- piston, sleeve

2шт.

21

A41484

CARRIER - guide wheel

1шт.

22

A20238

SLEEVE - split

1шт.

23

A20231

RING

- seal

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - drive gear (Order A24726) (See Figure 151A)

1шт.

25

NSS

NOT SOLD SEPARAT

GEAR - drive, pump (Order A24726) (See Figure 151A)

1шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

24шт.

27

92-5

LOCK WASHER,5/16"

32шт.

28

A20203

WHEEL - impeller

1шт.

29

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

30

A41483

WHEEL ASSY. - guide

1шт.

31

138-108

LOCK PIN,7/32" x 5/8", Slotted

4шт.

32

D32010

PLATE

- clamp

2шт.

33

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - cap (5/16 x 1" N.C. Ferry hd.)

6шт.

34

A22889

RING

- snap, turbine hub

1шт.

35

A20204

WHEEL - turbine

1шт.

36

A20215

HOUSING - rotating, conv.

1шт.

37

NSS

NOT SOLD SEPARAT

PLATE - clutch (Order A40099) (See Figure 151A)

1шт.

38

A20218

PISTON - converter

1шт.

39

NSS

NOT SOLD SEPARAT

RING - oil seal (Order A40099) (See Figure 151A)

1шт.

40

A40084

CARRIER

- bearing

1шт.

41

NSS

NOT SOLD SEPARAT

RING - oil seal (Order A40099) (See Figure 151A)

1шт.

42

A24725

CARRIER

ASSY. - bearing, Includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

RING - piston (Order A24725)

1шт.

44

NSS

NOT SOLD SEPARAT

CARRIER - piston ring (Order A24725)

1шт.

45

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - ball

1шт.

46

A20234

X

RING - snap

1шт.

47

NSS

NOT SOLD SEPARAT

CARRIER - clutch lockup (Order A40098) (See Figure 151A)

1шт.

48

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

28шт.

49

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

50

A40090

PLUG - carrier

1шт.

51

A20224

RING, SNAP

RING - snap, plug

1шт.

52

A40086

GUIDE - valve

1шт.

53

A40083

PISTON - valve control (.375 dia.)

1шт.

54

A40082

PISTON - valve control (.750 dia.)

1шт.

55

221-1849

PLUG

- pipe, 1/8" hex socket hd.

4шт.

56

A11646

GASKET

-, Serial Range: converter-flywheel

1шт.

57

A11541

SPINDLE

STUD - locater

2шт.

58

131-528

LOCK NUT,3/8"-24

NUT - (3/8" N.F. self locking)

2шт.

59

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - (3/8 x 1-1/4" N.C. hex.)

4шт.

60

92-6

LOCK WASHER,3/8"

4шт.
