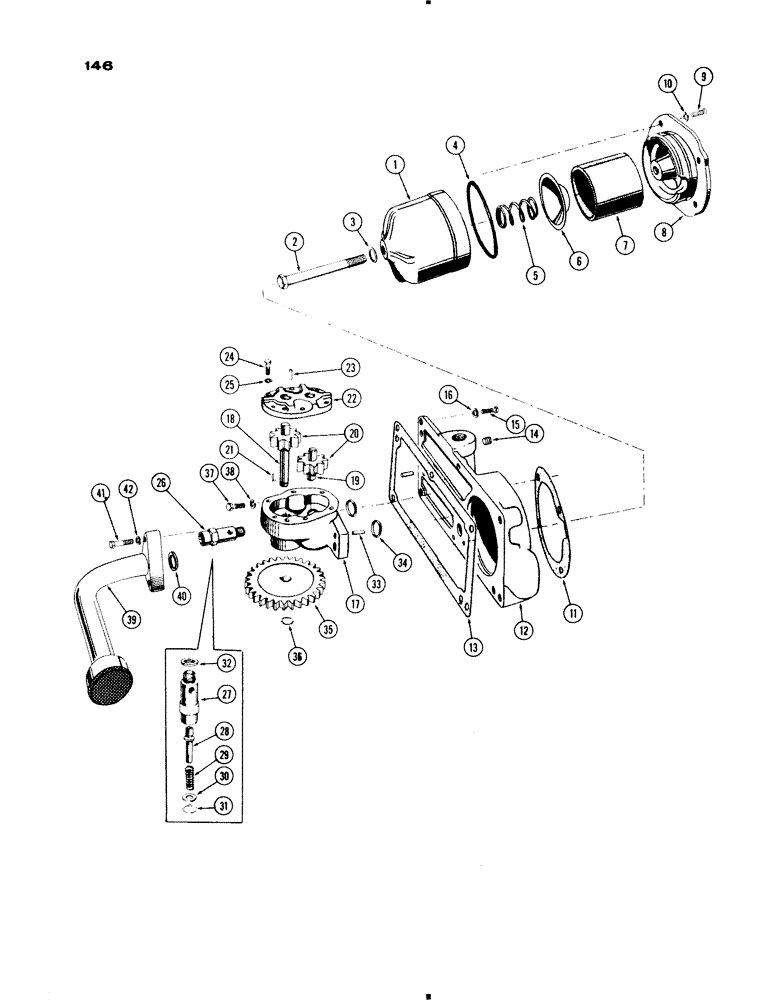

Запчасти Case IH 730 SERIES (146) - OIL PUMP, MANIFOLD AND FILTER, TORQUE CONVERTER (06) - POWER TRAIN

1

A11553

HOUSING

- oil filter

1шт.

2

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Filter housing Hex, 1/2"-13 x 4", G5

1шт.

3

A11557

GASKET

GASKET - filter bolt

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O"RING - housing (4 x 4-1/4 x 1/8")

1шт.

5

A27379

SPRING

- element tension

1шт.

6

A11554

SEAT - element spring

1шт.

7

A11552

ELEMENT

- oil filter

1шт.

8

A11558

COVER - filter

1шт.

9

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cover Hex, 3/8"-16 x 1 1/8", G5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

A11567

GASKET

- filter cover

1шт.

12

A11566

MANIFOLD - converter

1шт.

13

A11568

GASKET

- manifold

1шт.

14

221-1840

PLUG

- manifold (1/8" P.T. sckt., hd.)

1шт.

15

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Manifold Hex, 3/8"-16 x 1 1/8", G5, Full Thd

4шт.

15

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

- manifold (3/8 x 1-3/4" N.C., 12 Pt.)

2шт.

16

92-6

LOCK WASHER,3/8"

6шт.

A11534

PUMP, HYDRAULIC

PUMP ASSY. - oil, Includes: Ref. 17 - 38

1шт.

17

A11535

BODY ASSY. - oil pump, w/bushings

1шт.

18

A11522

SHAFT

- pump drive

1шт.

19

A11525

SHAFT

- follow gear

1шт.

20

A11523

GEAR

- lead & follow

2шт.

21

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Gears #3, 1/8" x 1/2"

3шт.

22

A11536

COVER ASSY. - oil pump, w/bushings

1шт.

23

A11528

PIN,7.81mm OD x 14.29mm L

- cover locating

2шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Cover Hex, 1/4"-20 x 3/4", G5, Full Thd

6шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

26

A23008

KEY

VALVE ASSY - relief, Includes: Ref. 27 - 32

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

28

A23062

PISTON - relief valve

1шт.

29

A23082

SPRING

- relief valve

1шт.

30

A22354

WASHER

- spring seat

1шт.

31

A22355

RING - snap, washer ret.

1шт.

32

A11530

GASKET

- relief valve

1шт.

33

A11528

PIN,7.81mm OD x 14.29mm L

- body locating

2шт.

34

A7075

GASKET

GASKET - pump

2шт.

35

A11537

GEAR

- pump drive

1шт.

36

A11538

SNAP RING,#50, Ext

RING - snap, , drive gear #50, Ext

1шт.

37

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Body Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

A23624

PIPE - oil intake, w/screen

1шт.

40

A7075

GASKET

GASKET - intake pipe

1шт.

41

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- pipe (5/16 x 1-1/4" N.C. hex.)

2шт.

42

92-5

LOCK WASHER,5/16"

2шт.
