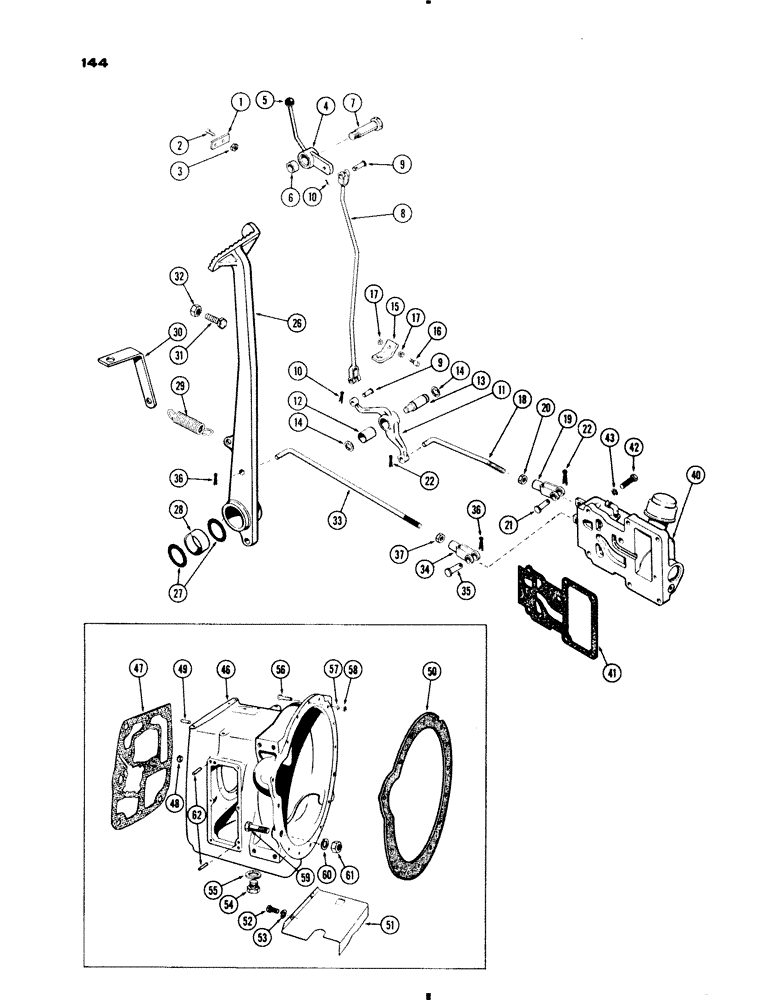

Запчасти Case IH 730 SERIES (144) - TORQUE CONVERTER HOUSING AND CONTROLS (06) - POWER TRAIN

1

A32886

BRACKET - limit adj. bolt

1шт.

2

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Limit adj. Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

3

25-145

JAM NUT,Jam, 5/16"-18, G5

- lock, adj. bolt (5/16" N.C. hex., jam)

1шт.

4

A32851

LEVER

- direct drive shift

1шт.

5

A32845

BALL - shift lever

1шт.

6

A32869

BEARING

- shift lever hub (7/8 x 1-1/16 x 1")

1шт.

7

A32846

BOLT - shoulder, shift lever pivot (5/8" N.C. x 2-27/32")

1шт.

8

A32854

ROD - direct drive link

1шт.

9

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

10

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

11

A11660

BELLCRANK ASSY. - direct drive shift, Includes: Ref. 12

1шт.

12

A11659

BUSHING - bellcrank (3/4 x 7/8 x 1-13/16")

1шт.

13

A11661

PIN - bellcrank pivot

1шт.

14

A20202

RING

- snap, bellcrank ret.

2шт.

15

A32494

BRACKET - bellcrank limit

1шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bellcrank stop Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

17

25-145

JAM NUT,Jam, 5/16"-18, G5

- lock, stop bolt (5/16" N.C. hex., jam)

2шт.

18

A32495

ROD - direct drive control

1шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - direct drive rod

1шт.

20

25-156

JAM NUT,Jam, 3/8"-24, G5

- (3/8" N.F. hex. jam)

1шт.

21

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

22

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

26

A32513

PEDAL ASSY. - foot control, Includes: Ref. 27 and 28

1шт.

27

A28214

OIL SEAL

- oil (1-1/2 x 1-7/8 x 3/16")

2шт.

28

A28213

NEEDLE BEARING,1.5" ID x 1.875" OD x 1.25"

BEARING - needle

1шт.

29

G10848

SPRING

- pedal return (4-5/8" free length)

1шт.

30

A32515

BRACKET - spring anchor (on rear cover)

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Stop adj. (on Plat.) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

32

25-146

JAM NUT,Jam, 3/8"-16, G5

- lock, adj. bolt (3/8" N.C. hex. jam)

2шт.

33

A32496

ROD - valve spool control, lower

1шт.

34

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - lower control rod

1шт.

35

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

36

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

37

25-156

JAM NUT,Jam, 3/8"-24, G5

- rod (3/8" N.F. hex. jam)

1шт.

40

A32160

VALVE

ASSY. - (See Figure 148)

1шт.

41

A32165

GASKET

- control valve

1шт.

42

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- valve (3/8 x 1-1/2" N.C. hex.)

6шт.

43

92-6

LOCK WASHER,3/8"

6шт.

46

A32049

HOUSING - converter

1шт.

47

A32050

GASKET

- conv. hsg. to trans. case

1шт.

48

A11540

CUP

- shift rail seal

1шт.

49

A28269

PIN

DOWEL - hsg. locating

2шт.

50

A11649

GASKET

- conv. hsg. to cyl block

1шт.

51

A11544

BUSHING

BAFFLE - conv. hsg. bottom

1шт.

52

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Baffle Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

53

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

54

A14280

PLUG

- drain, conv. hsg.

1шт.

55

A27927

OIL PAN GASKET SET

- drain plug

1шт.

56

A32607

STEP BOLT

- dowel, long (1/2 x 3" N.C. hex.)

1шт.

56

A32608

STEP BOLT

BOLT - dowel, short (1/2 x 2-3/16" N.C. hex.)

1шт.

56

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

5шт.

56

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Housing Hex, 1/2"-13 x 2", G5

1шт.

57

92-8

LOCK WASHER,1/2"

8шт.

58

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

8шт.

59

A20108

BOLT - hsg. (3/4 x 2-3/4" N.F. hex.)

2шт.

60

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

61

25-1112

NUT,3/4"-16, G5

- (3/4" N.F. hex.)

2шт.

62

A8134

PIN

- pump manifold locating

2шт.
