Запчасти Case IH 730 SERIES (143A) - A33109 CLUTCH, ALL 730 AND 830, EXCEPT GROVE, A9993 CLUTCH FOR 730 GROVE (06) - POWER TRAIN

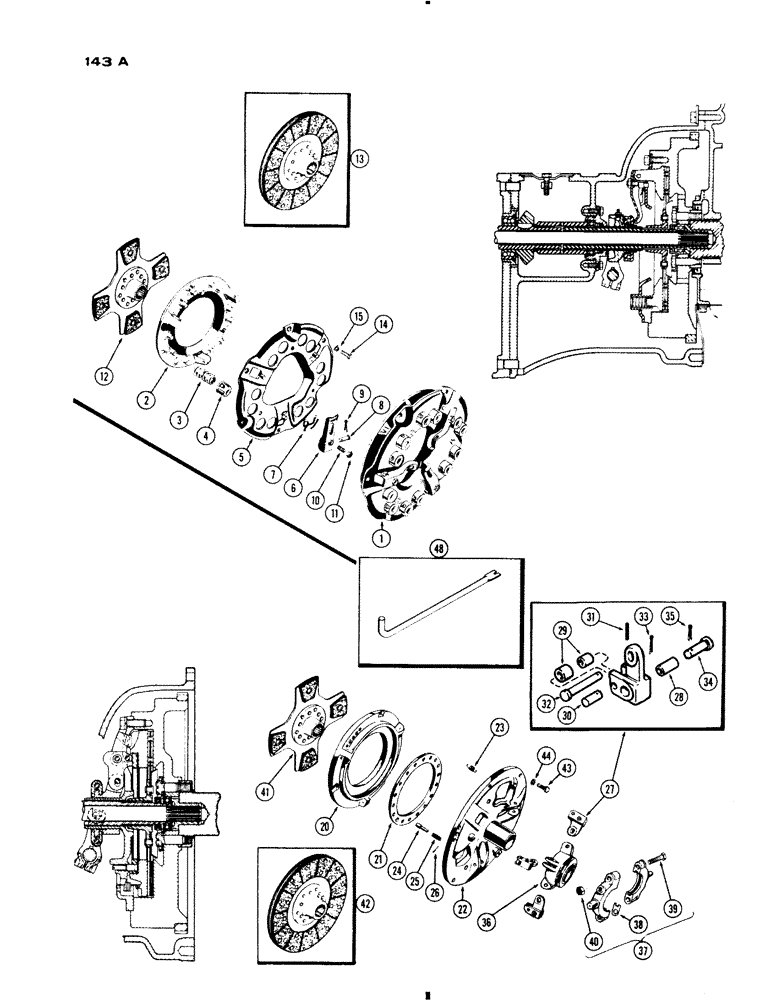

Схема запчастей Case IH 730 SERIES - (143A) - A33109 CLUTCH, ALL 730 AND 830, EXCEPT GROVE, A9993 CLUTCH FOR 730 GROVE (06) - POWER TRAIN
20
24
21
31
30
3
42
37
29
14
39
13
2
10
22
44
28
41
23
27
36
38
1
48
25
7
35
4
32
12
6
8
33
11
9
40
15
43
34
5
26

Артикул

Название

Примечание

Количество

1

A59589

COVER

COVER ASSY. - clutch (Replaces A33109), Includes: Ref. 2 - 11

1шт.

1

AR59589

REMAN-CLUTCH PLATE

COVER ASSY. - clutch

1шт.

1

AC59589

CORE-CLUTCH PLATE

Return Number

1шт.

2

A7674

LARGE PLATE

PLATE, LARGE PLATE - pressure

1шт.

3

A40035

VALVE SPRING

SPRING - pressure

12шт.

It is recommended a complete set of springs be installed when repairing clutch.

1шт.

4

A7680

CUP

CUP - pressure spring, seat

12шт.

5

A7686

SPARE PART PLATE - back

1шт.

6

A7685

LEVER

LEVER - clutch release

3шт.

7

A7678

SPRING

SPRING - torsion (Anti-Rattle)

3шт.

8

A7677

PIN

PIN - pivot, release lever

3шт.

9

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

10

A7676

ADJUSTMENT SCREW,7/16" - 20 x 15/16"

SCREW - lever adj.

3шт.

11

A31129

NUT

NUT - lock, adj. screw

3шт.

12

A34277

PLATE

PLATE ASSY. - driven (w/button type facing) (1st used eng. ser. no. 2141679)

1шт.

13

A33484

X

PLATE ASSY. - driven (w/clutch type facing) (used prior to eng. ser. no. 2141679) (Order A34277)

1шт.

A33485

KIT

FACING KIT - replacement (for A33484)

1шт.

14

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, , Plate Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

15

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

6шт.

A9993

VACUUM GAUGE

SPARE PART CLUTCH ASSY., Includes: Ref. 20 - 40, 730 grove

1шт.

20

A8360

SPARE PART PLATE - pressure, A9993 clutch 730 grove

1шт.

21

A9185

SPARE PART RING - adjusting, A9993 clutch 730 grove

1шт.

22

A8361

SPARE PART COVER - clutch plate, A9993 730 grove

1шт.

23

A27255

SPRING

SPRING - clutch release, A9993 730 grove

3шт.

24

A27813

SPARE PART PIN - lock, adj. ring, A9993 clutch 730 grove

1шт.

25

A26944

VALVE SPRING

SPRING - lock pin, A9993 clutch 730 grove

1шт.

26

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, , A9993 clutch 730 grove 1/8" x 1 1/4", Slotted

1шт.

27

A9992

SPARE PART

LEVER ASSY. - pressure plate, Includes: Ref. 28 - 31, A9993 clutch 730 grove

3шт.

28

A9987

BUSHING

BUSHING - lever (3/8 x 1/2 x 1"), A9993 clutch 730 grove

1шт.

29

A10044

ROLLER

ROLLER ASSY., A9993 clutch 730 grove

1шт.

30

A9990

SPARE PART

PIN - roller guide (3/8 x 61/64"), A9993 clutch 730 grove

1шт.

31

138-41

LOCK PIN,3/32" x 3/4", Slotted

PIN, , A9993 clutch 730 grove 3/32" x 3/4", Slotted

1шт.

32

A11817

SPARE PART PIN - lever (3/8 x 2-3/16" clevis), A9993 clutch 730 grove

3шт.

33

132-300

PIN, SPLIT (COTTER)

PIN, COTTER PIN - cotter (1/8 x 7/8"), A9993 clutch 730 grove

3шт.

34

A9991

PIN

PIN - lever guide (3/8 x 1-3/32" clevis), A9993 clutch 730 grove

3шт.

35

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , A9993 clutch 730 grove 3/32" x 5/8"

3шт.

36

A8362

SPARE PART SLEEVE - sliding, A9993 clutch 730 grove

1шт.

37

A20014

SPARE PART COLLAR ASSY. - sliding sleeve, Includes: Ref. 38 - 40, A9993 clutch 730 grove

1шт.

38

A30186

SPARE PART SHIM - collar, A9993 clutch 730 grove

2шт.

39

14-640

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

BOLT - collar (3/8 x 2-1/2" N.F. hex.), A9993 clutch 730 grove

2шт.

40

131-5

LOCK NUT,3/8"-16, GB

NUT - (3/8" N.F. hex.), A9993 clutch 730 grove

2шт.

41

A34277

PLATE

PLATE ASSY. - driven (w/button type facing) (1st used eng. ser. no. 2141679), A9993 clutch 730 grove

1шт.

41

1997842C1R

REMAN-CLUTCH DISC

Remanufactured Clutch Disc, 12 in., 16Tooth hub, 4 paddle, No damper assembly

1шт.

41

1997842C1C

CORE-CLUTCH DISC

Return Part Number

1шт.

42

A33484

X

PLATE ASSY. - driven (w/clutch type facing) (used prior to eng. ser. no. 2141679) (Order A34277), A9993 clutch 730 grove

1шт.

43

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, , Cover, A9993 clutch 730 grove Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

44

92-8

LOCK WASHER,1/2"

LOCK WASHER, , A9993 clutch 730 grove 1/2"

6шт.

48

A7942

TOOL

TOOL - clutch adjusting, A9993 730 grove

1шт.

Выбрано товаров: 48
