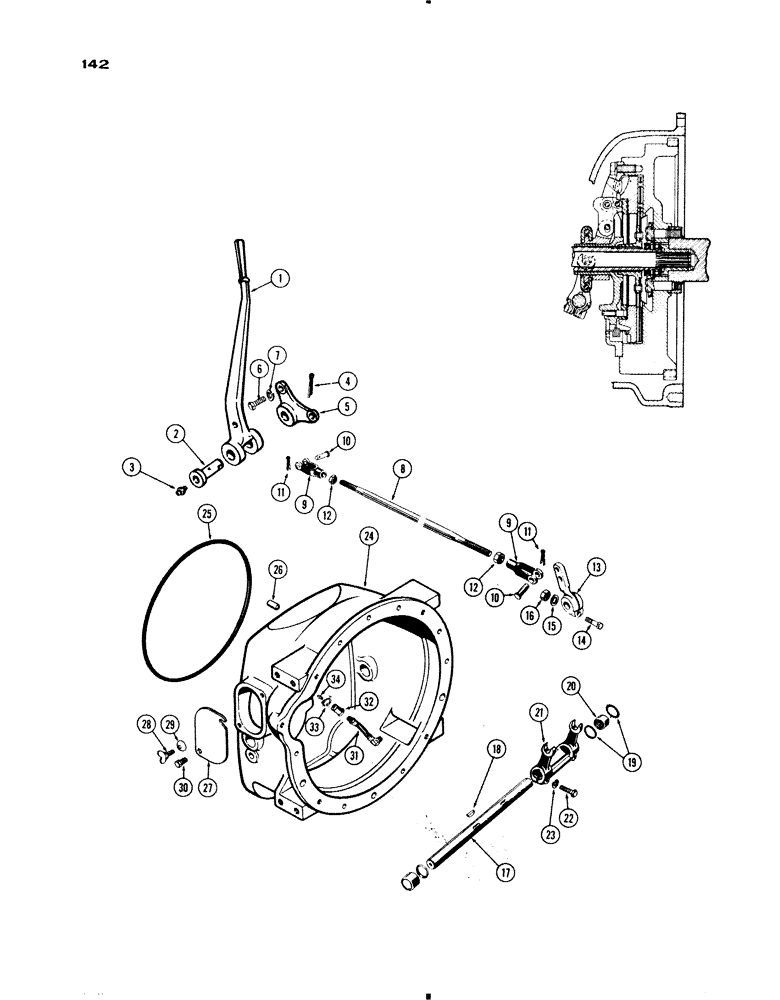

Запчасти Case IH 730 SERIES (142) - CLUTCH HOUSING AND CONTROLS, 730 GROVE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A8485
LEVER - clutch throwout
1шт.
2
A27722
PIN - lever pivot
1шт.
3
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
4
132-75
HARDWARE,5/32" x 1 3/4"
PIN, SPLIT (COTTER), 5/32" x 1 3/4"
1шт.
5
A8486
BRACKET - lever mtg.
1шт.
6
13-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
- brkt. (5/8 x 2-3/4" N.C. hex.)
2шт.
8
A10221
ROD - clutch throwout
1шт.
9
213-6
ADJUSTABLE CLEVIS,1/2"-20 x 3"
YOKE - rod
2шт.
10
141-6
CLEVIS PIN,1/2" x 1.360"
PIN - clevis (1/2 x 1-23/64")
2шт.
11
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
2шт.
12
25-118
NUT,1/2"-20, G5
- rod (1/2" N.F. hex.)
2шт.
13
A8483
LEVER - clutch shaft
1шт.
14
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- lever 91/2 x 2-1/2" N.C. hex.)
1шт.
15
92-8
LOCK WASHER,1/2"
1шт.
16
25-108
NUT,1/2"-13, G5
- (1/2" N.C. hex.)
1шт.
17
A9865
SHAFT - yoke & lever
1шт.
18
126-24
WOODRUFF KEY,#15, 1/4" x 1"
Shaft #15, 1/4" x 1"
3шт.
19
A28211
OIL SEAL
- oil, clutch shaft
3шт.
20
A28210
BEARING, NEEDLE,1" ID x 1.25" OD x 1"
BEARING - needle
2шт.
21
A9761
YOKE
- throw-out fork
1шт.
22
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
Yoke Hex, 3/8"-16 x 1 1/4", G5, Full Thd
2шт.
23
92-6
LOCK WASHER,3/8"
2шт.
24
A33824
HOUSING - clutch
1шт.
25
A32047
GASKET
- hsg. to trans. case
1шт.
26
A28269
PIN
DOWEL - hsg. locating
2шт.
27
A7082
COVER
- hand hole
1шт.
28
A7276
SCREW - cover (Order 13-68)
1шт.
29
A7275
WASHER - (Order 13-68)
1шт.
30
13-68
SCREW,Hex, 3/8" - 16 x 1/2", Gr 5
BOLT - cover (3/8 x 1/2" N.C. hex) (Replaces A7274)
1шт.
31
A20017
HOSE ASSY.
HOSE - grease
1шт.
32
A20015
ADAPTER - hose connection
1шт.
33
G46176
SNAP RING,#56, Ext
RING - snap, , adapter #56, Ext
1шт.
34
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" P.T. str.)
1шт.
Выбрано товаров: 34
