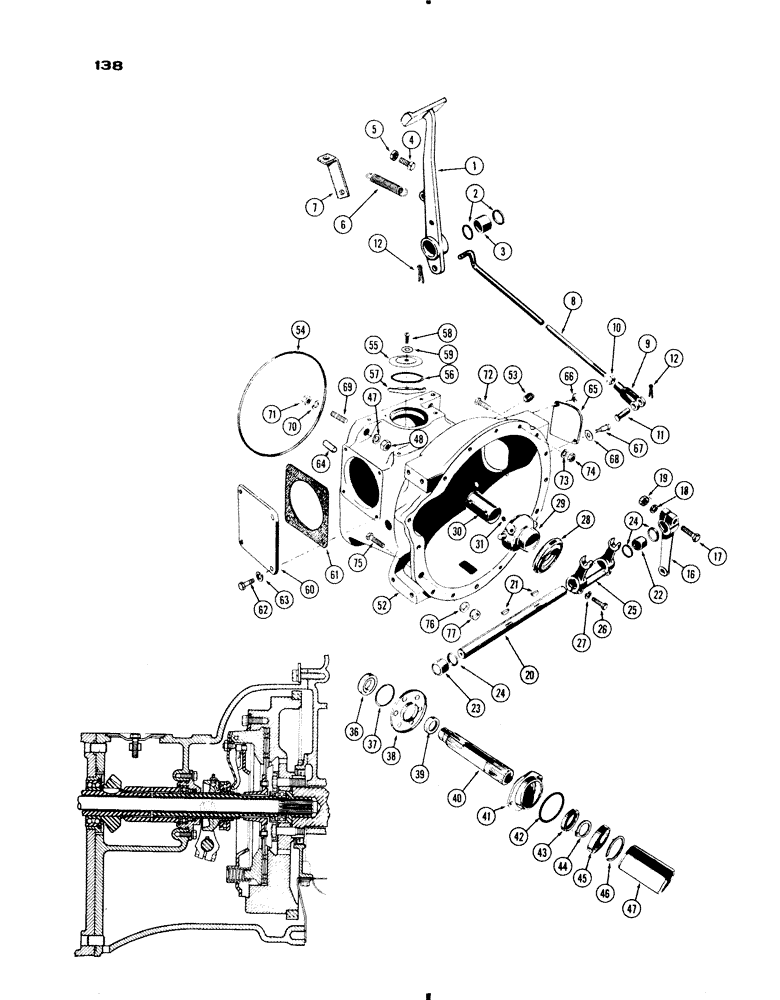

Запчасти Case IH 730 SERIES (138) - CLUTCH CONTROLS, CLUTCH HOUSING, ALL 730 AND 830, EXCEPT GROVE (06) - POWER TRAIN

1

A32513

PEDAL ASSY. - clutch, foot, Includes: Ref. 2 and 3

1шт.

2

A28214

OIL SEAL

- oil (1-1/2 x 1-7/8 x 3/16")

2шт.

3

A28213

NEEDLE BEARING,1.5" ID x 1.875" OD x 1.25"

BEARING - needle

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Stop adj. (on Plat.) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

5

25-146

JAM NUT,Jam, 3/8"-16, G5

- lock, adj. bolt (3/8" N.C. half hex.)

2шт.

6

G48511

SPRING

- pedal return (4-1/2" Free length)

1шт.

7

A32515

BRACKET - spring anchor (on rear cover)

1шт.

8

A28212

ROD - foot pedal linkage

1шт.

9

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod to lever

1шт.

10

25-118

NUT,1/2"-20, G5

- lock, clevis (1/2" N.F. hex.)

1шт.

11

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis (1/2 x 1-13/64")

1шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

16

A32516

LEVER

- clutch shaft

1шт.

17

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- lever (1/2 x 2-1/2" N.C. hex.)

1шт.

18

92-8

LOCK WASHER,1/2"

1шт.

19

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

1шт.

20

A28209

SHAFT - yoke & lever

1шт.

21

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Shaft #15, 1/4" x 1"

3шт.

22

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle

1шт.

23

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

BEARING - needle

1шт.

24

A28211

OIL SEAL

- oil, clutch shaft (1 x 1-1/4 x 1/8")

3шт.

25

A9761

YOKE

- throw-out fork

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Yoke Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

A57978

CARRIER

ASSY. - clutch throwout brg., Includes: Ref. 28 and 29

1шт.

28

A7538

BEARING

- clutch release

1шт.

29

NSS

NOT SOLD SEPARAT

SLEEVE - clutch relese brg.

1шт.

30

A7150

TUBE

- release sleeve

1шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" drive, str.)

1шт.

36

A28237

BALL BEARING,34.99mm ID x 62mm OD x 14mm W

BEARING - pilot (in flywheel)

1шт.

37

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O"RING - retainer (2-1/2 x 2-3/4 x 1/8")

1шт.

38

A7145

RETAINER

- oil seal

1шт.

39

A57479

OIL SEAL

- oil, front (1-1/2 x 2-1/8 x 7/16") (Replaces A7144)

1шт.

40

A7138

SHAFT - clutch

1шт.

41

A7141

CARRIER

- clutch shaft bearing

1шт.

42

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O"RING - brg. carrier (3-1/4 x 3-1/2 x 1/8")

1шт.

43

A7146

OIL SEAL

SEAL - oil, clutch shaft (1-3/4 x 2-7/16 x 15/32")

1шт.

44

A7147

SNAP RING,#177, Ext

RING - snap, , bearing, front #177, Ext

1шт.

45

G13075

BEARING, BALL

BEARING - clutch shaft

1шт.

46

A7142

RING, SNAP

RING - snap, brg., ret., rear

1шт.

47

A28154

COUPLING - clutch shaft to range shaft

1шт.

52

A32046

HOUSING

- clutch

1шт.

53

221-12

PLUG,Sq Hd, 1/4"-18

- hsg. (1/4" P.T. sq. hd), clutch housing

1шт.

54

A32047

GASKET

- hsg. to trans. case, clutch housing

1шт.

55

A7083

COVER

- hsg., top, clutch housing

1шт.

56

A7084

GASKET

- cover, clutch housing

1шт.

57

A7086

PIN

CLAMP - cover, clutch housing

1шт.

58

A27165

SPECIAL BOLT

SCREW - cover ret., clutch housing

1шт.

59

A22317

WASHER

- cover screw (25/64 x 9/16 x 3/64" copper), clutch housing

1шт.

60

A7087

SPINDLE

COVER - hsg. (right hand side), clutch housing

1шт.

61

A7088

GASKET

- cover, clutch housing

1шт.

62

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd, Cover, clutch housing

4шт.

63

92-8

LOCK WASHER,1/2"

clutch housing 1/2"

4шт.

64

A28269

PIN

DOWEL - hsg. locating, clutch housing

2шт.

65

A7082

COVER

- hand hole (left hand side), clutch housing

1шт.

66

A7276

SCREW - cover (Order 13-68), clutch housing

1шт.

67

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - cover (3/8 x 1/2" N.C. hex) (Replaces A7274), clutch housing

1шт.

68

A7275

WASHER - (Order 13-68), clutch housing

1шт.

69

A7073

STUD

- hsg. to trans. case (7/8" N.F. x 4"), clutch housing

4шт.

70

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Clutch housing 7/8"

4шт.

71

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.), clutch housing

4шт.

72

A32607

STEP BOLT

- dowel, long (1/2 x 3" N.C. hex.), clutch housing

1шт.

72

A32608

STEP BOLT

BOLT - dowel, short (1/2 x 2-13/16" N.C. hex.), clutch housing

1шт.

72

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing, clutch housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

5шт.

72

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Housing, clutch housing Hex, 1/2"-13 x 2", G5

1шт.

73

92-8

LOCK WASHER,1/2"

clutch housing 1/2"

8шт.

74

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.), clutch housing

8шт.

75

A20108

BOLT - hsg. (3/4 x 2-3/4" N.F. hex.), clutch housing

2шт.

76

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Clutch housing 3/4"

2шт.

77

25-1112

NUT,3/4"-16, G5

- (3/4" N.F. hex.), clutch housing

2шт.
