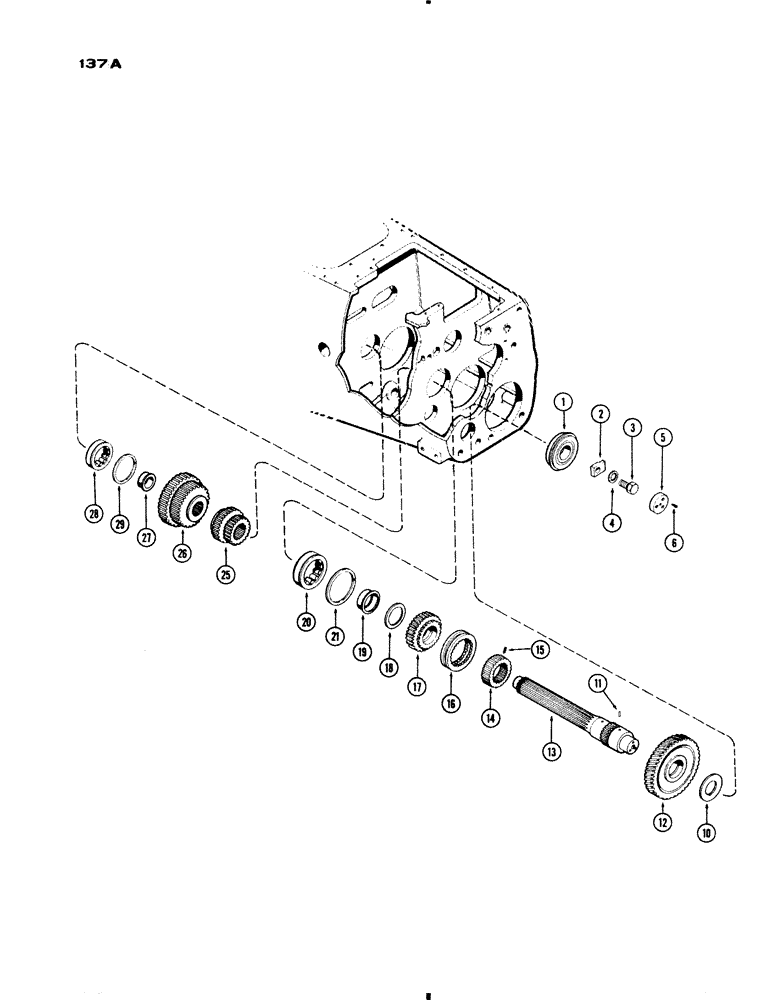

Запчасти Case IH 730 SERIES (137A) - SLIDING GEAR SHAFT (06) - POWER TRAIN

1

A32018

BALL BEARING,44.99mm ID x 100mm OD x 25mm W

BEARING - sliding shaft, front

1шт.

2

A32788

CLAMP

- bearing plate ret.

2шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Clamp Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

4

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

5

A32019

PLATE

- bearing retaining

1шт.

6

165-118

HEX SOC SCREW,Prev Torque, 5/16" - 18 x 3/4"

BOLT - plate (5/16 x 3/4" N.C. sckt. hd)

3шт.

10

A60040

WASHER

- thrust, low range gear (Replaces A32017)

1шт.

11

138-215

LOCK PIN,3/16" x 3/8", Slotted

PIN - thrust washer (1/4 x 5/8" roll)

1шт.

12

A61314

GEAR

- low range (47 x 20 helical teeth) (Replaces A32022 and A34347)

1шт.

13

A32016

SHAFT - sliding gear (set screw hole removed at trans. ser. no. 2215833)

1шт.

14

A32024

COLLAR

- range clutch (20 ext. & int. teeth) 27 teeth (set screw hole remove at trans. ser. no. 2215833)

1шт.

15

A32026

SET SCREW,Hex Skt, 5/16" - 18 x 5/8"

SCREW - collar ret. (5/16" N.C. sckt. hd. cone pt.) (used prior to trans. ser. no. 2215833)

1шт.

16

A32025

SLEEVE

- range clutch (27 int. teeth)

1шт.

17

A57340

GEAR

- high range (27 & 20 helical teeth) (Replaces A32028)

1шт.

18

A57970

WASHER

- thrust (2-1/8 x 2-7/8 x 9/64") (Replaces A32030)

1шт.

19

A34774

RACE

- bearing, sliding shaft, center, inner (Replaces A32020)

1шт.

20

A32004

BEARING ASSY,55mm ID x 100mm OD x 21mm W

BEARING - sliding shaft, ctr., outer

1шт.

21

A32005

RING

- snap. ctr. outer brg. ret

1шт.

25

A33451

GEAR - sliding, 1st, 2nd, 5th, & 6th speeds (18 and 14 spur teeth)

1шт.

26

A28165

GEAR - sliding, 3rd, 4th, 7th & 8th speeds (27 and 22 spur teeth)

1шт.

27

A33043

ROLLER BEARING,34.99mm ID x 20.87mm W

RACE - brg., sliding shaft, rear, inner

1шт.

28

A33042

BEARING ASSY

BEARING - sliding shaft, rear, outer

1шт.

29

A33041

RING, SNAP

RING - snap, rear outer brg. ret.

1шт.
