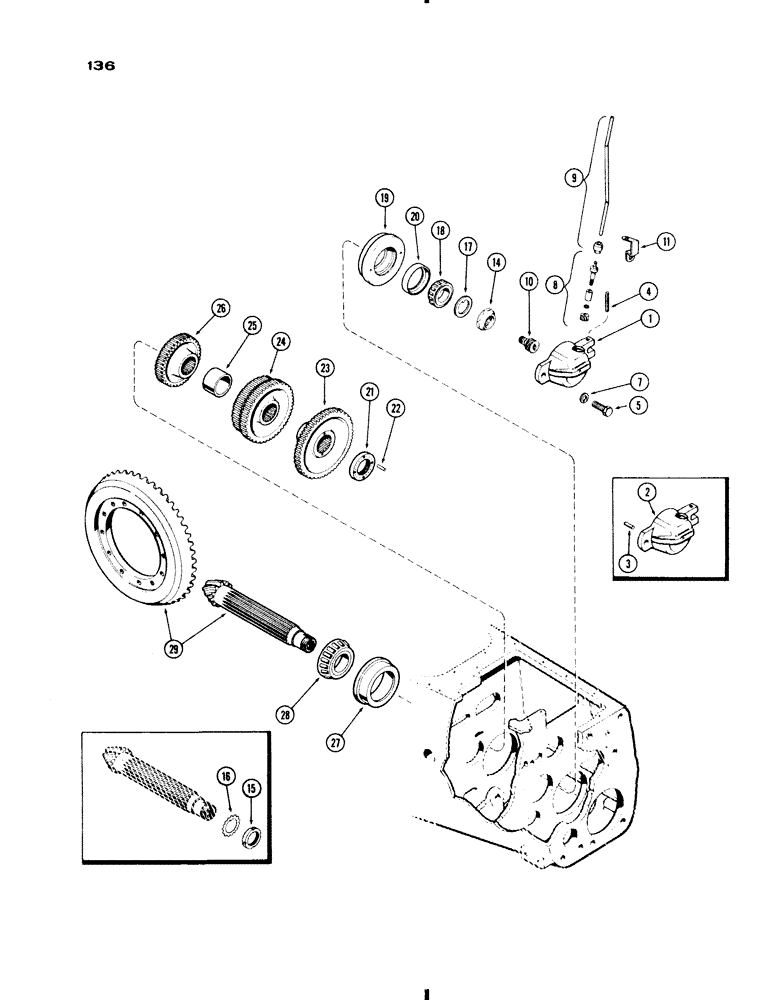

Запчасти Case IH 730 SERIES (136) - COUNTERSHAFT (06) - POWER TRAIN

1

A34087

BRACKET - speedometer drive, Start Serial: 8260707

1шт.

2

A33532

BRACKET ASSY. - speedometer drive (order A34087), Includes: Ref. 3, Serial Range: -8260707

1шт.

3

A20363

PIN - bracket locating (5/32 x 5/8")

3шт.

4

A9906

X

SCREW - drive bracket

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- bracket (3/8 x 1-1/2" N.C. hex.)

1шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

A20280

GEAR

KIT - driven (12 teeth) (used w/A25290 or A25280 gear sets) (See Ref. 29)

1шт.

8

A20281

GEAR

KIT - driven (13 teeth) (used w/A25289 gear set) (See Ref. 29)

1шт.

9

A11624

TUBE

ASSY. - speedometer drive (internal)

1шт.

10

A11621

GEAR

- speedometer drive

1шт.

11

A34724

CLIP

- speedometer tube ret.

1шт.

14

A60019

NUT

- front brg. (1st used trans. ser. no. 2230235)

1шт.

15

A27580

X

NUT - front brg. (Used prior to trans. ser. no. 2230235) (Order A60019)

1шт.

16

A28171

LOCK WASHER

WASHER - lock, (used w/A27580 Nut)

1шт.

17

A28170

WASHER

- thrust, front bearing

1шт.

18

A28169

ROLLER BEARING,1.875" ID x 0.875"

CONE - brg., front

1шт.

19

A61903

CARRIER ASSY. - countershaft & bearing cup, Includes: Ref. 20

1шт.

20

A28168

CUP

- brg., front

1шт.

21

A22760

NUT

- coutershaft gears retaining

1шт.

22

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, , Lock nut 1/4" x 3/4", Slotted

1шт.

23

A28172

GEAR - 1st & 5th (41 teeth)

1шт.

24

A28173

GEAR - 2nd, 3rd, 6th & 7th, (37 & 33 teeth)

1шт.

25

A28291

SPACER

- gear (2-9/32 x 2-7/8 x 1-13/16")

1шт.

26

A28174

GEAR - 5th & 8th (28 teeth)

1шт.

27

A32001

CUP

- bearing, rear

1шт.

28

A7945

CONE

- bearing, rear

1шт.

29

A25289

GEAR SET - countershaft and ring gear (9 and 48 teeth) (General Purpose)

1шт.

29

A25280

GEAR

SET - countershaft and ring gear (10 and 48 teeth) (4 wheel, West and Grove) (See A41609 for special Grove Gear Set)

1шт.

29

A25290

GEAR SET - countershaft and ring gear (11 and 48 teeth) (Hi-Clearance) (Order A25280)

1шт.

A41609

GEAR KIT - (Grove only) (for reduced ground speed) (Incl. 1-6 tooth countershaft, 1-48 tooth ring gear, 1-ring gear spacer & 12-14-844, 1/2 x 2-3/4" N.F. hex. bolts)

1шт.
