Запчасти Case IH 730 SERIES (134) - RANGE AND P.T.O SHAFTS, STANDARD TRANSMISSION, ALL 730 AND 830, EXCEPT GROVE AND 730 GROVE ONLY (06) - POWER TRAIN

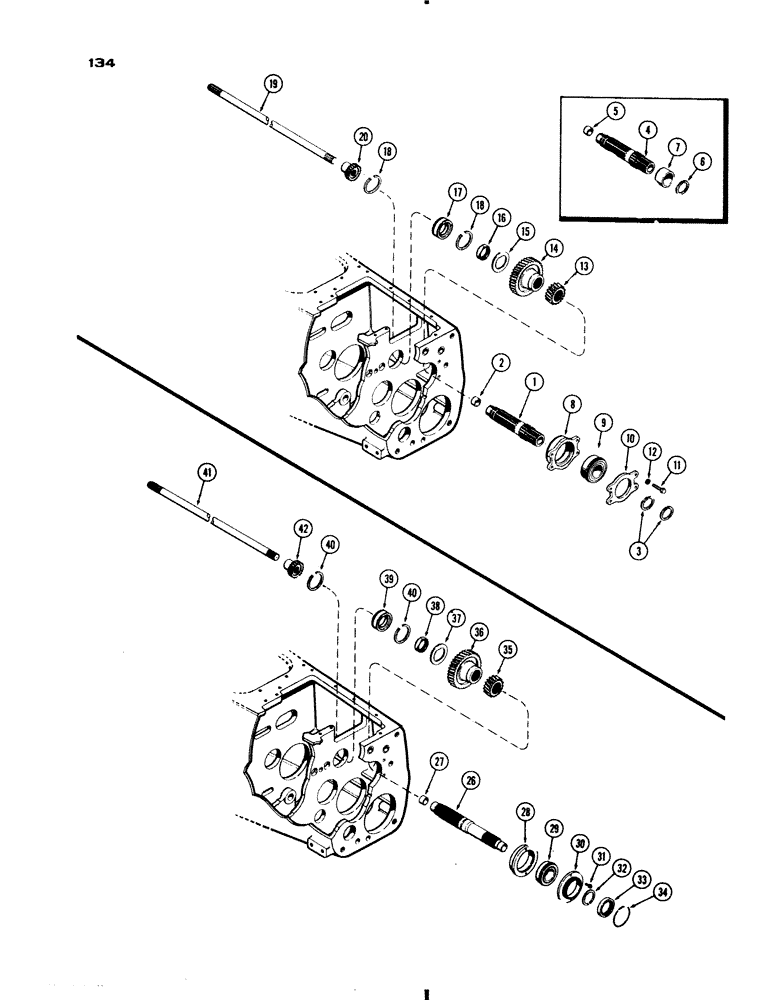

Схема запчастей Case IH 730 SERIES - (134) - RANGE AND P.T.O SHAFTS, STANDARD TRANSMISSION, ALL 730 AND 830, EXCEPT GROVE AND 730 GROVE ONLY (06) - POWER TRAIN
19
2
39
40
15
27
3
7
34
31
41
38
29
12
1
8
33
10
32
6
26
36
17
37
42
9
14
30
13
18
20
35
28
40
11
5
4
16
18

Артикул

Название

Примечание

Количество

1

A34239

SHAFT ASSY. - range drive (w/2 snap ring grooves), Includes: Ref. 2, Start Serial: 8283447

1шт.

2

A28235

BUSHING

- range shaft (1-18 x 1-1/4 x 3/4")

1шт.

3

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, range shaft

2шт.

4

A28729

SHAFT ASSY. - range drive (w/1 snap ring groove) (Order A34239), Includes: Ref. 5, Serial Range: -8283447

1шт.

5

A28235

BUSHING

- range shaft (1-1/8 x 1-1/4 x 3/4")

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, range shaft

1шт.

7

A23335

SPACER - range shaft (2 x 2-1/2 x 1-1/2"), Serial Range: -8283447

1шт.

8

A32032

CARRIER - front bearing

1шт.

9

A34230

BALL BEARING,1.9685" ID x 3.5433" OD x 1.1875"

BEARING - range shaft, front

1шт.

10

A32038

RETAINER - front bearing

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

A11608

GEAR - low range (18 teeth)

1шт.

14

A11610

GEAR - high range (38 teeth)

1шт.

15

A32035

LOCK WASHER

- lock, range drive nut

1шт.

16

A32034

NUT

- lock, range drive

1шт.

17

A28149

ROLLER BEARING,1.7311" ID x 2.8346" OD x 1.0625"

BEARING - range shaft, rear

1шт.

18

A28153

RING

- snap, rear brg., ret

2шт.

19

A32459

SHAFT - PTO (58-5/8" long)

1шт.

20

A28234

SLEEVE

- drive

1шт.

26

A10325

SHAFT ASSY. - range, Includes: Ref. 27, 730 grove

1шт.

27

A28235

BUSHING

- shaft (1-1/8 x 1-1/4 x 3/4"), 730 grove

1шт.

28

A33818

CARRIER - range shaft brg., 730 grove

1шт.

29

A34230

BALL BEARING,1.9685" ID x 3.5433" OD x 1.1875"

BEARING - range shaft, front, 730 grove

1шт.

30

A9862

CARRIER - oil seal, 730 grove

1шт.

31

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - carrier (1/4 x 1/2" N.C. sckt. hd.), 730 grove

2шт.

32

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, brg. ret., 730 grove

1шт.

33

A26842

OIL SEAL

SEAL - oil, frt. brg., 730 grove

1шт.

34

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O"RING - carrier (3-1/4 x 3-1/2 x 1/8"), 730 grove

1шт.

35

A11608

GEAR - low range (18 teeth), 730 grove

1шт.

36

A11610

GEAR - high range (38 teeth), 730 grove

1шт.

37

A32035

LOCK WASHER

- lock, range shaft nut, 730 grove

1шт.

38

A32034

NUT

- lock, range shaft, 730 grove

1шт.

39

A28149

ROLLER BEARING,1.7311" ID x 2.8346" OD x 1.0625"

BEARING - range shaft, rear, 730 grove

1шт.

40

A28153

RING

- snap, rear brg. ret., 730 grove

2шт.

41

A33745

SHAFT - PTO (52-17/32" long), 730 grove

1шт.

42

A28234

SLEEVE

- drive, 730 grove

1шт.

Выбрано товаров: 37
