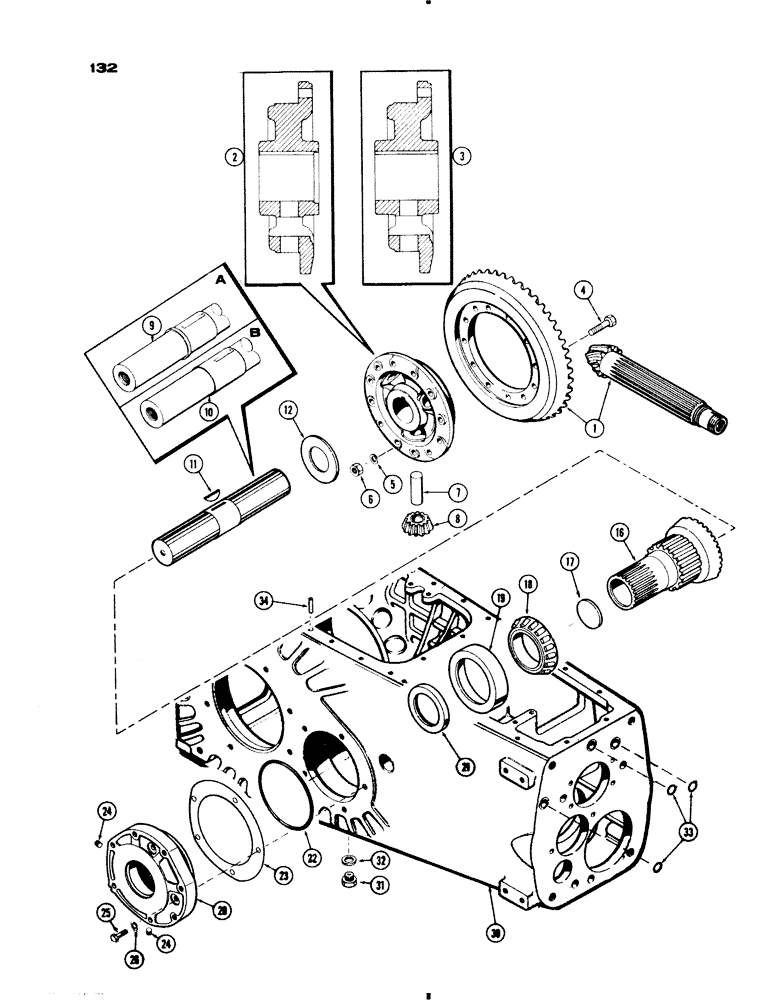

Запчасти Case IH 730 SERIES (132) - DIFFERENTIAL AND TRANSMISSION CASE (06) - POWER TRAIN

1

A25289

GEAR SET - (countershaft & ring gear) (9 & 48 teeth) (General Purpose)

1шт.

1

A25280

GEAR

SET - (countershaft & ring gear) (10 & 48 teeth) (4 Wheel, West. & Grove) (See A41609 for special Grove gear set)

1шт.

1

A25290

GEAR SET - (countershaft & ring gear) (11 & 48 teeth) (Hi-Clearance) (Order A25280)

1шт.

A41609

GEAR KIT - (Grove only) (for reduced ground speed) (incl. 1-6 tooth countershaft, 1-48 tooth ring gear, 1 ring gear spacer & 12-14-844 1/2 x 2-3/4" N.F. hex. bolts)

1шт.

2

A34165

WHEEL

- differential, center (hub 3-1/4" wide w/recess) (730 & 830 except Grove), Start Serial: 8265926

1шт.

3

A33551

WHEEL

- differential, center (hub 3-1/4" wide w/out recess) (730 & 830 except Grove) (Order 1-A34165 & 1-A34800), Serial Range: -8265926

1шт.

3

A26344

X

WHEEL - differential, center (730 Grove) (Hub 3-7/16" w/out recess) (Order 1-A34165, 1-A34800 & 1-A28182)

1шт.

4

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- (1/2 x 2-1/4" N.F. hex.)

12шт.

5

92-8

LOCK WASHER,1/2"

12шт.

6

25-118

NUT,1/2"-20, G5

- (1/2" N.F. hex.)

12шт.

7

A28180

PIN

SHAFT - pinion gear

3шт.

8

A32767

PINION

GEAR - pinion

3шт.

9

A34800

SHAFT

- differential (w/black finish) (See Inset A) (Replaces A34200), Start Serial: 8265926

1шт.

10

A32014

SHAFT

- differential (See inset B) (Order 1-A34165 & 1-A34800), Serial Range: -8265926

1шт.

11

126-51

WOODRUFF KEY,#TX, 3/8" x 2 3/4"

KEY - ctr. wheel (3/8 x 2-3/4" Woodruff)

1шт.

12

A28182

WASHER

- thrust, side gear

2шт.

16

A24557

GEAR

ASSY. - side (G.P., 4 Wheel & Grove) (15 spur teeth) (incl. Ref. 17)

2шт.

16

A24698

GEAR ASSY. - side (Hi-Cir.) (25 Spur teeth) (incl. Ref. 17)

2шт.

17

A24555

PLUG

- side gear (2-41/64" cup type)

1шт.

18

A28185

ROLLER BEARING,3.375" ID x 1.43"

CONE - brg., side gear

2шт.

19

A28184

BEARING CUP

CUP - brg., side gear

2шт.

20

A57659

CARRIER ASSY. - (Uses 4-1/4" O.D. oil seal) (Used all 730/830 except Grove), Includes: Ref. 21

2шт.

21

A57658

OIL SEAL

- oil (3-1/4 x 4-1/4 x3/8")

1шт.

20

A26345

CARRIER - (Uses 4-1/2" O.D. Oil Seal), (all 730/830 except Grove) (Order A57659)

2шт.

20

A8410

CARRIER - (Uses 4-1/2" O.D. Oil Seal) (Grove)

2шт.

21

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

- oil (3-1/4 x 4-1/2 x 15/32") (Used w/A26345 & A8410 Carriers)

2шт.

22

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O"RING - carrier (6-1/4 x 6-1/2 x 1/8")

2шт.

23

A28188

SHIM,.003" Thk

Carrier .003" Thk

1шт.

23

A28189

SHIM,.005" Thk

Carrier .005" Thk

1шт.

23

A28190

SHIM,.010" Thk

Carrier .010" Thk

1шт.

24

221-849

PLUG,Hex Soc, 1/8"-27

- carrier (1/8" P.T. sckt. hd)

4шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

26

92-8

LOCK WASHER,1/2"

4шт.

30

A57935

CASE - transmission (1st used trans. ser. no. 2262645)

1шт.

30

A57001

CASE - transmission (Replaces A32000 & A34290), Serial Range: -2262645

1шт.

31

A14280

PLUG

- drain, trans. case

1шт.

32

A58608

GASKET

- drain plug (Replaces A27927)

1шт.

33

A7075

GASKET

"O"RING - trans. case (7/8 x 1-1/8 x 1/8")

3шт.

34

A7077

DOWEL

- cover locating (1/2 x 1-3/8")

2шт.
