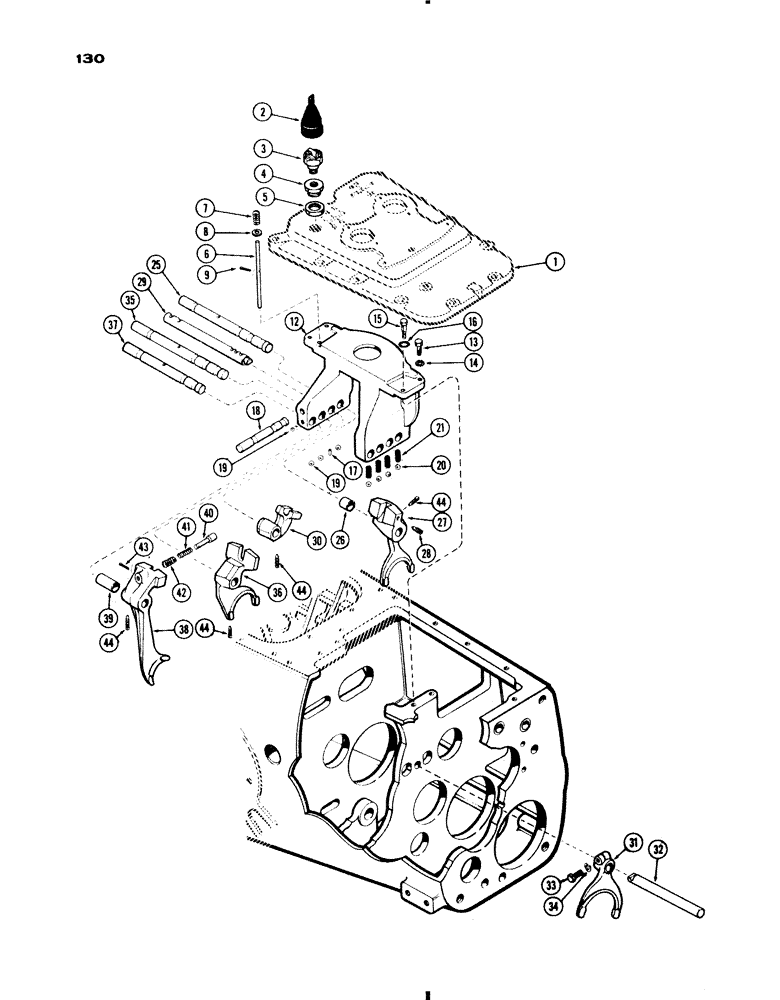

Запчасти Case IH 730 SERIES (130) - SHIFTER SHAFTS AND FORKS (06) - POWER TRAIN

1

A22697

COVER - shifter shafts

1шт.

2

A20991

BOOT

- safety switch

1шт.

3

A20990

SWITCH

- safety, neutral start

1шт.

4

A20998

NUT - switch adapter

1шт.

5

A20989

LOCK NUT

NUT - lock, switch adapter

1шт.

6

A22713

ROD - safety switch

1шт.

7

A22712

SPRING

- safety switch rod

1шт.

8

195-18

WASHER,1/4"

- (9/32 x 5/8 x 1/16")

1шт.

9

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

12

A32039

BRACKET - shifter shafts

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

3шт.

15

A32042

STEP BOLT

BOLT - brkt. (7/16" x 1-21/32" N.C. hex. spec.)

1шт.

16

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

17

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, , Rear range shaft guide 3/16" x 1/2", Slotted

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

18

A33450

SHAFT

- shift interlock (See A40808)

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

19

211-11

BALL,3/8" Dia

- interlock shaft (.) 3/8" Dia

4шт.

Part of SHIFTER KIT, P/N A40808

1шт.

20

211-13

BALL,1/2" Dia

- detent 1/2" Dia

4шт.

Part of SHIFTER KIT, P/N A40808

1шт.

21

A33749

SPRING

- shifter shaft detent ball

4шт.

Part of SHIFTER KIT, P/N A40808

1шт.

25

A22704

SHAFT

- shifter, 1st and 2nd

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

26

A34255

SPACER - 1st & 2nd shifter shaft (49/64 x 7/8 x 13/16"), Start Serial: 8275150

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

27

A33949

FORK

- shifter shaft, 1st and 2nd

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

28

178-805

SET SCREW,Hex Soc, 5/16"-18 x 5/8"

SCREW - stop (5/16 x 5/8" N.C. w/nylon insert)

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

29

A57413

SHAFT

- range shifter, rear (Replaces A32040)

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

30

A32041

BLOCK - range shifter shaft

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

31

A34657

FORK

- range shaft shifter

1шт.

32

A8590

SHAFT

- range shifter, front

1шт.

33

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- (7/16" x 1-1/4" N.F. hex.)

1шт.

34

92-7

LOCK WASHER,7/16"

1шт.

35

A22705

SHAFT - shifter, 3rd and 4th

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

36

A22702

FORK - shifter shaft, 3rd and 4th

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

37

A22706

SHAFT - shifter, reverse

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

38

A22703

FORK - reverse shifter shaft

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

39

A34257

SPACER - reverse shifter shaft (49/64 x 7/8 x 1-25/32", Start Serial: 8275150

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

40

A22711

PLUNGER

- reverse shift lock-out

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

41

A33044

SPRING

- plunger, inner

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

42

A22712

SPRING

- plunger, outer

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

43

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

Part of SHIFTER KIT, P/N A40808

1шт.

44

A7044

SET SCREW,3/8" - 16 x 7/8"

- shifter fork

4шт.

Part of SHIFTER KIT, P/N A40808

1шт.

A40808

SHIFTER KIT (not illust.) Includes: Refs., 12, 17 - 21, 25 - 30 and 35 - 44.

1шт.
