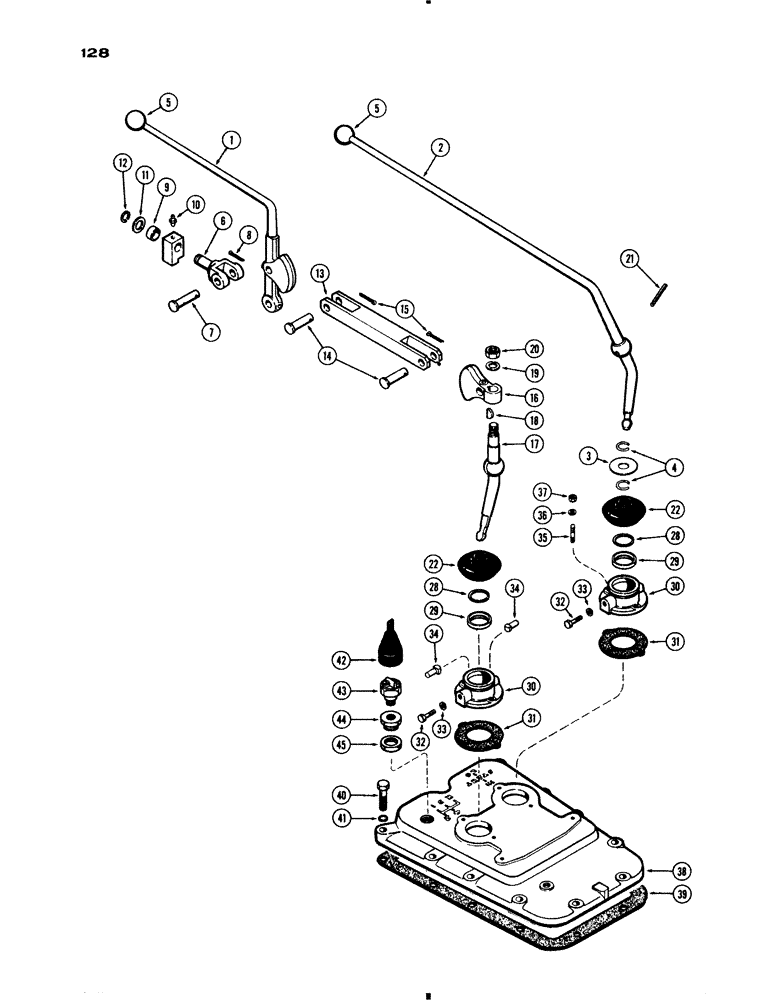

Запчасти Case IH 730 SERIES (128) - GEAR SHIFT, 730 GROVE (06) - POWER TRAIN

1

A33829

LEVER - gear shift, hand

1шт.

2

A34038

LEVER - range shift

1шт.

3

A34035

WASHER

- range shift lever

1шт.

4

A33531

SNAP RING,#75, Ext

RING - snap, , washer #75, Ext

2шт.

5

A23885

KNOB

- shift levers

2шт.

6

A32740

YOKE - gear shift

1шт.

7

A8380

PIN -, Serial Range: lever-yoke

1шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

9

A33828

SPACER - yoke (13/16 x 1 x 1/2")

1шт.

10

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease (1/4" dive, 67-1/2 deg.)

2шт.

11

A32741

WASHER - yoke stop

1шт.

12

A32742

RING - snap, washer retainer #75, .703", Ext

1шт.

13

A32746

BAR - shift transfer

1шт.

14

A32747

PIN - bar retaining

2шт.

15

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

16

A33827

PLATE - front lever cam.

1шт.

17

A8374

LEVER - gear shift

1шт.

18

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

Front lever #91, 1/4" x 3/4", HT

1шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

1шт.

21

A23069

AXLE PIN

PIN - pivot, range shaft

1шт.

22

A57876

COVER

CAP - dust (rubber) (replaces A26956)

2шт.

28

A26836

RING, SNAP

RING - snap, seat retainer

2шт.

29

A7923

SEAT

- shift lever, upper

2шт.

30

A7596

SOCKET

- shift levers

2шт.

31

A7598

GASKET

- socket

2шт.

32

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - pivot pin (3/8 x 1/2" N.C. hex)

2шт.

33

A22317

WASHER

- (25/64 x 9/16 x 3/64" copper)

2шт.

34

A26835

PIN

- pivot, gear shift lever

2шт.

35

A7597

STUD - socket (3/8" N.C. x 1-5/16")

4шт.

36

92-6

LOCK WASHER,3/8"

4шт.

37

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

4шт.

38

A22697

COVER - shifter shaft

1шт.

39

A7594

GASKET

- cover

1шт.

40

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cover Hex, 1/2"-13 x 1 1/2", G5, Full Thd

11шт.

41

92-8

LOCK WASHER,1/2"

1шт.

42

A20991

BOOT

- safety switch

1шт.

43

A20990

SWITCH

- safety, neutral start

1шт.

44

A20988

NUT - switch adapter

1шт.

45

A20989

LOCK NUT

NUT - lock, switch adatper

1шт.
