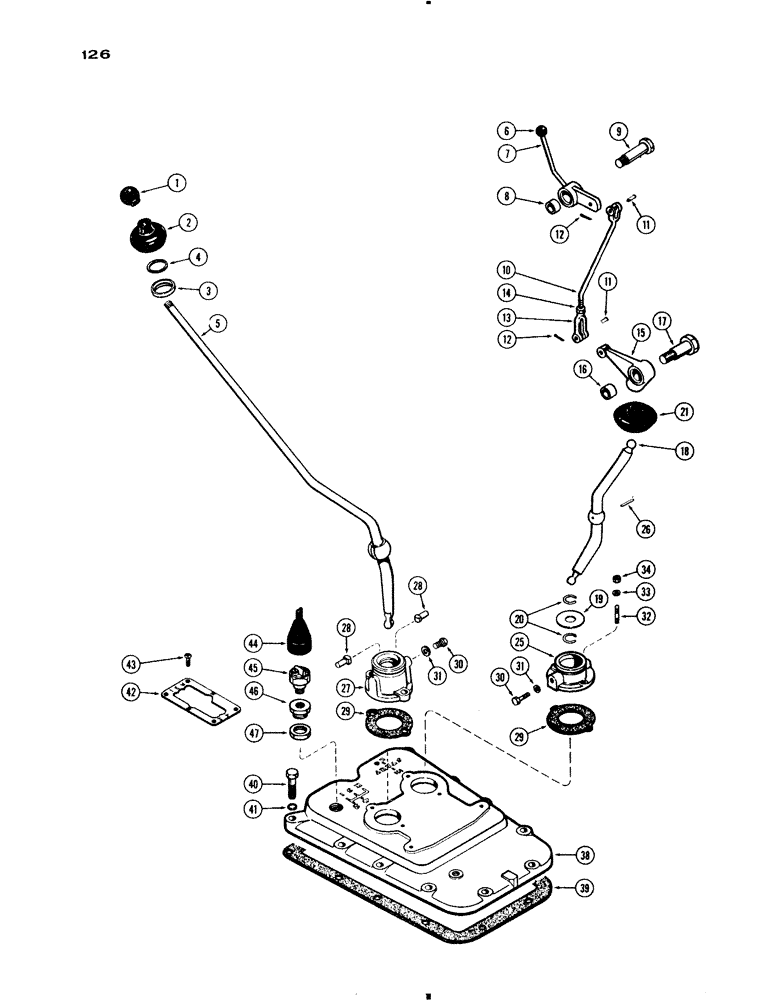

Запчасти Case IH 730 SERIES (126) - GEAR SHIFT, ALL 730 AND 830, EXCEPT GROVE (06) - POWER TRAIN

1

A23885

KNOB

- gear shift lever

1шт.

2

A57876

COVER

CAP - dust (rubber boot) (replaces A26956)

1шт.

3

A7923

SEAT

- shift lever, upper

1шт.

4

A26836

RING, SNAP

RING - snap, seat ret.

1шт.

5

A32501

LEVER

- gear shift

1шт.

6

A32845

KNOB - shift lever

1шт.

7

A32840

LEVER - range shift

1шт.

8

A32869

BEARING

- shift lever (7/8 x 1-1/16 x 1")

1шт.

9

A32849

STEP BOLT

BOLT - shift lever pivot (5/8 x 1-27/32" N.C., w/1-1/32" shoulder)

1шт.

10

A32847

ROD

- range shift link

1шт.

11

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

12

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

13

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod end

1шт.

14

25-115

NUT,5/16"-24, G5

- link rod (5/16" NF hex)

1шт.

15

A32844

SCREW

BELLCRANK - range shift

1шт.

16

A32870

BEARING

- bellcrank (3/4 x 15/16 x 1-1/4")

1шт.

17

A32871

BOLT

- bellcrank pivot (5/8 x 2-1/4 N.C. w/1-9/32" shoulder)

1шт.

18

A34829

LEVER

- range shift, Start Serial: 8315583

1шт.

18

A34037

LEVER - range shift, Serial Range: -8315583

1шт.

19

A34035

WASHER

- range shift lever

1шт.

20

A33531

SNAP RING,#75, Ext

RING - snap, , washer #75, Ext

2шт.

21

A57876

COVER

CAP - dust (rubber boot) (replaces A26956)

1шт.

25

A7596

SOCKET

- range shift lever

1шт.

26

A23069

AXLE PIN

PIN - pivot, range shaft

1шт.

27

A32500

SOCKET

- gear shift lever

1шт.

28

A26835

PIN

- pivot, gear shift lever

2шт.

29

A7598

GASKET

- socket

2шт.

30

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - pivot pin (3/8 x 1/2" N.C. hex.)

2шт.

31

A22317

WASHER

- (25/64 x 9/16 x 3/64" copper)

2шт.

32

A7597

STUD - socket (3/8" N.C/N.F. x 1-5/16")

4шт.

33

92-6

LOCK WASHER,3/8"

4шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

4шт.

38

A22697

COVER - shifter shafts

1шт.

39

A7594

GASKET

- cover

1шт.

40

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cover Hex, 1/2"-13 x 1 1/2", G5, Full Thd

9шт.

40

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- cover (1/2 x 1-3/4" N.C. hex.)

2шт.

41

92-8

LOCK WASHER,1/2"

11шт.

42

A32502

INDICATOR - gear shift pattern

1шт.

43

187-114

SCREW - indicator (1/4 x 3/8" N.C. pan hd.)

4шт.

44

A20991

BOOT

- safety switch

1шт.

45

A20990

SWITCH

- safety, neutral start

1шт.

46

A20988

NUT - switch adapter

1шт.

47

A20989

LOCK NUT

NUT - lock, switch adapter

1шт.
