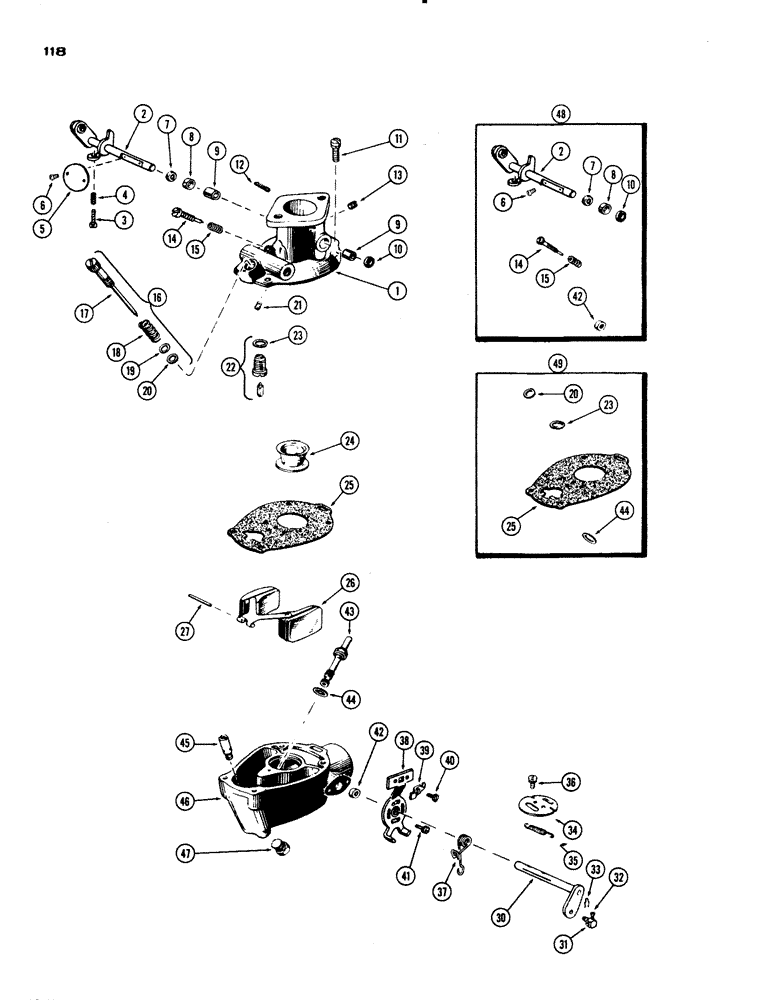

Запчасти Case IH 730 SERIES (118) - A20813 CARBURETOR, 251 AND 284 SPARK IGINITION ENGINES, USED PRIOR TO TRAC. S/N 8201146 (03) - FUEL SYSTEM

A20813

CARBURETOR

(Marvel-Schebler Model TSX-785) (incl. ref. 1 - 47)

1шт.

1

B51908

BODY ASSY. - throttle (incl. ref. 2 - 10)

1шт.

2

B51665

SHAFT ASSY. - throttle (incl. ref. 3 & 4)

1шт.

Part of repair kit P/N B51934

1шт.

3

B51680

SCREW - throttle stop

1шт.

4

B51742

SPRING

- throttle stop screw

1шт.

5

B51668

FLY - throttle (22 Degree)

1шт.

6

B51702

SCREW,#6 - 32 x 1/4"

- throttle fly

2шт.

Part of repair kit P/N B51934

1шт.

7

B51851

RETAINER

- packing

1шт.

Part of repair kit P/N B51934

1шт.

8

B51806

PACKING

- throttle shaft

1шт.

Part of repair kit P/N B51934

1шт.

9

B51858

BUSHING

- throttle shaft

2шт.

10

B51850

RETAINER CUP

CUP - throttle shaft

1шт.

Part of repair kit P/N B51934

1шт.

11

B51684

SCREW - throttle, Serial Range: body-bowl

4шт.

12

B51747

SPRING - throttle stop

1шт.

13

B51696

PLUG - 5/16" N.F. headless

1шт.

14

B51789

NEEDLE

- idle adjusting

1шт.

Part of repair kit P/N B51934

1шт.

15

B51744

SPRING

- idle needle

1шт.

Part of repair kit P/N B51934

1шт.

16

B51796

NEEDLE

ASSY. - power adjusting (incl. ref. 17 - 20)

1шт.

17

B51798

NEEDLE

- power adjusting

1шт.

18

B51732

VALVE SPRING

SPRING - adjusting needle

1шт.

19

B51870

WASHER

- adjusting needle

1шт.

20

B51723

GASKET

- adjusting needle

1шт.

21

B51828

JET

- idle

1шт.

22

B51914

VALVE

FLOAT VALVE ASSY. (incl. ref. 23)

1шт.

23

B51703

GASKET

- seat, float valve

1шт.

24

B51817

VENTURI

- (1-1/16" throat)

1шт.

25

B51704

GASKET

- throttle, Serial Range: body-bowl

1шт.

26

B51773

FLOAT

ASSY.

1шт.

27

B51778

SHAFT

- float

1шт.

30

B51750

SHAFT ASSY. - choke (incl. ref. 31 - 33)

1шт.

31

B51764

PIVOT

SWIVEL - choke rod

1шт.

32

B51698

SCREW,0.164" - 32 x 5/16"

- choke swivel

1шт.

33

B51877

SPLIT PIN

PIN - cotter, swivel

1шт.

34

B51762

VALVE

FLY ASSY. - choke

1шт.

35

B51743

SPRING

- choke fly flapper

1шт.

36

B51702

SCREW,#6 - 32 x 1/4"

- choke fly

2шт.

37

B51733

SPRING - choke return

1шт.

38

B51768

BRACKET ASSY. - choke (incl. ref. 39 & 40)

1шт.

39

B51765

CLIP

- choke rod

1шт.

40

B51695

SCREW -, Serial Range: clip-bracket

1шт.

41

B51686

SCREW - choke bracket

2шт.

42

B51802

PACKING

- choke shaft

1шт.

Part of repair kit P/N B51934

1шт.

43

B51822

NOZZLE - main (incl. ref. 44)

1шт.

44

B51724

GASKET

- nozzle

1шт.

45

B51781

SEAT - power adjusting needle

1шт.

46

NSS

NOT SOLD SEPARAT

BODY ASSY. - (Order A20813)

1шт.

47

B51887

PLUG

- drain

1шт.

48

B51934

KIT

REPAIR KIT - (incl. ref. 2, 6, 7, 8, 10, 14, 15 and 42)

1шт.

49

B51725

X

GASKET KIT (incl. ref. 20, 23, 25 and 44)

1шт.
