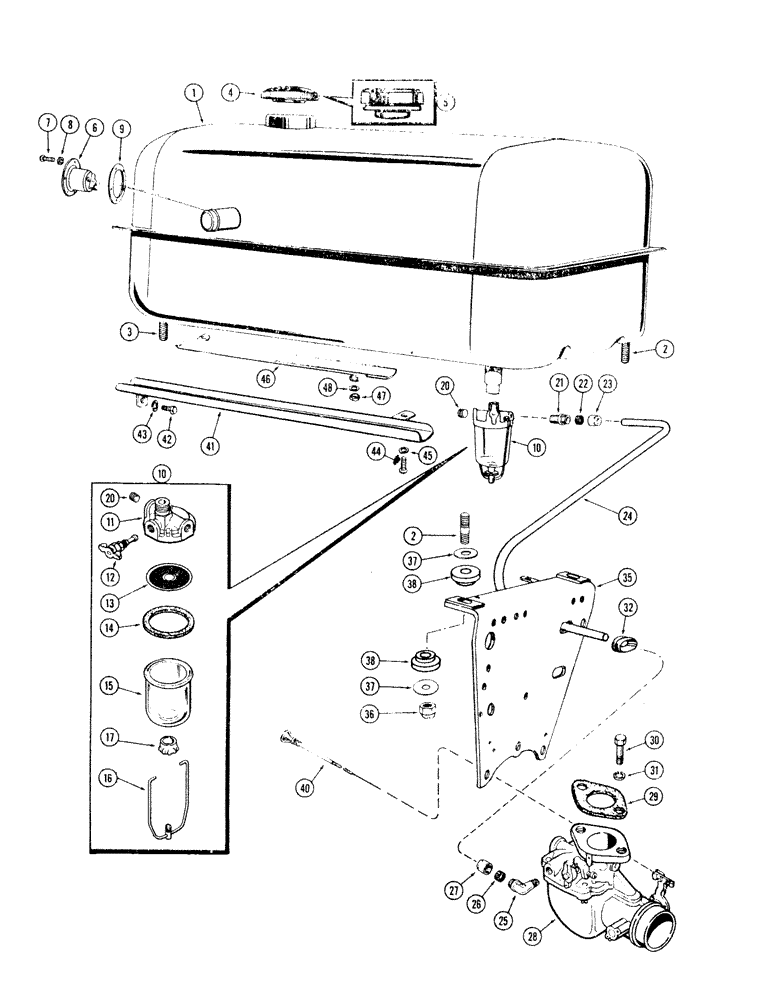

Запчасти Case IH 730 SERIES (114) - FUEL TANK, 251 AND 284 SPARK IGNITION ENGINES, 1ST USED TRAC. S/N 8201146 (03) - FUEL SYSTEM

1

A24220

TANK - fuel (Has 2-11/16" filler opening) Order A33601 tank and A32119 cap

1шт.

1

A33601

TANK - fuel (Has 1-7/8" filler opening)

2шт.

2

A22342

STUD - front tank mounting (3/8 x 2-11/16")

2шт.

3

A8373

STUD

- rear, tank mounting (3/8 x 3")

1шт.

4

A33558

CAP

- tank filler (3-1/2" O.D. for A24220 tank)

1шт.

4

A32119

CAP

- tank filler (2-7/8" O.D. for A33601 tank)

1шт.

5

A32120

CAP

- locking type (includes keys) For A33601 tank only

1шт.

6

A23481

SENDER UNIT

SENDER - fuel gauge

1шт.

7

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10-32 x 3/8" rd. hd.

5шт.

8

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

9

A11822

GASKET

-, Serial Range: sender-tank

1шт.

10

A26615

STRAINER ELEMENT

STRAINER ASSY. - fuel (incl. ref. 11 - 17)

1шт.

11

A11215

BODY

- strainer

1шт.

12

A11205

VALVE

- shut-off

1шт.

13

A11202

SCREEN

- strainer

1шт.

14

A11203

GASKET

- bowl

1шт.

15

A11204

BOWL

- glass

1шт.

16

A11206

BAIL

- bowl hanger

1шт.

17

A11210

ADJUSTER

NUT - cup, bail

1шт.

20

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - fuel opening, 1/8" P.T. slotted

1шт.

21

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - tube to strainer, 5/16" tube x 1/8" P.T. (incl. ref. 22 & 23)

1шт.

22

222-103

SLEEVE,5/16" Tube

1шт.

23

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

24

A24323

TUBE - fuel, Serial Range: strainer-carburetor

1шт.

25

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

- tube to carb., 5/16" tube x 1/8" P.T. (incl. ref. 26 & 27)

1шт.

26

222-103

SLEEVE,5/16" Tube

1шт.

27

222-113

TUBE NUT,9/16"-24

NUT - 5/16" nut

1шт.

28

A24305

CARBURETOR

- (Repairs Figure 116)

1шт.

29

A26434

GASKET

-, Serial Range: carb.-manifold

1шт.

30

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

A7808

GROMMET

-, Serial Range: tube-support

1шт.

35

A11405

SUPPORT - front, fuel tank

1шт.

36

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C. hex

3шт.

37

F62051

WASHER

- mounting stud (13/32 x 1-1/2" x 12 ga.)

6шт.

38

A7336

CUSHION

- tank mounting

6шт.

40

A24253

ROD - choke

1шт.

41

A20411

CONDUIT - R.H., electrical harness (incl. ref. 42)

1шт.

42

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

44

175-432

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" N.C. truss hd. Philips

1шт.

45

92-5

LOCK WASHER,5/16"

1шт.

46

A20175

CONDUIT - L.H., electrical harness

1шт.

47

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

48

92-5

LOCK WASHER,5/16"

2шт.
