Запчасти Case IH 730 SERIES (062) - FUEL INJECTION PUMP AND DRIVE, 267 AND 301 DIESEL ENGINES (03) - FUEL SYSTEM

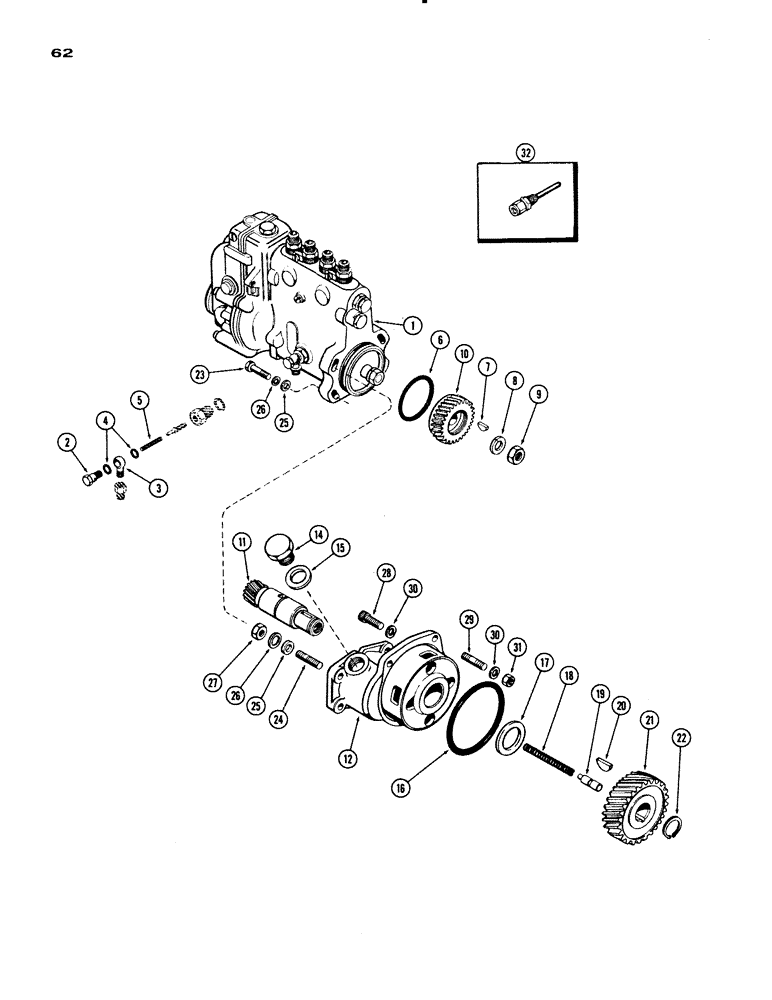

Схема запчастей Case IH 730 SERIES - (062) - FUEL INJECTION PUMP AND DRIVE, 267 AND 301 DIESEL ENGINES (03) - FUEL SYSTEM
26
21
27
16
8
2
17
25
12
20
22
29
4
18
3
26
9
23
11
6
25
10
32
5
14
30
1
24
30
28
7
31
19
15

Артикул

Название

Примечание

Количество

1

A21545

X

PUMP ASSY. (730w/std. clutch) Order A22634 Robert Bosch #PES-4A-80B-420LS-401/11 (incl. ref. 2 - 9)

1шт.

When replacing old model pump with new pump from Figure 54, also order A21786 lube tube, 221-1052 reducer, 222-42 elbow, 222-102 sleeve and 222-112 nut.

1шт.

1

A22634

PUMP ASSY. - 1700 RPM (730 w.std. clutch) Robert Bosch #PES-4A-80C-420LS-2054 (incl. ref. 2 - 9)

1шт.

1

A21549

PUMP ASSY. (730 w/Case-O-Matic) Order A22635 Robert Bosch #PES-4A-80B-420LS-401/11 (incl. ref. 2 - 9)

1шт.

When replacing old model pump with new pump from Figure 54, also order A21786 lube tube, 221-1052 reducer, 222-42 elbow, 222-102 sleeve and 222-112 nut.

1шт.

1

A22635

PUMP

ASSY. - 1900 RPM (730 w/Case-O-Matic) Robert Bosch #PES-4A-80C-420LS-2054 (incl. ref. 2 - 9)

1шт.

1

A21547

X

PUMP ASSY. (830 w/std. clutch) Order A22632 Robert Bosch #PES-4A-85B-420LS-401/11 (incl. ref. 2 - 9)

1шт.

When replacing old model pump with new pump from Figure 54, also order A21786 lube tube, 221-1052 reducer, 222-42 elbow, 222-102 sleeve and 222-112 nut.

1шт.

1

A22632

PUMP ASSY. - 1700 RPM (830 w/std. clutch) Robert Bosch #PES-4A-85C-420LS-2054 (incl. ref. 2 - 9)

1шт.

1

A20883

X

PUMP ASSY. (830 w/Case-O-Matic) Order A22633 Robert Bosch #PES-4A-85B-420LS-401/11 (incl. ref. 2 - 9)

1шт.

When replacing old model pump with new pump from Figure 54, also order A21786 lube tube, 221-1052 reducer, 222-42 elbow, 222-102 sleeve and 222-112 nut.

1шт.

1

A22633

PUMP ASSY. - 1900 RPM (830 w/Case-O-Matic) Robert Bosch #PES-4A-85C-420LS-2054 (incl. ref. 2 - 9)

1шт.

2

A25192

BANJO BOLT

BOLT - lube oil fitting

1шт.

3

A25191

FITTING

- lube tube

1шт.

4

A22381

WASHER

- fitting bolt

2шт.

5

A25190

SPRING

- oil lube port

1шт.

6

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - pump to housing

1шт.

7

A20933

KEY

- drive gear

1шт.

8

A25188

WASHER

- lock

1шт.

9

A25189

NUT -, Serial Range: gear-shaft

1шт.

10

A21139

GEAR

- pump drive

1шт.

11

A20622

GEAR

PINION - pump drive gear

1шт.

12

A21136

HOUSING ASSY. - drive pinion

1шт.

14

A21140

PLUG

- timing hole

1шт.

15

A27947

X

GASKET - plug, timing hole

1шт.

16

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - housing seal

1шт.

17

A27864

WASHER

- thrust

1шт.

18

P0027853A

LARGE PIN

- plunger tension

1шт.

19

A27852

PLUNGER

- pinion thrust

1шт.

20

126-66

WOODRUFF KEY

KEY - drive gear (Woodruff #141)

1шт.

21

A20899

GEAR WHEEL

GEAR - drive, injection pump

1шт.

22

A27576

SNAP RING,#98, Ext

RING, snap, , drive gear #98, Ext

1шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- pump mounting, 3/8 x 1-1/2" N.C. hex

2шт.

24

A20664

STUD - pump mounting (3/8 x 1-7/8")

2шт.

25

195-25

WASHER,3/8"

- flat (13/32 x 13/16 x 1/16")

4шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

28

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

SCREW - cap, 3/8 x 1-1/4" N.C. socket hd.

1шт.

29

A26554

STUD - housing (3/8 x 1-9/16")

1шт.

30

92-6

LOCK WASHER,3/8"

3шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

32

A20604

FITTING - lube tube (w/early model pumps)

1шт.

Выбрано товаров: 43
