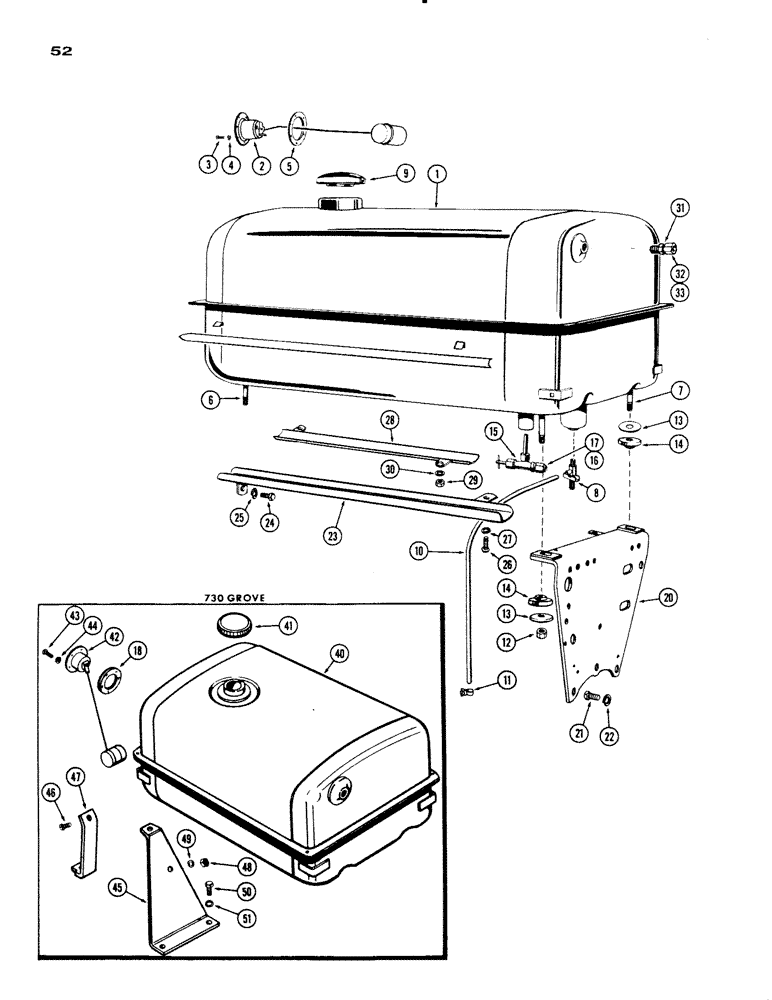

Запчасти Case IH 730 SERIES (052) - FUEL TANK, 267 AND 301 DIESEL ENGINES, 1ST USED TRAC. S/N 8201146, AND FUEL TANK, 267 DIESEL GROVE (03) - FUEL SYSTEM

1

A24210

TANK - fuel (Has 2-11/16" filler opening) Can use A33602 tank by ordering A32119 cap also (incl. ref. 2 - 8)

1шт.

1

A33602

TANK - fuel (Has 1-7/8" filler opening (incl. ref. 2 - 8)

1шт.

2

A23481

SENDER UNIT

SENDER - fuel gauge

1шт.

3

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10-32 x 3/8" rd. hd.

5шт.

4

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

5

A11822

GASKET

-, Serial Range: sender-tank

1шт.

6

A24203

STUD - rear, tank mounting (3/8 x 3")

1шт.

7

A22342

STUD - front, tank mounting

2шт.

8

217-107

VALVE

- drain, water trap

1шт.

9

A33558

CAP

- tank filler (3-1/2" O.D. for A24210 tank)

1шт.

9

A32119

CAP

- tank filler (2-7/8" O.D. for A33602 tank)

1шт.

10

A22987

HOSE - drain valve

1шт.

11

A10852

CLIP - hose (w/Case-O-Matic)

1шт.

11

A27042

CLIP - hose (w/std. clutch)

1шт.

12

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, tank stud (3/8" N.C.)

3шт.

13

F62051

WASHER

- stud (13/32 x 1-1/2" x #12 ga.)

6шт.

14

A7336

CUSHION

- tank mounting

6шт.

15

A7313

VALVE

- fuel shut-off (incl. ref. 16 & 17)

1шт.

16

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

17

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

20

A11405

SUPPORT - front, fuel tank

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

22

92-8

LOCK WASHER,1/2"

3шт.

23

A20175

CONDUIT - L.H., electrical harness

1шт.

24

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

175-432

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" N.C. truss hd. Phillips

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

A20411

CONDUIT - R.H. electrical harness

1шт.

29

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - return tube, 5/16" tube x 1/4" P.T. (incl. ref. 32 & 33)

1шт.

32

222-103

SLEEVE,5/16" Tube

1шт.

33

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

40

A36561

TANK

- fuel, (267) diesel, Grove

1шт.

41

A32119

CAP

- fuel tank filler, (267) diesel, Grove

1шт.

42

A23480

SENDER UNIT

SENDER - fuel gauge, tank, (267) diesel, Grove

1шт.

43

175-96

SCREW - #10-32 x 7/16" rd. hd., fuel tank, (267) diesel. Grove

5шт.

44

92-3

LOCK WASHER,#10

WASHER, LOCK, , Fuel tank, (267) Diesel, Grove #10

5шт.

45

A23221

SUPPORT - rear, fuel tank, (267) diesel, Grove

1шт.

46

A23222

BRACE - rear support, fuel tank, (267) diesel, Grove

1шт.

47

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- brace, 3/8 x 1" N.F. hex, fuel tank, (267) diesel, Grove

1шт.

48

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.C. hex, fuel tank, (267) diesel, Grove

1шт.

49

92-6

LOCK WASHER,3/8"

fuel tank, (267) diesel, Grove 3/8"

1шт.

50

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Fuel tank, (267) Diesel, Grove Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

51

92-8

LOCK WASHER,1/2"

fuel tank, (267) diesel, Grove 1/2"

2шт.
