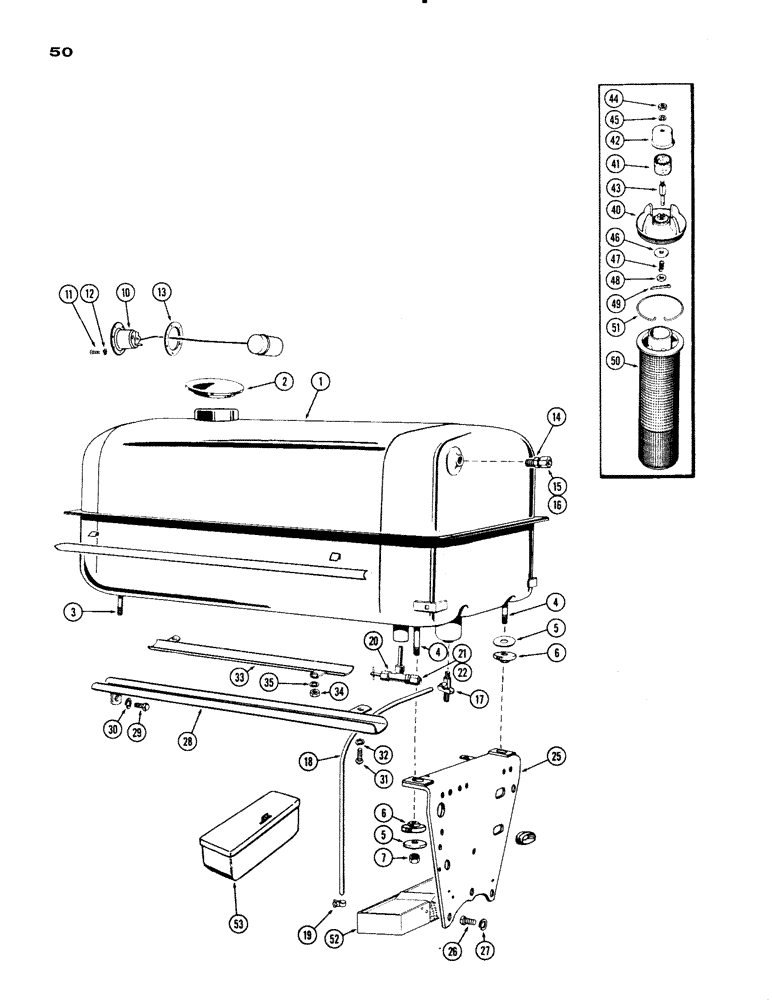

Запчасти Case IH 730 SERIES (050) - FUEL TANK, 267 AND 301 DIESEL ENGINES, USED PRIOR TO TRAC. S/N 8201146 (03) - FUEL SYSTEM

1

A22449

FUEL TANK

TANK - fuel, Serial Range: 8173401-8201146

1шт.

1

A21401

TANK

- fuel Order A22449 and A33558 cap, Serial Range: -8173401

1шт.

2

A33558

CAP

- fuel (Replaces A22451)

1шт.

3

A22342

STUD - mounting, tank rear (3/8 x 2-11/16")

1шт.

4

A8373

STUD

- mounting, tank front (3/8 x 2-7/16")

2шт.

5

F62051

WASHER

- mounting stud (13/32 x 1-1/2" x 12 ga.)

6шт.

6

A7336

CUSHION

- tank mounting

6шт.

7

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" N.C.

3шт.

10

A23480

SENDER UNIT

SENDER - fuel gauge (Replaces A21438)

1шт.

11

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- mach., #10-32 x 3/8" rd. hd.

5шт.

12

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

13

A11822

GASKET

-, Serial Range: sender-tank

1шт.

14

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - return tube (5/16" O.D. x 1/4" P.T.) (incl. ref. 15 & 16)

1шт.

15

222-103

SLEEVE,5/16" Tube

1шт.

16

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

17

217-107

VALVE

- drain, fuel tank water trap

1шт.

18

A22987

HOSE - drain

1шт.

19

A27042

CLIP - hose

1шт.

20

A7313

VALVE

- fuel shut-off (incl. ref. 21 - 22)

1шт.

21

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

22

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

25

A11405

SUPPORT - front, fuel tank

1шт.

26

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

27

92-8

LOCK WASHER,1/2"

3шт.

28

A20175

CONDUIT - L.H., electric harness

1шт.

29

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

175-432

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" N.C. truss hd. Phillips

1шт.

32

92-5

LOCK WASHER,5/16"

1шт.

33

A20411

CONDUIT - R.H., electrical harness

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

35

92-5

LOCK WASHER,5/16"

2шт.

40

A28673

CAP

ASSY. - fuel tank, filler, breather and strainer (incl. ref. 41 - 49), Serial Range: -8173401

1шт.

41

A27961

ELEMENT

- breather, filler cap, and strainer, Serial Range: -8173401

1шт.

42

A27964

COVER

- breather, filler cap, and strainer, Serial Range: -8173401

1шт.

43

A27962

STUD

- breather cover, filler cap, and strainer, Serial Range: -8173401

1шт.

44

129-37

NUT,#10-32

Filler cap, breather and strainer #10-32, Serial Range: -8173401

1шт.

45

92-3

LOCK WASHER,#10

WASHER, LOCK, , Filler cap, breather and strainer #10, Serial Range: -8173401

1шт.

46

A27963

BAFFLE

- breather, filler cap, and strainer, Serial Range: -8173401

1шт.

47

A27815

SPRING

- baffle, filler cap, breather and strainer, Serial Range: -8173401

1шт.

48

A26854

GASKET

WASHER - spring retaining, filler cap, breather and strainer, Serial Range: -8173401

1шт.

49

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Filler cap, breather and strainer 1/16" x 1/2", Serial Range: -8173401

1шт.

50

A7306

STRAINER - fuel, filler cap, and breather, Serial Range: -8173401

1шт.

51

A27960

RING - retainer, fuel strainer, filler cap, and breather, Serial Range: -8173401

1шт.

52

A22993

TOOL BOX, Serial Range: -8173401

1шт.

53

A11099

TOOL

BOX, Start Serial: 8173401

1шт.
