Запчасти Case IH 730 SERIES (108) - ENGINE GASKET KITS, MODEL 730, 251 SPARK IGNITION ENGINE (02) - ENGINE

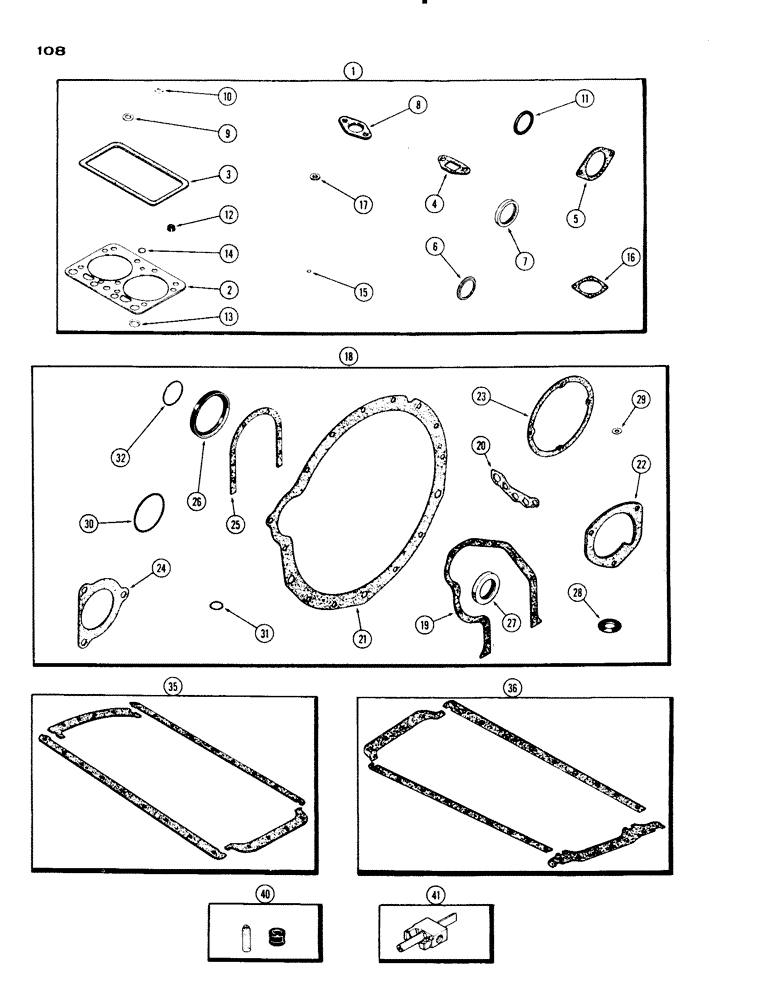

Схема запчастей Case IH 730 SERIES - (108) - ENGINE GASKET KITS, MODEL 730, 251 SPARK IGNITION ENGINE (02) - ENGINE
8
10
1
25
3
4
6
18
23
14
16
35
15
17
11
40
2
20
31
9
36
22
7
5
29
41
27
24
13
26
32
12
28
21
30
19

Артикул

Название

Примечание

Количество

1

A40341

KIT

VALVE GRIND KIT (incl. ref. 2 - 17)

1шт.

2

A23118

GASKET

- cylinder head

2шт.

3

A27972

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

4

A27905

GASKET

- water manifold

1шт.

5

A28113

GASKET

- thermostat housing

1шт.

6

A27909

GASKET

- exhaust

4шт.

7

A7363

MANIFOLD GASKET

- intake manifold

2шт.

8

A26434

GASKET

- carburetor

1шт.

9

A23685

GASKET

- breather tube

2шт.

10

A23684

GASKET

GASKET - cover stud

4шт.

11

A30954

GASKET

SEAL - thermostat

1шт.

12

A10726

SEAL

SHIELD - oil, intake valve stem (See ref. 40 & 41)

4шт.

13

A7669

RING

- cyl. head water passage

4шт.

14

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. head water passage

2шт.

15

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, rocker shaft

2шт.

16

A27539

GASKET

- carburetor elbow (L.P.G.)

1шт.

17

A34133

GASKET

- breather tube

2шт.

18

A40349

KIT

CYLINDER BLOCK KIT (incl. ref. 19 - 32)

1шт.

19

A33018

GASKET

- timing gear cover

1шт.

20

A21084

GASKET

- oil filter base

1шт.

21

A11649

GASKET

- cyl. block (w/Case-O-Matic)

1шт.

22

M1127885

STEM

- water pump

1шт.

23

A27867

GASKET

- timing gear cap

1шт.

24

A27933

GASKET

- starting motor

1шт.

25

A32830

GASKET

- rear oil seal retainer

1шт.

26

A23085

OIL SEAL

- oil, crankshaft rear

1шт.

Not in kit.

1шт.

27

A23433

OIL SEAL

- oil, crankshaft front

1шт.

Not in kit.

1шт.

28

A7292

SEAL

- oil, governor shaft

1шт.

29

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump

2шт.

30

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - hyd. pump hole cover

1шт.

31

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor

1шт.

32

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (w/std. clutch)

1шт.

35

A7616

GASKET KIT

GASKET SET - oil pan (w/std. clutch)

1шт.

36

A20171

GASKET

SET - oil pan (w/Case-O-Matic)

1шт.

40

M20614

SEAL KIT

SEAL KIT - intake valve (Set of 2)

2шт.

41

M20617

TOOL

- installation, valve seal

1шт.

Выбрано товаров: 38
