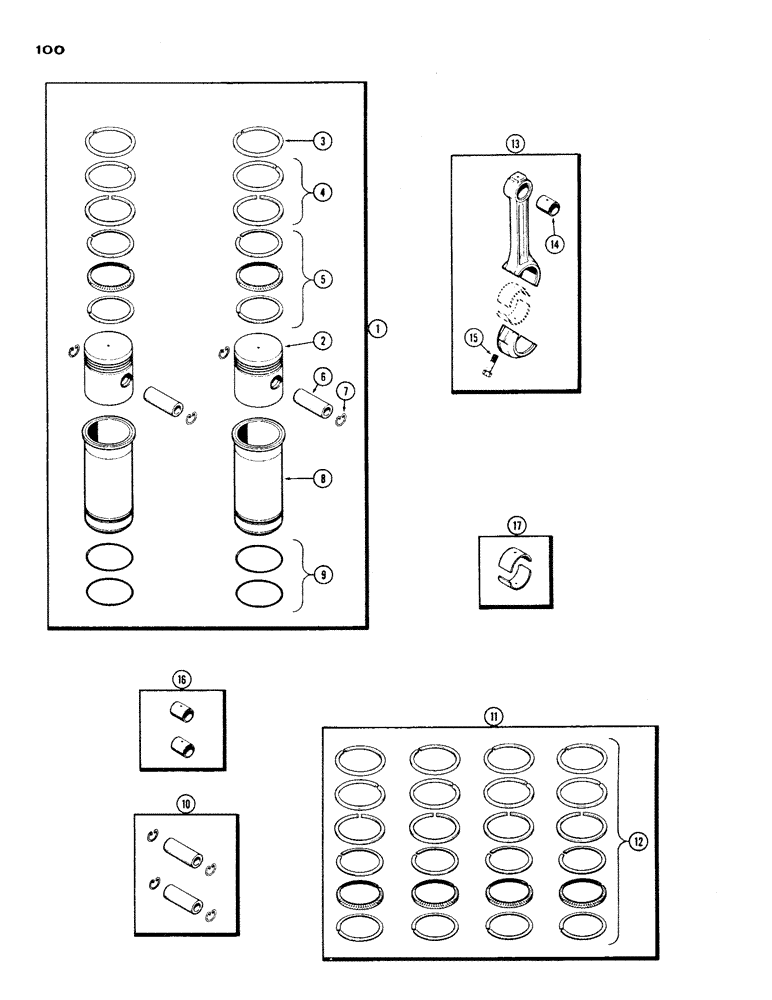

Запчасти Case IH 730 SERIES (100) - PISTON ASSEMBLY AND CONNECTING RODS, MODEL 730, 251 SPARK IGNITION ENGINE (02) - ENGINE

1

A40356

KIT

PISTON & SLEEVE KIT (Set of 2) (incl. ref. 2 - 9)

2шт.

2

A33536

PISTON

- cylinder

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 11 or 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd & 3rd groove (Order ref. 11 or 12)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Order ref. 11 or 12)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

2шт.

7

A27844

RING

- retaining, piston pin (See ref. 10)

4шт.

8

A23657

SLEEVE

- piston, cylinder liner

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve packing (4-1/4" I.D.)

4шт.

10

A21723

PIN

KIT - piston (Set of 2 w/ret. rings)

2шт.

11

A8095

KIT

RING KIT - re-ring (Set of 4) (incl. ref. 12)

1шт.

12

A40366

SET OF RINGS

RING KIT - re-ring (Set of 1)

4шт.

13

A28657

ROD, CONNECTING

ROD ASSY. - connecting (incl. ref. 14 & 15)

4шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 16)

1шт.

15

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- cap

2шт.

16

A21721

BUSHING

KIT - conn. rod (Set of 2)

2шт.

17

A20393

LINING

LINER SET - conn. rod brg. (Std.)

4шт.

17

A20569

JOURNAL

LINER SET - conn. rod brg. (.002" undersize)

4шт.

17

A20571

BEARING LINER

LINER SET - ocnn. rod brg. (.010" undersize)

4шт.

17

A20573

KIT

LINER SET - conn. rod brg. (.020" undersize)

4шт.

17

A20576

LINING

LINER SET - conn. rod brg. (.030" undersize)

4шт.
