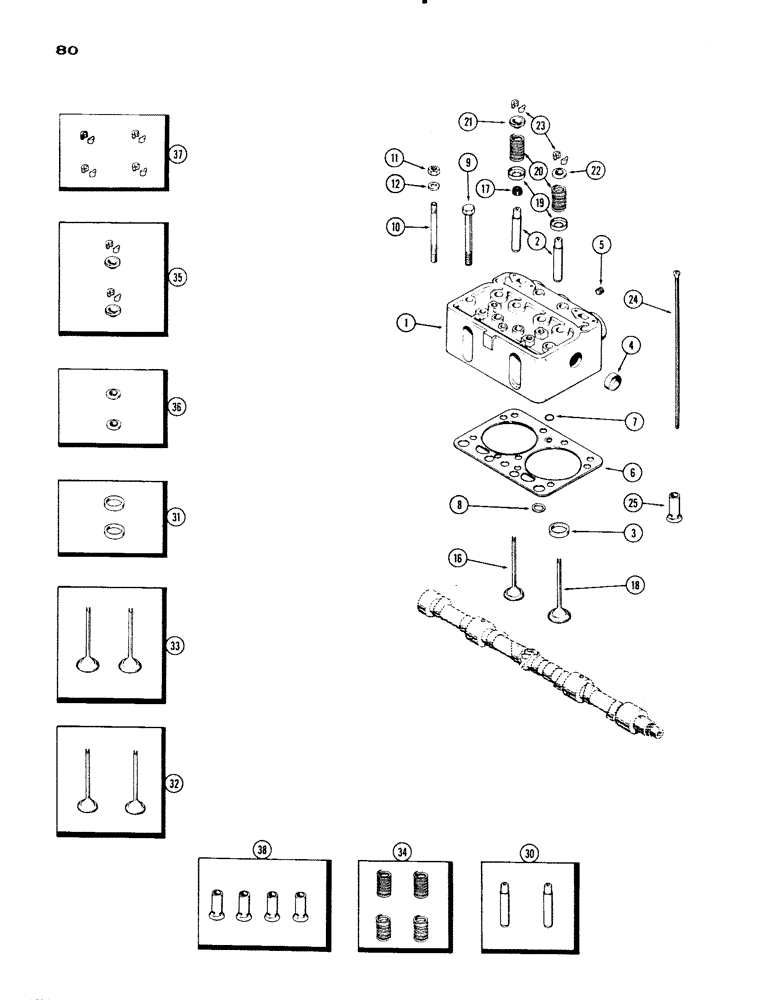

Запчасти Case IH 730 SERIES (080) - CYLINDER HEAD AND VALVES, MODEL 730, 251 SPARK IGNITION ENGINE (02) - ENGINE

1

A24544

HEAD (CYLINDER)

HEAD ASSY. - cylinder (gasoline) Casting No. A24543 Can use A21636 casting No. A21357 (incl. ref. 2 - 5)

2шт.

1

A21511

HEAD

ASSY. - cylinder (L.P.G.) Casting No. A21356 (incl. ref. 2 - 5)

2шт.

2

NSS

NOT SOLD SEPARAT

GUIDE - valve (Order ref. 30)

4шт.

3

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 31)

2шт.

4

A34124

PLUG,Cup, 1 5/8", Stainless

- cylinder head (1-41/64" cup type)

2шт.

5

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

2шт.

6

A23118

GASKET

- cylinder head (See A40341 Figure 108)

2шт.

7

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32")

2шт.

8

A7669

RING

- water passage (7/8 x 1-3/32 x 5/64")

4шт.

9

A23355

BOLT

- head to block (9/16" N.C. hex) See ref. 10

18шт.

10

A21058

BOLT

- head to block (early production)

18шт.

11

25-119

NUT,9/16"-18, G5

- stud, 9/16" N.F. hex

18шт.

12

A27870

WASHER

- stud (19/32 x 15/16" x #11 ga.)

18шт.

16

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 32)

4шт.

17

A10726

SEAL

SHIELD - oil, intake valve

4шт.

18

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 33)

4шт.

19

A27866

SEAT

- valve spring

8шт.

20

NSS

NOT SOLD SEPARAT

SPRING - valve (Order ref. 34)

8шт.

21

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 35)

4шт.

22

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve spring (Order ref. 36)

4шт.

23

NSS

NOT SOLD SEPARAT

LOCK - spring retainer (Order ref. 37)

16шт.

24

A21060

ROD

- push

8шт.

25

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 38)

8шт.

30

A21673

GUIDE

KIT - valve (Set of 2)

4шт.

31

A33453

KIT

INSERT KIT - exhaust valve (Set of 2)

2шт.

32

A33455

VALVE

KIT - intake (Set of 2) Replaces A21705

2шт.

33

A33456

VALVE, ENG EXHAUST,

VALVE KIT - exhaust (Set of 2) Replaces A21711

2шт.

34

A21694

SPRING

KIT - valves (Set of 4)

2шт.

35

A21657

LOCK

RETAINER KIT - intake valve spring (Set of 2 retainers & 4 keepers)

2шт.

36

A24993

CAP

ROTO CAP KIT - exhaust valve (Set of 2)

2шт.

37

A40352

LOCK

KIT - valve spring (Set of 8)

2шт.

38

A21653

KIT

LIFTER KIT - push rod (Set of 4)

2шт.
