(030) - CYLINDER BLOCK ASSEMBLY, MODEL 730, 267 DIESEL ENGINE, CASTING NO. A21601

Запчасти Case IH 730 SERIES (030) - CYLINDER BLOCK ASSEMBLY, MODEL 730, 267 DIESEL ENGINE, CASTING NO. A21601 (02) - ENGINE

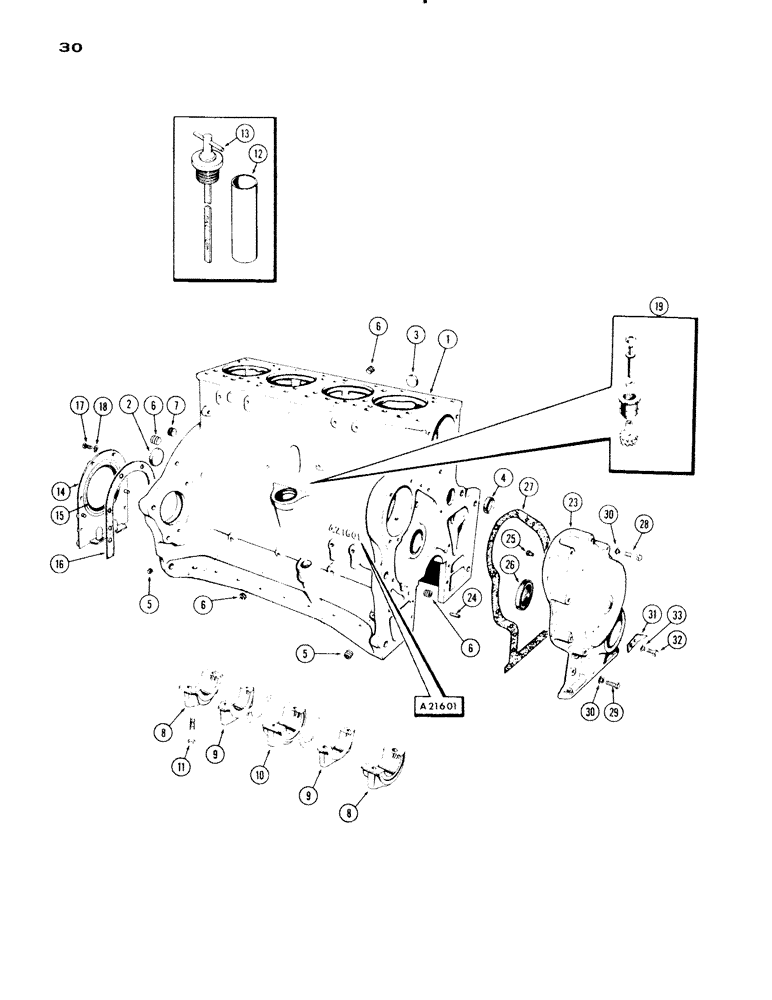

Схема запчастей Case IH 730 SERIES - (030) - CYLINDER BLOCK ASSEMBLY, MODEL 730, 267 DIESEL ENGINE, CASTING NO. A21601 (02) - ENGINE
33
6
18
30
30
7
8
32
5
3
26
14
23
11
12
19
5
31
9
9
4
17
16
29
2
25
28
24
6
15
27
1
13
6
8
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A22170

BLOCK ASSY. - short, 1960 and 1961 production (Inludes stripped block casting No. A21601, sleeves and pistons w/rings and pins, conn. rods & bearings and crankshaft w/gear and bearings) Does not include oil pump, camshaft, lifters etc. (incl. ref. 1 - 11)

1шт.

1

A21756

BLOCK

ASSY. - stripped (Casting No. A21601) (incl. ref. 2 - 11)

1шт.

2

A22394

PLUG

- rear, camshaft hole (2-1/2" cup type)

1шт.

3

41-1622

PLUG,Cup, 1 3/8", Stainless

- L.H. side (1-3/8" cup type)

1шт.

4

41-1628

PLUG,Cup, 1 3/4", Stainless

- front, water gallery (1-3/4" cup type)

1шт.

5

221-41

PLUG

- side, oil gallery (1/8" P.T. slotted)

2шт.

6

221-1843

PLUG

- (3/8" P.T. socket hd.)

3шт.

7

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - rear (1" P.T. socket hd.)

1шт.

8

A26281

CAP

(6301A) wide crankshaft brg.

2шт.

9

A26282

X

CAP (A6302A) narrow crankshaft brg.

2шт.

10

A26283

CAP (6303A) thrust brg., crankshaft

1шт.

11

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- bearing cap

10шт.

A23577

KIT

BUSHING KIT - camshaft (Not shown)

1шт.

12

A20714

X

SOCKET - oil level gauge

1шт.

13

A20739

GAUGE

- dipstick, oil level

1шт.

14

A57457

RETAINER

ASSY. - rear oil seal, crankshaft (incl. ref. 15)

1шт.

15

A23085

OIL SEAL

OIL SEAL - rear, crankshaft

1шт.

16

A32830

GASKET

- rear oil seal retainer

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

18

92-6

LOCK WASHER,3/8"

6шт.

19

A33610

DRIVE

ASSY. - tachometer

1шт.

23

A20718

COVER ASSY. - timing gear (incl. ref. 24 - 26)

1шт.

24

A27840

PIN

- locating (5/16 x 3/4")

2шт.

25

A27869

BUTTON - thrust bumper

2шт.

26

A57342

SEAL

OIL SEAL - front, crankshaft (Replaces A23433)

1шт.

27

A33018

GASKET

- timing gear cover

1шт.

28

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover, 3/8 x 2-1/2" N.C. hex

8шт.

29

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- cover, 3/8 x 1" N.C. hex

2шт.

30

92-6

LOCK WASHER,3/8"

10шт.

31

A21362

CLIP

POINTER - timing indicator

1шт.

32

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

33

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int.-ext. Shakeproof

2шт.
