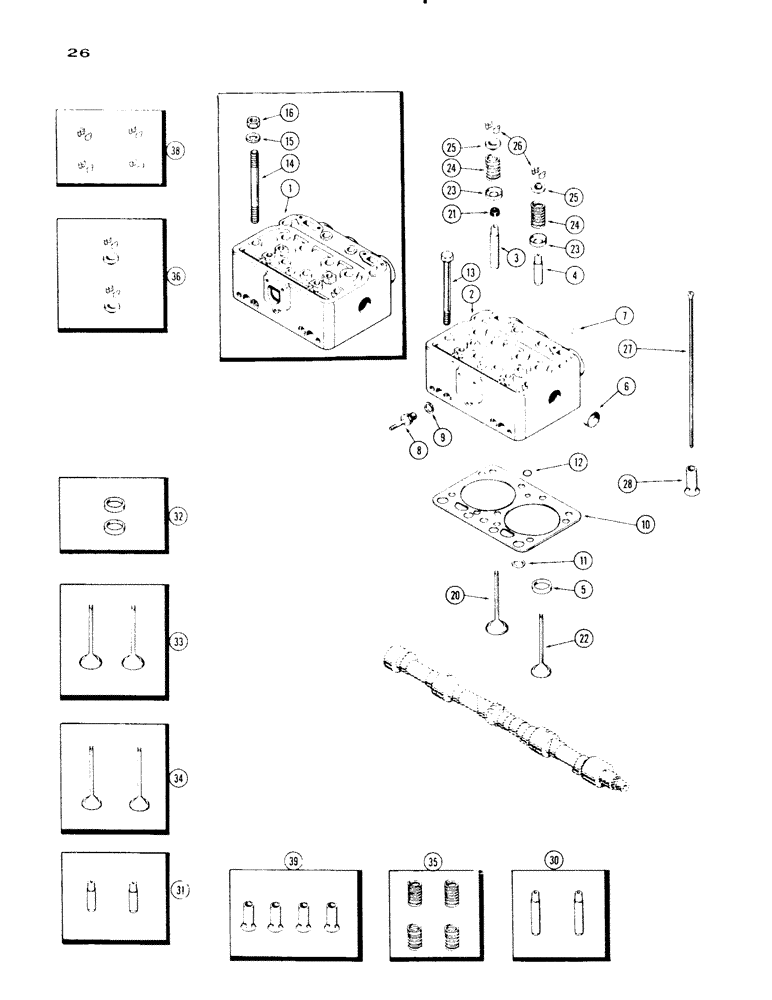

Запчасти Case IH 730 SERIES (026) - CYLINDER HEAD AND VALVES, MODEL 730, 267 DIESEL ENGINE (02) - ENGINE

1

A20956

HEAD (CYLINDER)

HEAD ASSY. - (w/decompressor) (incl. ref. 3 - 9)

2шт.

2

A33643

HEAD (CYLINDER)

HEAD ASSY. - w/o decompressor) (incl. ref. 3 - 9)

2шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 30)

2шт.

4

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 31)

2шт.

5

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 32)

2шт.

6

A34124

PLUG,Cup, 1 5/8", Stainless

- cup (1-41/64" dia.)

2шт.

7

A11810

PIN,3.19mm OD x 6.99mm L

- powrcel locating (1/8 x 17/64)

2шт.

8

A10678

STUD

- injector holder

2шт.

9

A10679

GASKET

- copper (23/32 x 29/32 x 1/32")

2шт.

10

A23118

GASKET

- cyinder head

2шт.

11

A7669

RING

- rubber, water passage (7/8 x 1-3/42 x 5/64")

4шт.

12

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32")

2шт.

13

A23355

BOLT

- head to block (9/16 x 6" N.C.) See ref. 14

18шт.

14

A21058

BOLT

- head to block (early production)

18шт.

15

A27870

WASHER

- head stud (19/32 x 15/16" x 11 ga.)

18шт.

16

25-119

NUT,9/16"-18, G5

- stud, 9/16" N.F. hex

18шт.

20

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 33)

4шт.

21

A10726

SEAL

SHIELD - oil, intake valve stem

4шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 34)

4шт.

23

A27866

SEAT

- valve spring

8шт.

24

NSS

NOT SOLD SEPARAT

SPRING - valve (Order ref. 35)

8шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - valve spring (Order ref. 36)

4шт.

26

NSS

NOT SOLD SEPARAT

LOCK - retainer, valve spring (Order ref. 38)

16шт.

27

A21060

ROD

- push

8шт.

28

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 39)

8шт.

30

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

31

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

32

A57484

INSERT

KIT - exhaust valve (Set of 2)

2шт.

33

A40351

KIT

VALVE KIT - intake (Set of 2)

2шт.

34

A24770

VALVE

KIT - exhaust (Set of 2)

2шт.

35

A21694

SPRING

KIT - valve (Set of 4)

2шт.

36

A21657

LOCK

RETAINER KIT - valve spring (Set of 2 w/locks)

4шт.

38

A40352

LOCK

KIT - spring retainer (Set of 8)

2шт.

39

A21653

KIT

LIFTER KIT - push rod (Set of 4 Std.)

2шт.

39

A22463

KIT

LIFTER KIT - push rod (Set of 4 - .010" oversize)

2шт.
