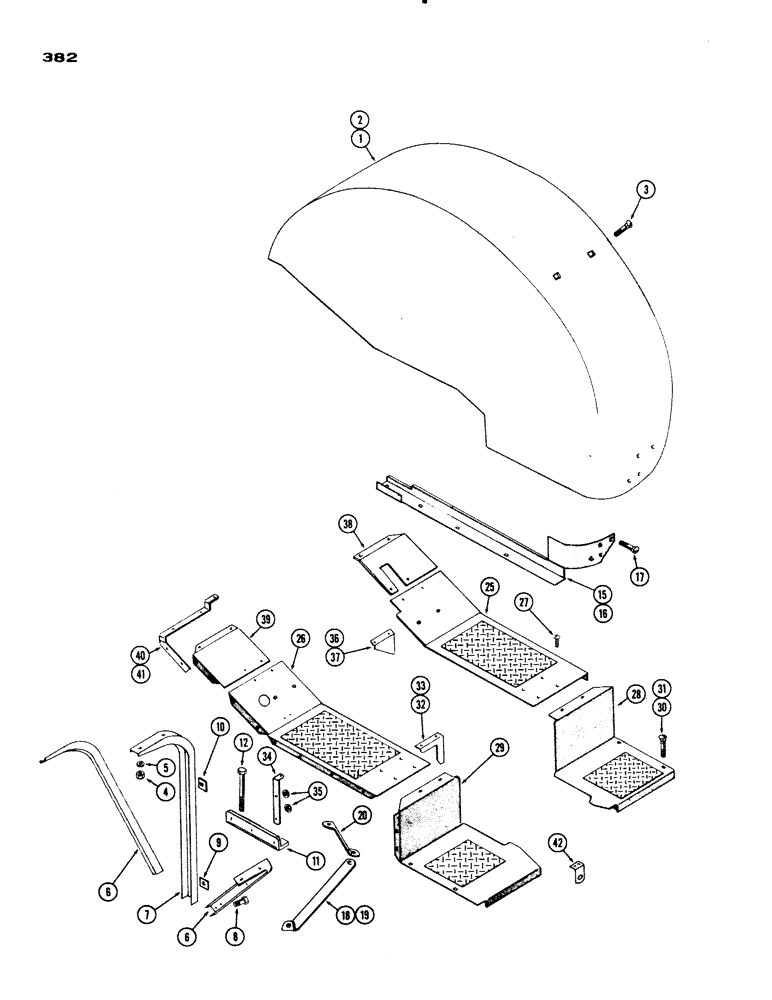

Запчасти Case IH 730 SERIES (382) - FENDERS AND PLATFORM, WESTERN SPECIAL (09) - CHASSIS/ATTACHMENTS

1

A21204

FENDER - R.H.

1шт.

2

A21205

FENDER - L.H.

1шт.

3

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16 x 7/8" N.C. rd. hd. sq. nk.

24шт.

4

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

24шт.

5

92-5

LOCK WASHER,5/16"

24шт.

6

A21226

BRACE

- front and rear, fender

4шт.

7

A21224

BRACE - center, fender

2шт.

8

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex

6шт.

9

A21193

SPACER - fender brace (has round hole)

4шт.

10

A11997

SPACER - fender brace (had square hole)

4шт.

11

A21228

SUPPORT - fender

2шт.

12

14-10124

BOLT - 5/8 x 7-3/4" N.F. hex

4шт.

15

A21210

ANGLE - support, R.H. fender

1шт.

16

A21211

ANGLE - support, L.H. fender

1шт.

17

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

6шт.

18

A21222

BRACE - long, R.H. fender

1шт.

19

A21223

BRACE - long, L.H. fender

1шт.

20

A21227

BRACE - short, fender

2шт.

25

A21188

PLATE - upper R.H., platform

1шт.

26

A21189

PLATE - upper L.H., platform

1шт.

27

77-616

SCREW - 3/8 x 1" N.C. truss hd.

8шт.

28

A24322

PLATE - lower R.H., platform

1шт.

29

A21195

PLATE - lower L.H., platform

1шт.

30

11-828

BOLT (MACHINE)

BOLT - 1/2 x 1-3/4" N.C. rd. hd. sq. nk.

2шт.

31

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2 x 1-1/4" N.C. rd. hd. sq. nk.

2шт.

32

A28198

SUPPORT - rear, R.H. platform

1шт.

33

A28199

SUPPORT - rear, L.H. platform

1шт.

34

A21757

BRACE - center, platform

2шт.

35

A21758

BUSHING

SPACER - center brace

4шт.

36

A28196

BRACE - R.H. front, platform

1шт.

37

A28197

BRACE - L.H. front, platform

1шт.

38

A21216

SHEET - dust, R.H.

1шт.

39

A21217

SHEET - dust, L.H.

1шт.

40

A21218

SUPPORT - R.H. dust shield

1шт.

41

A21219

SUPPORT - L.H. dust shield

1шт.

42

A11028

BRACKET - transport, hydraulic cylinder

1шт.
