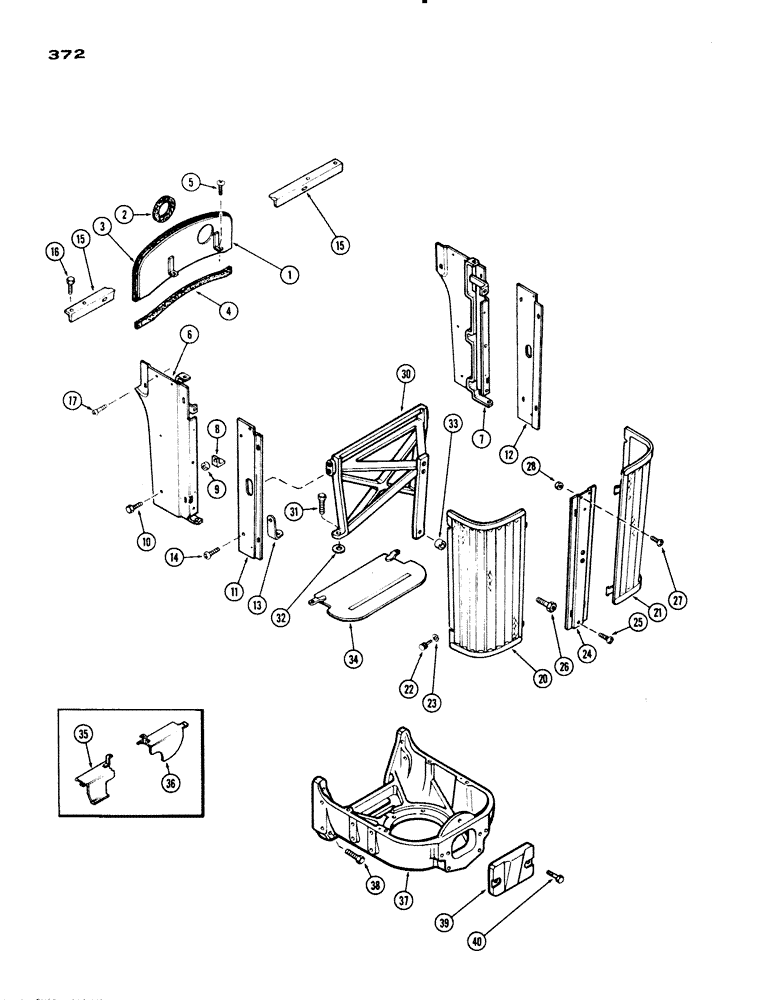

Запчасти Case IH 730 SERIES (372) - SIDE PANELS AND GRILL, 1ST USED TRAC. S/N 8201146 (09) - CHASSIS/ATTACHMENTS

1

A24151

BAFFLE ASSY. - upper, radiator (Gas) (incl. ref. 2 - 4)

1шт.

1

A23792

BAFFLE

ASSY. - upper, radiator (Diesel) (incl. ref. 2 - 4)

1шт.

2

A23795

GROMMET

- baffle (2-1/4 x 5-1/2")

1шт.

3

A23796

SEAL

- upper, baffle (34-3/8" lg.)

1шт.

4

A23797

SEAL ASSY.

SEAL - lower, baffle (20" lg.)

1шт.

5

75-412

SCREW,Rd, 1/4" x 3/4"

- 1/4 x 3/4" N.C. rd. hd.

2шт.

6

A23764

PANEL - radiator, R.H. side

1шт.

7

A23765

MEMBER

PANEL - radiator, L.H. side

1шт.

8

A11905

CLIP - rear, panel

2шт.

9

A11737

SPACER - clip

1шт.

10

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

- 3/8 x 1/2" N.F. hex

2шт.

11

A24274

EXTENSION - R.H. panel (Gen. Purp.)

1шт.

12

A24275

EXTENSION - L.H. panel (Gen. Purp.)

1шт.

13

A11292

BRACE - extension

2шт.

14

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- extension, 1/4 x 1/2" N.C. truss hd.

8шт.

15

A23786

BRACE - side panel

1шт.

16

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

17

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. truss hd. Phillips

4шт.

20

A23774

GRILL - R.H. (Std. 4 Wheel)

1шт.

20

A24278

GRILL - R.H. (Gen. Purp.)

1шт.

21

A23775

GRILL - L.H. (Std. 4 Wheel)

1шт.

21

A24279

GRILL - L.H. (Gen. Purp.)

1шт.

22

A23762

SCREW,1/4" - 20 x 1"

- grill (1/4" N.C. knurled hd.)

4шт.

23

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int.-ext. Shakeproof

4шт.

24

A24254

BRACE - grill, center (Gen. Purp.)

1шт.

24

A23785

BRACE - grill, center (Std. 4 Whl.)

1шт.

25

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4 x 1/2" N.C. truss hd.

1шт.

26

A8399

BOLT,Hex, Tap, 5/8" - 11 x 1 3/4", Gr 5

- center brace screw (5/8 x 1-3/4" N.C. spec.)

1шт.

27

175-447

SCREW,Phil Truss Hd, 1/4" - 20 x 1"

- 1/4 x 1" N.C. truss hd.

2шт.

28

193-1066

NUT - 1/4" N.C. Keps

2шт.

30

A23139

FRAME - cultivator mounting (Gen. Purp.)

1шт.

31

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

32

A7915

SHIM,.0359" Thk

Cultivator frame (21/32" x 1-1/8" x 20 ga.) .0359" Thk

1шт.

33

B18239

SPACER,3/4" Pipe x 3/4"

- center brace (Std. 4 Wheel)

1шт.

34

A22690

BAFFLE - lower (Std. 4 Whl.)

1шт.

35

A23340

BAFFLE - lower R.H. (Gen. Purp.)

1шт.

36

A23341

BAFFLE - lower L.H. (Gen. Purp.)

1шт.

37

A34790

SUPPORT - front axle & radiator

1шт.

38

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

39

A22769

COVER - front

1шт.

40

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

2шт.
