Запчасти Case IH 730 SERIES (360) - 4" X 7" HYDRAULIC CYLINDER, EAGLE HITCH (08) - HYDRAULICS

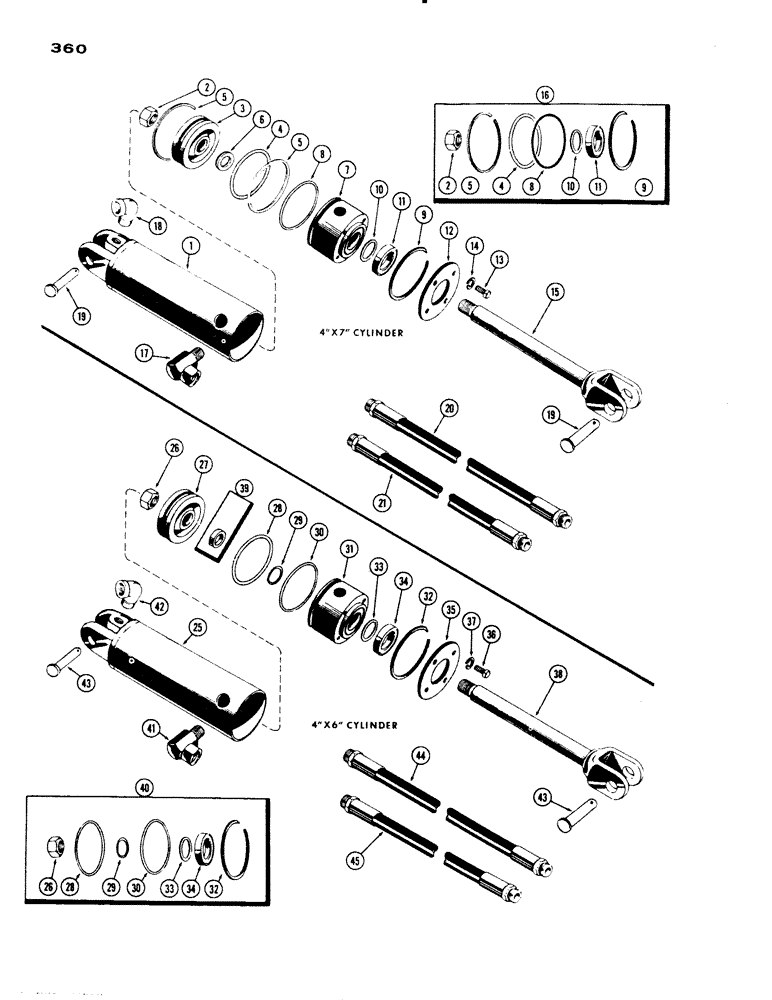

Схема запчастей Case IH 730 SERIES - (360) - 4" X 7" HYDRAULIC CYLINDER, EAGLE HITCH (08) - HYDRAULICS
19
21
9
40
33
10
2
39
8
11
43
12
20
30
28
11
14
30
15
13
37
5
10
29
3
29
32
31
26
19
28
4
34
2
45
16
38
6
9
42
35
5
41
8
33
27
44
5
17
4
34
43
7
1
26
36
25
18
32

Артикул

Название

Примечание

Количество

A23530

CYLINDER

ASSY. - (Gen. Purp. & Hi. Cl.) (incl. ref. 1 - 15)

1шт.

A23566

CYLINDER

ASSY. - (Std. 4 wheel) Same as A23530 except A7323 spacer to shorten stroke (incl. ref. 1 - 15)

1шт.

1

A23533

CYLINDER & CAP - welded assy.

1шт.

2

131-369

LOCK NUT,7/8"-14, GA

NUT - lock, 7/8" N.C. hex

1шт.

3

A23534

PISTON - hydraulic

1шт.

4

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston

1шт.

5

A23535

OIL SEAL

RING - back up, piston "O" ring

2шт.

6

A7323

SPACER - piston (A23566 only)

1шт.

7

A11248

HEAD

- cylinder

1шт.

8

A23536

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

"O" RING - head

1шт.

9

A30896

RING

- snap, cyl. head

1шт.

10

A11251

SEALING RING

RING - quad, piston rod

1шт.

11

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

SEAL - oil, piston rod

1шт.

12

A11249

CLAMP - cyl. head

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

14

92-5

LOCK WASHER,5/16"

4шт.

15

A23540

ROD - piston

1шт.

16

A24417

SEAL KIT

KIT - cylinder repair (incl. ref. 2, 4, 5, 8, 10, 11 and 12)

1шт.

17

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- adapter, 1/2" male x 1/2" P.T. female

1шт.

18

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" 90 deg.

1шт.

19

A23426

PIN

- cyl. mounting (3-1/4" lg.)

2шт.

20

A23528

HOSE - valve to cylinder (31" long)

1шт.

21

A23429

PANEL

HOSE - valve to cylinder (11-1/2" long)

1шт.

A11231

CYLINDER

ASSY. - (Gen. Purp. & Hi Clearance) For Std. 4 wheel order ref. 39 to shorten stroke, 4" x 6" hydraulic (incl. ref. 25 - 38)

1шт.

25

A11247

CYLINDER & CAP - welded assy., 4" x 6" hydraulic

1шт.

26

131-369

LOCK NUT,7/8"-14, GA

NUT - lock, 7/8" N.C. hex, 4" x 6" hydraulic cylinder

1шт.

27

A8968

PISTON

- hydraulic, 4" x 6" cylinder

1шт.

28

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston, 4" x 6" hydraulic cylinder

1шт.

29

A30894

COPPER WASHER

GASKET - piston rod, 4" x 6" hydraulic cylinder

1шт.

30

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

"O" RING - cyl. head, 4" x 6" hydraulic

1шт.

31

A11248

HEAD

- cylinder, 4" x 6" hydraulic

1шт.

32

A30896

RING

- snap, cyl. head, 4" x 6" hydraulic

1шт.

33

A11251

SEALING RING

RING - quad, piston rod, 4" x 6" hydraulic cylinder

1шт.

34

A26758

OIL SEAL

SEAL - oil, piston rod, 4" x 6" hydraulic cylinder

1шт.

35

A11249

CLAMP - cyl. head, 4" x 6" hydraulic

1шт.

36

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4" x 6" hydraulic cylinder Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

37

92-5

LOCK WASHER,5/16"

4" x 6" hydraulic cylinder 5/16"

4шт.

38

4416AA

ROD - piston, 4" x 6" hydraulic cylinder

1шт.

39

A7323

SPACER - piston (order with A11231 for std. 4 whl.), 4" x 6" hydraulic cylinder

1шт.

40

A24416

X

KIT - cylinder repair (incl. 26, 28, 29, 30, 32, 33 and 34), 4" x 6" hydraulic

1шт.

41

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- adapter, 1/2" male x 1/2" P.T. female, 4" x 6" hydraulic cylinder

1шт.

42

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" 90 deg., 4" x 6" hydraulic cylinder

1шт.

43

A27344

PIN - cyl. mounting (2-7/8" lg.), 4" x 6" hydraulic

2шт.

44

A7529

HOSE ASSY.

HOSE - valve to cylinder (29-1/2" long), 4" x 6" hydraulic

1шт.

45

A7785

HOSE - valve to cylinder (9-1/2" long), 4" x 6" hydraulic

1шт.

Выбрано товаров: 45
