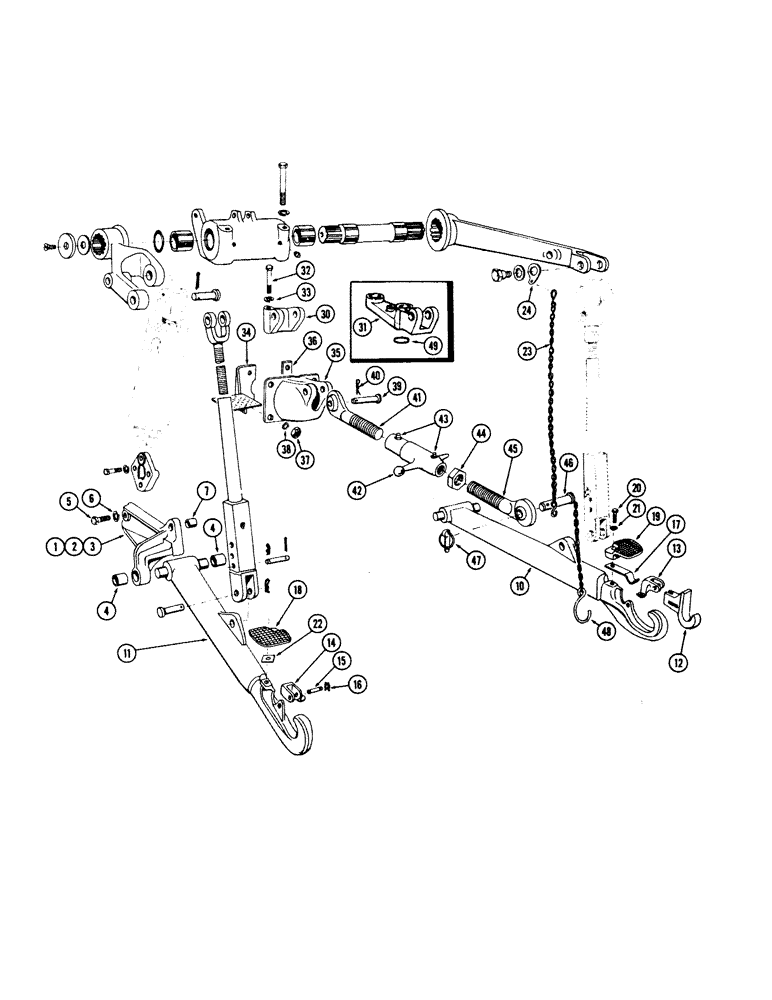

Запчасти Case IH 730 SERIES (358) - DRAFT ARMS AND TURNBUCKLE, EAGLE HITCH (08) - HYDRAULICS

1

A21554

BRACKET

- pivot, R.H. on Gen. Purp. (incl. ref. 4)

1шт.

1

A21555

BRACKET

- pivot, L.H. on Gen. Purp. (incl. ref. 4)

1шт.

2

A9194

BRACKET - pivot, R.H. on Std. 4 Whl. (incl. ref. 4)

1шт.

2

A9195

BRACKET - pivot, L.H. on Std. 4 Whl. (incl. ref. 4)

1шт.

3

A9182

SPRING

BRACKET - pivot, R.H. on Hi. Cl. (incl. ref. 4)

1шт.

3

A9183

CLAMP

BRACKET - pivot, L.H. on Hi. Clr. (incl. ref. 4)

1шт.

4

A9176

BUSHING

- draft arm (2 in drawbar support)

4шт.

5

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

5

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

A7169

SPACER - pivot bracket (Gen. Purp. only)

1шт.

10

A28741

ARM - draft, R.H.

1шт.

11

A28741

ARM - draft, L.H.

1шт.

12

A26240

LATCH

- draft arm

2шт.

13

A26241

LOCK

- latch, R.H. draft arm

1шт.

14

A26242

LOCK

- latch, L.H. draft arm

1шт.

15

A27719

PIN,9.49mm OD x 42.86mm L

- latch, draft arm

2шт.

16

A27720

SNAP RING

RING - retainer, latch pin

4шт.

17

A28027

SPRING

- latch

2шт.

18

A26270

STEP

- L.H. draft arm

1шт.

19

A26250

STEP

- R.H. draft arm

1шт.

20

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

A8131

X

PLATE - latch spring

2шт.

23

A7966

CHAIN - latch (31-5/8" for Std. 4 whl.)

1шт.

23

A28747

CHAIN - latch (35-3/8" for Gen. Purp. & Hi. Clr.)

1шт.

24

A28294

CLIP - latch chain

2шт.

30

A26367

X

BRACKET - upper, depth adj. screw. No longer furnished. Order ref. 30, ref. 49 and (1) 13-1036-5/8 x 2-1/4" N.C. hex bolt, Start Serial: 8173401

1шт.

31

A9431

BRACKET - upper-depth adj. screw, Serial Range: -8173401

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

32

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" N.C. hex

2шт.

33

92-8

LOCK WASHER,1/2"

3шт.

34

A28734

STEP - upper

1шт.

35

A26368

BRACKET - lower, depth adj. screw

1шт.

36

A7788

SPACER - lower bracket

1шт.

37

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

4шт.

38

92-8

LOCK WASHER,1/2"

4шт.

39

A27638

PIN - adj., Serial Range: screw-bracket

1шт.

40

A29054

HAIR PIN COTTER

COTTER - mounting pin

1шт.

41

A7240

SCREW - front, depth adj. (7-3/8" lg. L.H. thrd.)

1шт.

41

A24499

SCREW - front, depth adj. (Spec. 10-3/8" lg. L.H. thrd.)

1шт.

42

A7821

TURNBUCKLE - depth adjusting

1шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T.

2шт.

44

25-1520

NUT

- jam, 1-1/4" N.F. hex

1шт.

45

A7823

SCREW - rear, depth adj. (7-3/8" lg. R.H. thrd.)

1шт.

46

A28738

PIN ASSY. - implement mast (incl. chain)

1шт.

47

A29105

PIN

KLIK PIN - mast pin

1шт.

48

A27643

HOOK

"S" HOOK -, Serial Range: pin-chain

1шт.

49

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - bracket, Serial Range: -8173401

1шт.
