Запчасти Case IH 730 SERIES (356) - LIFT LINKS AND LEVELING SCREW, EAGLE HITCH, USED PRIOR TO TRAC. S/N 8191681 (08) - HYDRAULICS

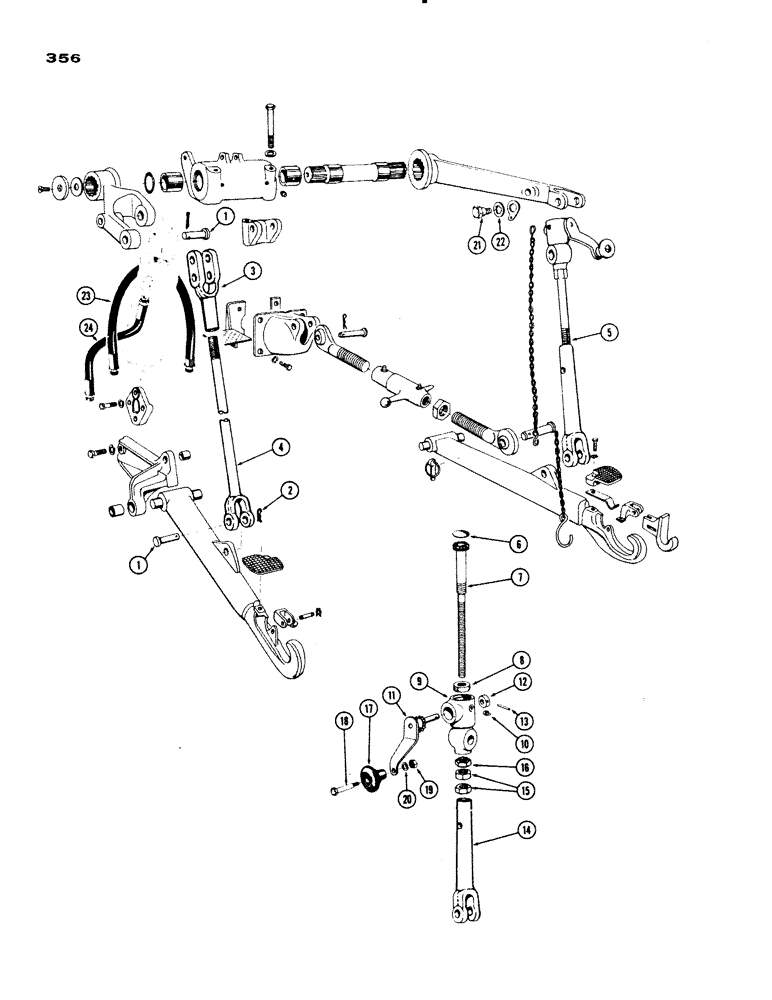

Схема запчастей Case IH 730 SERIES - (356) - LIFT LINKS AND LEVELING SCREW, EAGLE HITCH, USED PRIOR TO TRAC. S/N 8191681 (08) - HYDRAULICS
4
10
1
2
18
20
14
22
9
13
11
5
23
7
15
12
24
16
3
6
21
17
19
8
1

Артикул

Название

Примечание

Количество

1

A27657

PIN

- yoke, lift links

3шт.

2

A29054

HAIR PIN COTTER

- cotter

3шт.

3

A7760

YOKE - upper, L.H. lift link

1шт.

4

A28289

LINK - lift, L.H. (Gen. Purp. & Hi. Clr.)

1шт.

4

A7328

LINK - lit, L.H. (Std. 4 wheel)

1шт.

5

A28745

SCREW ASSY. - leveling (Gen. Purp. & Hi. Clr.) (incl. ref. 6 - 16)

1шт.

5

A7329

SCREW ASSY. - leveling (Std. 4 wheel) (incl. ref. 6 - 16)

1шт.

6

41-30

PLUG

- gear case (1-7/8" O.D.)

1шт.

7

A9219

SCREW,14-13/16"

- leveling (Gen. Purp. & Hi. Clr.)

1шт.

7

A7327

SCREW,19-13/16"

- leveling (Std. 4 wheel)

1шт.

8

A27655

BEARING, BALL

BEARING - leveling screw

1шт.

9

A26236

GEARBOX ASSY

CASE - gear, leveling screw

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

11

A28584

CRANK

ASSY. - leveling gear (includes handle)

1шт.

12

A27651

COLLAR

- lock, pinion shaft

1шт.

13

135-45

PIN - groove, 5/32 x 1" full taper Type 1

1шт.

14

A9217

YOKE - leveling link (Gen. Purp. & Hi. Clr.)

1шт.

14

A26237

YOKE

- leveling link (Std. 4 wheel)

1шт.

15

25-1414

NUT,Jam, 7/8"-9, G5

- jam, 7/8" N.F. hex

2шт.

16

A27656

NUT

- brass

1шт.

17

A26845

KNOB

- pinion handle

1шт.

18

A27652

SCREW

BOLT - knob

1шт.

19

129-123

NUT,3/8"-24, G5

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

A27658

STUD

- leveling screw to lift arm

2шт.

22

193-36

LOCK WASHER,Int Tooth, 7/8"

WASHER, LOCK, Int Tooth, 7/8"

2шт.

23

A7529

HOSE ASSY.

HOSE - valve to cylinder, R.H. (29-1/2" long)

1шт.

24

A7785

HOSE - valve to cylinder, L.H. (9-1/2" long)

1шт.

Выбрано товаров: 28
