Запчасти Case IH 730 SERIES (354) - LIFT LINKS AND LEVELING SCREW, EAGLE HITCH, 1ST USED TRAC. S/N 8191681 (08) - HYDRAULICS

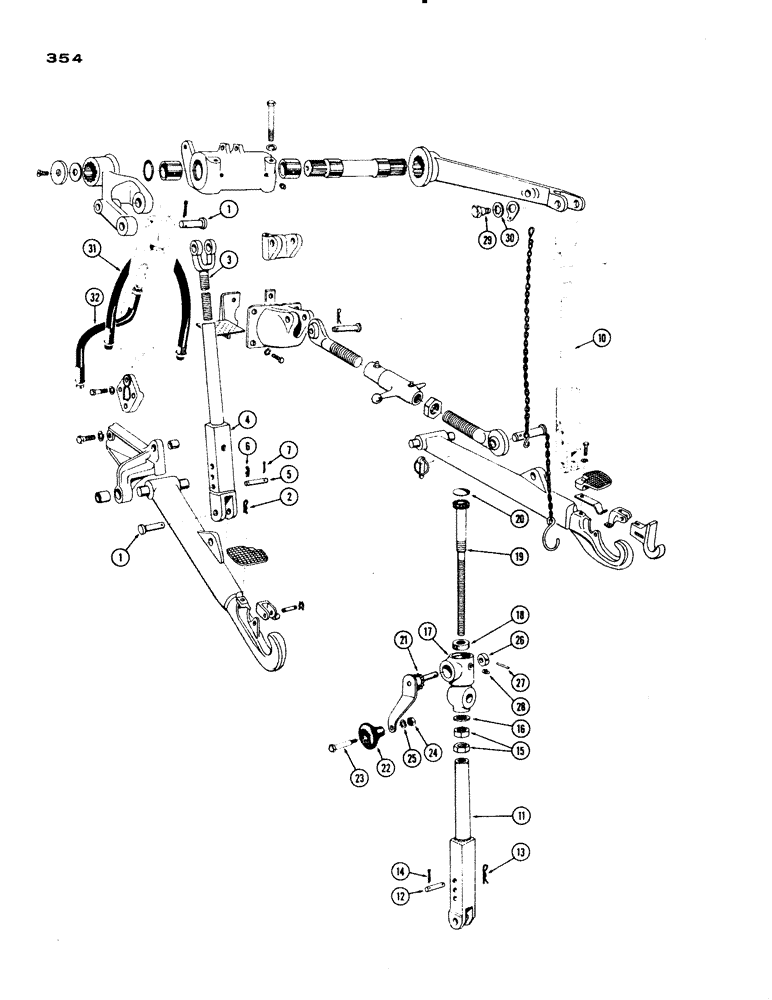

Схема запчастей Case IH 730 SERIES - (354) - LIFT LINKS AND LEVELING SCREW, EAGLE HITCH, 1ST USED TRAC. S/N 8191681 (08) - HYDRAULICS
1
15
2
31
30
5
10
29
3
26
13
23
18
24
7
16
6
22
20
28
32
25
14
19
27
4
1
21
17
12
11

Артикул

Название

Примечание

Количество

1

A27657

PIN

- yoke, lift links

3шт.

2

A29054

HAIR PIN COTTER

- cotter

4шт.

3

A23414

YOKE - upper, L.H. lift link

1шт.

4

A23401

LINK - lift, draft arm (Gen. Purp. & Hi Cl.)

1шт.

4

A24167

LINK - lift, draft arm (Std. 4 wheel)

1шт.

5

A23415

PIN - lock, lift link

1шт.

6

TB10698

COTTER - lock pin

1шт.

7

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

10

A23412

SCREW ASSY. - leveling (Gen. Purp. & Hi Clr.) (incl. ref. 11 - 20)

1шт.

10

A24168

SCREW ASSY. - leveling (Std. 4 wheel) (incl. ref. 11 - 20)

1шт.

11

A23401

LINK - leveling screw (Gen. Purp. & Hi Clr.)

1шт.

11

A24167

LINK - leveling screw (Std. 4 wheel)

1шт.

12

A23415

PIN - lock, link

1шт.

13

TB10698

COTTER - lock pin

1шт.

14

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

15

25-1414

NUT,Jam, 7/8"-9, G5

- jam, 7/8" N.F. hex

2шт.

16

A23411

WASHER - thrust

1шт.

17

A26236

GEARBOX ASSY

CASE - gear, leveling screw

1шт.

18

A27655

BEARING, BALL

BEARING - leveling screw

1шт.

19

A23409

SCREW - leveling (includes gear)

1шт.

20

41-30

PLUG

- gear case (1-7/8" dia.)

1шт.

21

A28584

CRANK

ASSY. - level screw gear (includes handle)

1шт.

22

A26845

KNOB

- pinion handle

1шт.

23

A27652

SCREW

BOLT - knob

1шт.

24

129-123

NUT,3/8"-24, G5

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

A27651

COLLAR

- lock, pinion shaft

1шт.

27

135-45

PIN - groove, 5/32 x 1" full taper Type 1

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

29

A27658

STUD

- leveling screw to lift arm

2шт.

30

193-36

LOCK WASHER,Int Tooth, 7/8"

WASHER, LOCK, Int Tooth, 7/8"

2шт.

31

A23528

HOSE - valve to cylinder, R.H. (31" long)

1шт.

32

A23529

HOSE - valve to cylinder, L.H. (11-1/2" long)

1шт.

Выбрано товаров: 33
