(348) - A34922 HYDRAULIC CYLINDER, 3-1/4 X 8, WITH HYDRAULIC LIMIT STOP

Запчасти Case IH 730 SERIES (348) - A34922 HYDRAULIC CYLINDER, 3-1/4 X 8, WITH HYDRAULIC LIMIT STOP (08) - HYDRAULICS

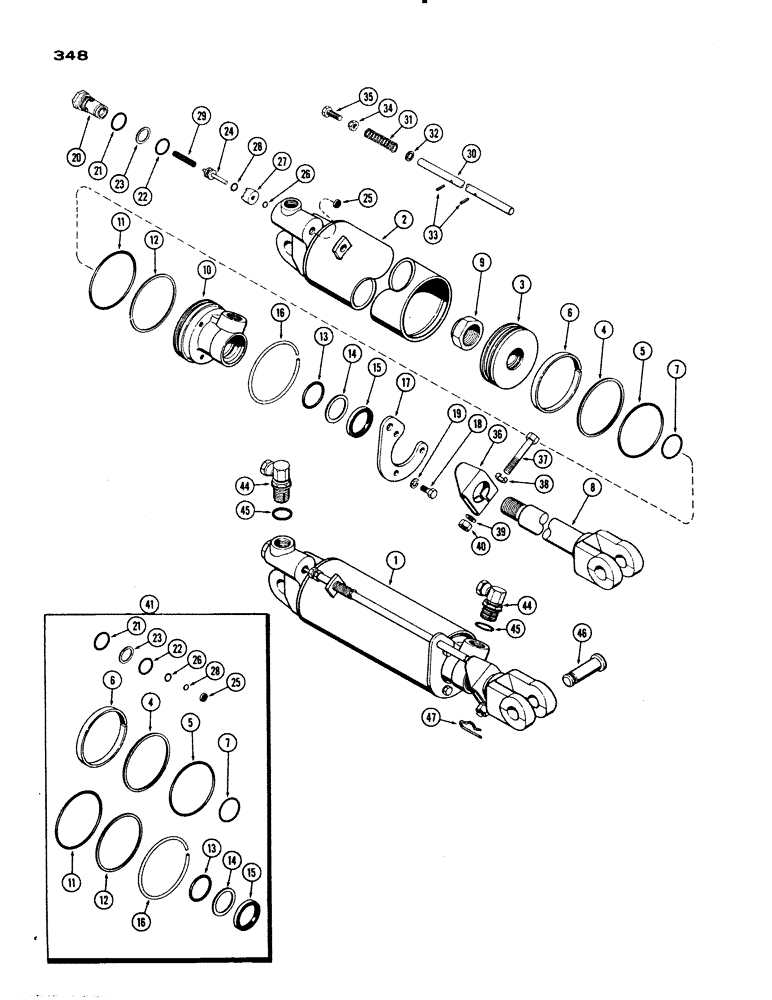

Схема запчастей Case IH 730 SERIES - (348) - A34922 HYDRAULIC CYLINDER, 3-1/4 X 8, WITH HYDRAULIC LIMIT STOP (08) - HYDRAULICS
33
11
9
44
17
26
13
7
23
15
6
30
12
40
47
28
22
36
20
5
46
5
26
11
41
4
28
8
3
23
19
1
31
44
16
7
18
39
21
45
25
16
35
38
14
2
27
13
15
29
24
6
32
4
12
37
14
34
45
25
21
22
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A34922

CYLINDER

ASSY. - hydraulic (incl. ref. 2 - 40)

1шт.

2

A41348

BODY - cylinder

1шт.

3

A41177

PISTON - cylinder

1шт.

4

A41191

RING

- piston, outer (See ref. 41)

1шт.

5

A41185

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - piston (2-7/8" I.D.) (See ref.41)

1шт.

6

A41183

RING - wear, piston (See ref. 41)

1шт.

7

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

"O" RING - inner piston (1-1/4" I.D.) (See ref.41)

1шт.

8

A41179

ROD - piston

1шт.

9

A41189

LOCK NUT

NUT - piston rod (1" N.F. lock type)

1шт.

10

A41180

BEARING

- cylinder

1шт.

11

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - outer, bearing (3" I.D.) (See ref. 41)

1шт.

12

A41188

RING

- back-up (See ref. 41)

1шт.

13

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - inner, bearing (1-1/4" I.D.) (See ref. 41)

1шт.

14

T22277

OIL SEAL

RING - back-up (See ref. 41)

1шт.

15

A41176

X

SEAL - oil, bearing

1шт.

16

A41186

RING, LOCKING

RING - lock, bearing (See ref. 41)

1шт.

17

A41182

PLATE - end, cylinder

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Plate Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

A41351

PLUG - valve plunger

1шт.

21

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

"O" RING - plug (7/8" I.D.) (See ref. 41)

1шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - plug (11/16" I.D.) (See ref. 41)

1шт.

23

A41346

RING

- back-up (See ref. 41)

1шт.

24

A41430

PLUNGER

ASSY. - valve

1шт.

25

A41175

WIPER

- valve plunger (See ref. 41)

1шт.

26

A41147

X

"O" RING - plunger (3/16" I.D.) (See ref. 41)

1шт.

27

A41429

SPACER

- valve

1шт.

28

A41160

INSERT

"O" RING - valve (23/64" I.D.) (See ref. 41)

1шт.

29

A41163

SPRING

- valve poppet

1шт.

30

A41153

ROD

- push

1шт.

31

A41154

SPRING

- push rod

1шт.

32

A41155

WASHER

- spring seat

1шт.

33

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - push rod (5/16" N.C. Gripco)

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Adjusting Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

36

A41349

STOP

- limit clamp

1шт.

37

114-219

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

- clamp, 3/8 x 2-1/2" N.F. hex

1шт.

38

A41352

LOCK WASHER

LOCK - clamp bolt

1шт.

39

A41353

WASHER

- clamp bolt (1/2 x 7/8 x 1/16")

1шт.

40

A41167

LOCK NUT

NUT - clamp bolt (3/8" N.F. lock type)

1шт.

41

A41347

SEAL,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

REPAIR KIT - cylinder (incl. ref. 4, 5, 6, 7, 11, 12, 13, 14, 15, 16, 21, 22, 23, 25, 26 and 28)

1шт.

44

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSY. - 90 deg. adapter, hose (incl. ref. 45)

2шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow

1шт.

46

A27347

PIN

- cylinder mounting

2шт.

47

A29054

HAIR PIN COTTER

- retainer, mounting pin

2шт.
