Запчасти Case IH 730 SERIES (344) - REMOTE HYDRAULIC HOSES AND COUPLINGS, CYLINDER END (08) - HYDRAULICS

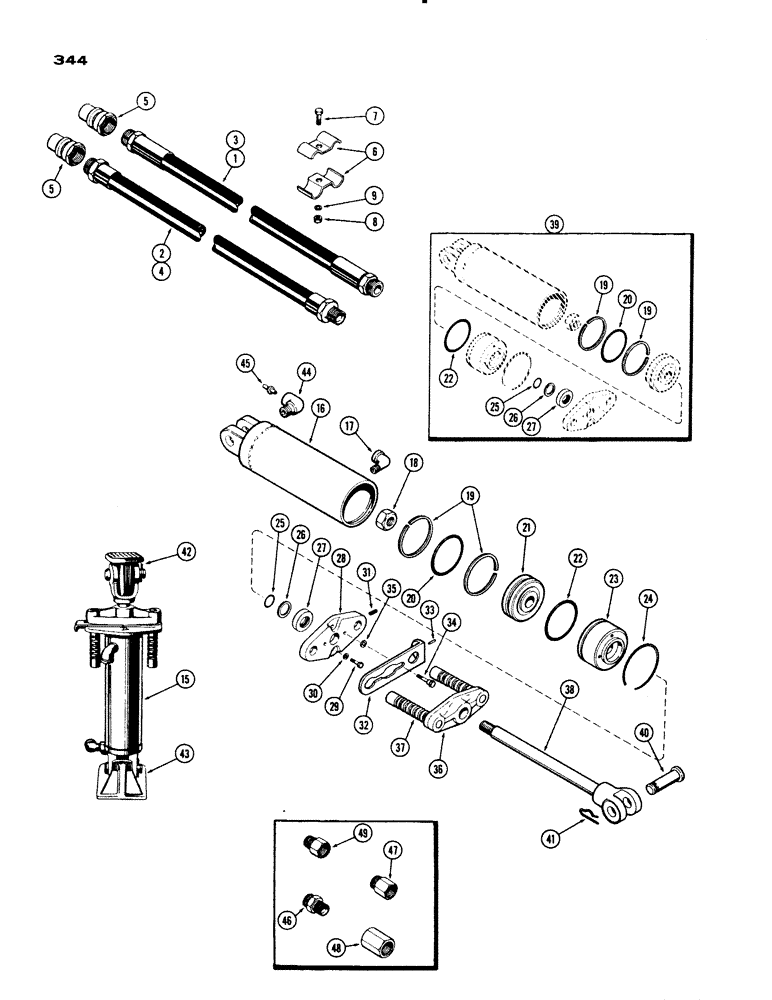

Схема запчастей Case IH 730 SERIES - (344) - REMOTE HYDRAULIC HOSES AND COUPLINGS, CYLINDER END (08) - HYDRAULICS
16
36
4
37
48
39
30
5
33
25
3
32
8
20
20
41
19
19
26
6
17
31
22
47
24
5
34
43
35
49
46
45
29
25
18
1
27
23
42
40
2
9
38
44
28
7
19
21
15
27
22
26

Артикул

Название

Примечание

Количество

1

A20816

HOSE

- coupling to cyl. (106")

1шт.

2

A20817

HOSE

- coupling to cyl. (118")

1шт.

3

A8204

HOSE - coupling to cyl. (Special 57-5/8")

2шт.

4

A8205

HOSE - coupling to cyl. (Special 93-5/8")

2шт.

5

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - male, hose to tractor (Repairs Figure 342)

2шт.

6

A27440

CLAMP

- hose

2шт.

7

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

8

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

15

A23557

CYLINDER ASSY. - hydraulic, A23557, 3-1/4 x 8, with mechanical limit stop (incl. ref. 16 - 38)

1шт.

16

A31162

BODY & HEAD ASSY., A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

1шт.

17

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- hose to cylinder (See 44 & 45), A23557 hydraulic, 3-1/4 x 8, with mechanical limit stop

2шт.

18

131-369

LOCK NUT,7/8"-14, GA

NUT - piston rod (7/8" N.F. self locking), A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

1шт.

19

A23562

OIL SEAL

RING - back-up (See ref. 39), A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

2шт.

20

A30893

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

"O" RING - piston (2-7/8" I.D.) (See ref. 39), A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

1шт.

21

A23560

PISTON - cylinder, A23557 hydraulic, 3-1/4 x 8, with mechanical limit stop

1шт.

22

A23555

O-RING,2.984" ID x 3.262" OD x 0.139"

"O" RING - outer head (See ref. 39), A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

1шт.

23

A23561

HEAD - cylinder tube, A23557 hydraulic, 3-1/4 x 8, with mechanical limit stop

1шт.

24

A31158

RING, SNAP

RING - snap, head retaining, A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - inner, cyl. head (See ref. 39), A23557 hydraulic, 3-1/4 x 8, with mechanical limit stop

1шт.

26

A23553

RING

- back up (See ref. 39), A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

1шт.

27

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

SEAL - oil piston rod (See ref. 39), A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

1шт.

28

A27345

GUIDE - limit stop pin, A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical

1шт.

29

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex, A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

2шт.

30

92-5

LOCK WASHER,5/16"

A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop 5/16"

2шт.

31

A27421

SPRING

- limit stop latch, A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical

1шт.

32

A31156

LATCH

ASSY. - limit stop, A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical (incl. ref. 33)

1шт.

33

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, , A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop 1/4" x 5/8", Slotted

1шт.

34

A31157

SCREW,5/16" - 18 x 1 3/4"

- latch retaining, A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

2шт.

35

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop Int Tooth, 5/16"

2шт.

36

A31154

STOP ASSY. - piston limit, A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical stop (incl. ref. 37)

1шт.

37

A31155

PIN - limit stop, A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical

2шт.

38

A30972

ROD - piston, A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

1шт.

39

A40758

SEAL,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

REPAIR KIT - cylinder (incl. ref. 19, 20, 22, 25, 26 & 27), A23557 hydraulic, 3-1/4 x 8, with mechanical limit stop

1шт.

40

A27347

PIN

- cylinder yoke, A23557 hydraulic, 3-1/4 x 8, with mechanical limit stop

2шт.

41

A29054

HAIR PIN COTTER

- cotter, pin retaining, A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

2шт.

42

A9163

PAD - jack, cylinder, A23557 hydraulic, 3-1/4 x 8, with mechanical limit stop

1шт.

43

A9164

BASE

- jack, cylinder, A23557 hydraulic, 3-1/4 x 8, with mechanical limit stop

1шт.

44

A57367

VALVE

REGULATOR ASSY. - lowering speed, A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop (incl. ref. 45)

1шт.

45

A57369

SPOOL

POPPET - flow check, A23557 hydraulic cylinder, 3-1/4 x 8, with mechanical limit stop

1шт.

46

A27359

ADAPTER

(7/8"-18 male to 1/2" P.T. male), hydraulic hose

1шт.

47

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

(7/8"-18 male to 1/2" P.T. female), hydraulic hose

1шт.

48

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

(7/8"-18 female to 1/2" P.T. female), hydraulic hose

1шт.

49

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

(7/8"-18 female to 1/2" P.T. male), hydraulic hose

1шт.
