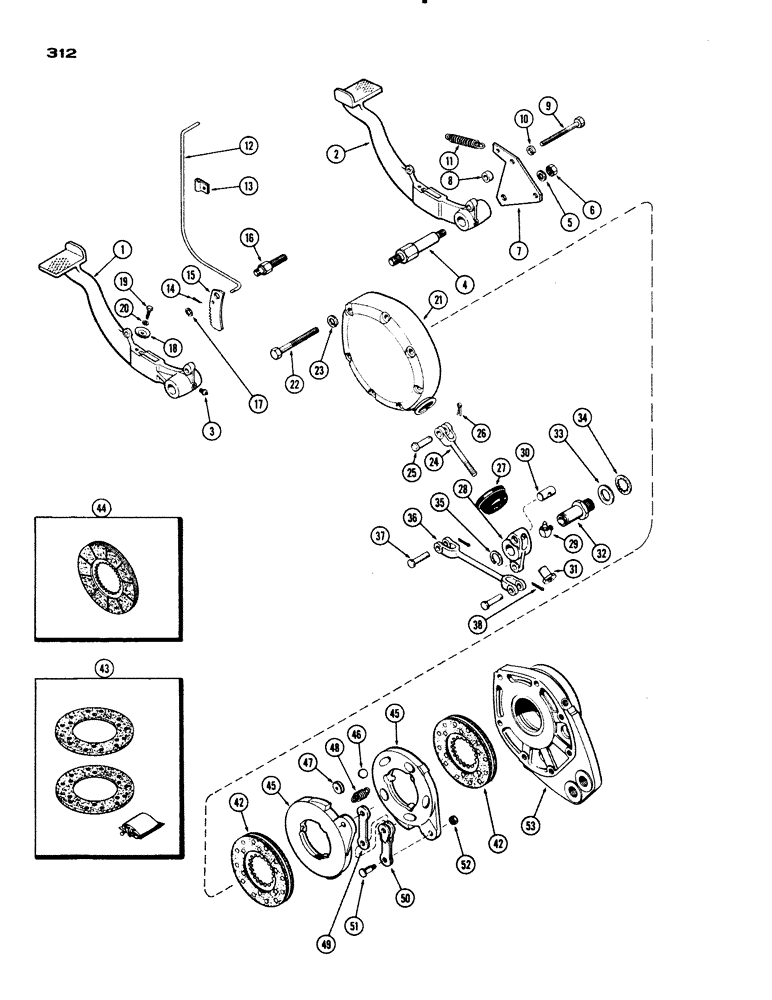

Запчасти Case IH 730 SERIES (312) - BRAKES AND CONTROLS, 730 GROVE (07) - BRAKES

1

A10194

PEDAL - R.H. brake

1шт.

2

A10195

PEDAL - L.H. brake

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

4

A8414

STUD - pivot, brake pedal

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

7

A8415

PLATE - support, pedal

1шт.

8

A28893

BUSHING

SPACER - plate

4шт.

9

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

9

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

2шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

A27688

VALVE SPRING

SPRING - pedal return

2шт.

12

A10198

HANDLE ASSY. - R.H. pedal release (incl. ref. 13)

1шт.

12

A10199

HANDLE ASSY. - L.H. pedal release (incl. ref. 13)

1шт.

13

A8422

CLIP - handle

2шт.

14

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

15

A8418

RATCHET - pedal lock

2шт.

16

A8419

STUD - ratchet pivot

2шт.

17

A26828

RING

- snap, pivot stud

2шт.

18

A27698

GASKET

PAWL - lock, brake pedal

2шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A26353

COVER - brake

2шт.

22

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

8шт.

22

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

6шт.

23

92-8

LOCK WASHER,1/2"

14шт.

24

A28203

ROD

- brake pull

2шт.

25

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, brake rod

2шт.

26

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

27

A27465

CAP

- rubber dust

2шт.

28

A8411

LEVER - brake

2шт.

29

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. 45 deg.

2шт.

30

A27687

HARDWARE

TRUNNION - brake pull rod

2шт.

31

A27686

NUT

- adjusting, brake rod

2шт.

32

A8416

STUD - lever pivot

2шт.

33

A26401

WASHER - stud

2шт.

34

193-38

LOCK WASHER,1 1/8"

WASHER - lock, 1-1/8" int. Shakeproof

2шт.

35

A8417

RING, SNAP

RING - snap, lever retainer

2шт.

36

A28066

ROD - brake, Serial Range: pedal-lever

2шт.

37

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, control rod

4шт.

38

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

42

A30180

X

DISC - middle, brake (w/rivet type lining) Order A40794 when depleted (incl. ref. 43)

4шт.

43

A30182

LINING

KIT (includes rivets)

1шт.

44

A40794

DISC

- middle, brake (w/bonded lining)

4шт.

45

A31126

DISC

- brake actuating

4шт.

46

211-15

BALL,5/8" Dia

- actuating, . 5/8" Dia

6шт.

47

A31125

INSERT

- ball seat

12шт.

48

A30897

SPRING

- disc tension

6шт.

49

A31119

LINK

- straight, brake actuating

2шт.

50

A31120

LINK

- straddle, brake actuating

2шт.

51

A31121

STEP BOLT

BOLT - actuating disc

4шт.

52

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex

4шт.

53

A8410

CARRIER - side gear

2шт.
