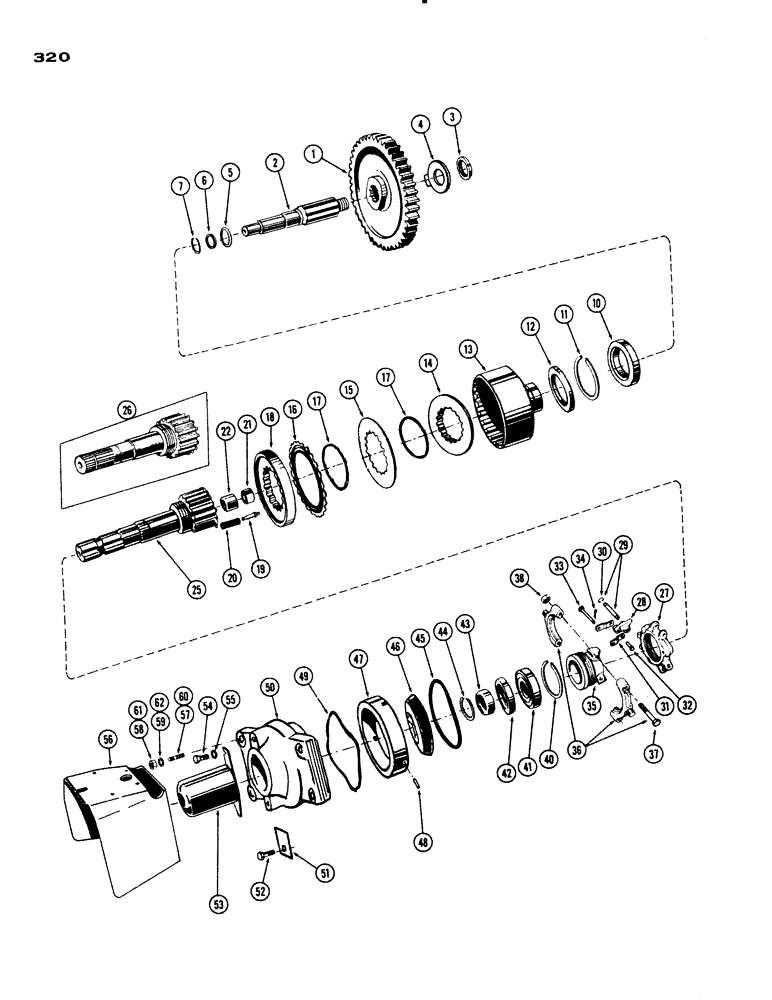

Запчасти Case IH 730 SERIES (320) - P.T.O ASSEMBLY (06) - POWER TRAIN

40

A27417

RING

- snap, bearing carrier

1шт.

41

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING - P.T.O. shaft (540 RPM)

1шт.

41

A20979

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING - P.T.O. shaft (1000 RPM)

1шт.

42

A11120

SEAL

SEAL - oil, P.T.O. shaft

1шт.

43

A21509

COLLAR CLAMP

COLLAR - P.T.O. shaft

1шт.

44

A21619

CIRCLIP

RING - snap, P.T.O. shaft

1шт.

45

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

"O" RING - bearing carrier

1шт.

46

A11124

DISC

- brake (includes bonded lining)

1шт.

46

A11124

DISC

- brake (includes bonded lining)

1шт.

47

A11121

RING

- P.T.O. brake

1шт.

48

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

3шт.

49

A11125

VALVE SPRING

SPRING - wave, P.T.O. brake

1шт.

50

A20482

CARRIER - bearing

1шт.

51

A20308

STRAP - retaining, bearing carrier

1шт.

52

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

53

A20483

GUARD

- P.T.O. shaft

1шт.

54

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

55

193-45

WASHER,Ext-Int Tooth, 5/16"

- lock, 5/16" int.-ext. Shakeproof

2шт.

56

A28258

GUARD

- universal joint

1шт.

57

A27637

STUD

- brg. carrier & guard (1/2 x 2-13/16")

2шт.

58

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

2шт.

59

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

60

A28257

STUD - brg. carrier & guard (5/8 x 3")

2шт.

61

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

62

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.
