Запчасти Case IH 730 SERIES (318) - P.T.O ASSEMBLY (06) - POWER TRAIN

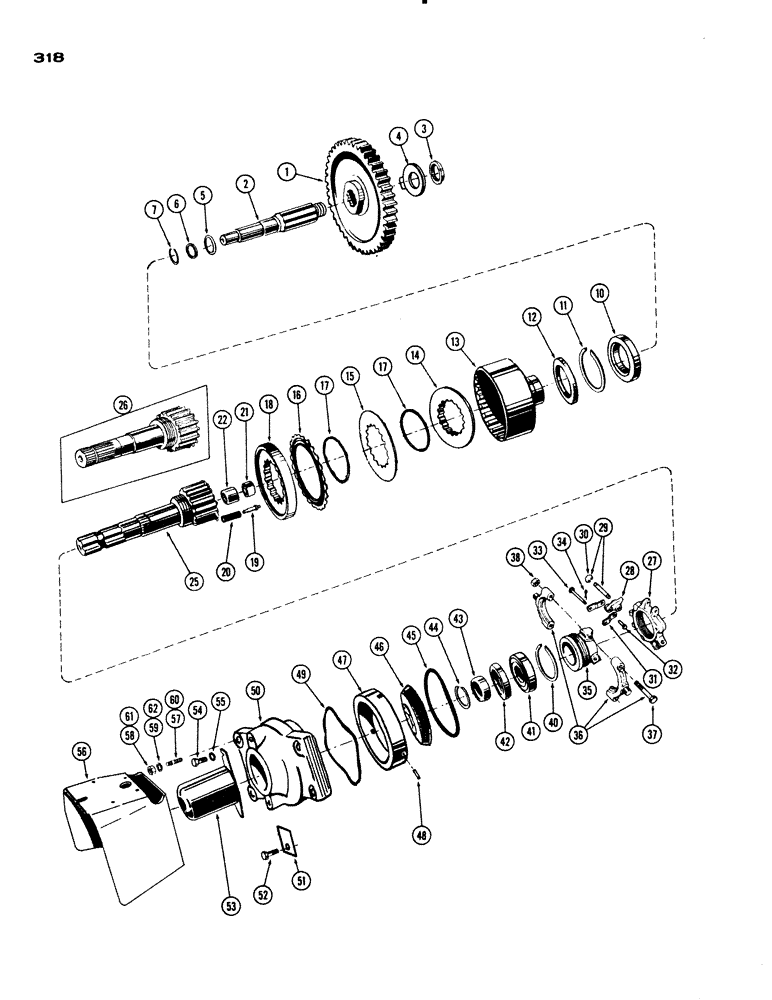

Схема запчастей Case IH 730 SERIES - (318) - P.T.O ASSEMBLY (06) - POWER TRAIN
60
16
56
45
28
14
27
49
61
57
36
40
41
17
38
34
58
32
2
55
26
4
15
50
46
5
3
59
6
1
12
31
17
52
35
18
37
10
7
48
54
47
11
42
51
20
25
44
22
43
62
33
53
30
29
19
13
21

Артикул

Название

Примечание

Количество

1

A21264

GEAR - P.T.O. drive (540 RPM-53T)

1шт.

1

A21288

GEAR - PTO - drive (1000 RPM - 44T)

1шт.

2

A28245

SHAFT - clutch, Serial Range: -8173401

1шт.

2

A22956

SHAFT - clutch, Start Serial: 8173401

1шт.

3

A28246

NUT

-, Serial Range: gear-shaft

1шт.

4

A28247

LOCK WASHER

WASHER - lock

1шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - clutch shaft (1-1/4" I.D.), Serial Range: -8173401

1шт.

6

A28252

WASHER - retainer, Serial Range: -8173401

1шт.

7

A28253

RING

- snap, Serial Range: -8173401

1шт.

7

A22957

RING - snap, Start Serial: 8173401

1шт.

10

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - clutch drum

1шт.

11

A20287

RING - snap, drum bearing

1шт.

12

A21510

OIL SEAL

SEAL - oil, clutch drum

1шт.

13

A21265

DRUM - clutch, Serial Range: -8173401

1шт.

13

A22958

DRUM - clutch, Start Serial: 8173401

1шт.

14

A7101

PLATE

- clutch backing

1шт.

15

A7102

CLUTCH DRIVING PLATE

PLATE - driven, clutch (internal teeth) (dull finish) Can use A57170

7шт.

15

A57170

BRAKE DISC

PLATE - driven (internal teeth w/bright finish)

7шт.

16

A11127

PLATE

- drive, clutch (external teeth)

8шт.

17

A27591

VALVE SPRING

SPRING - separator, clutch plate

8шт.

18

A26225

LARGE PLATE

PLATE - pressure

1шт.

19

A34248

LOCK PIN,7.85mm OD x 39.62mm L

PIN - lock, clutch adjusting (Replaces A27593)

2шт.

20

A26944

VALVE SPRING

SPRING - lock pin, clutch adjusting

2шт.

21

T25077

BEARING, NEEDLE,1.125" ID x 1.3755" OD x 1"

BEARING - front pilot, clutch shaft

1шт.

22

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - rear pilot, clutch shaft

1шт.

25

A21508

SHAFT

- PTO (540 RPM)

1шт.

26

A21526

SHAFT - PTO (1000 RPM)

1шт.

27

A27592

FORK

YOKE - clutch adjusting

1шт.

28

A27594

FINGER

- clutch, Serial Range: yoke-sleeve

3шт.

29

A28641

PIN

ASSY. - finger to yoke (incl. ref. 30)

3шт.

30

A27810

CIRCLIP,#X31, .243" Dia, E-Type

RING, retaining, , yoke pin #X31, .243" Dia, E-Type

2шт.

31

A27596

LINK

-, Serial Range: finger-sleeve

6шт.

32

A8823

PIN,6.29mm OD x 26.99mm L

-, Serial Range: link-finger

3шт.

33

A8824

PIN

-, Serial Range: link-sleeve

3шт.

34

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

35

A26226

SLEEVE CYLINDER

SLEEVE - sliding, clutch operating

1шт.

36

A11128

COLLAR

ASSY. - clutch throwout (incl. ref. 37 & 38)

1шт.

37

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- 5/16 x 2" N.F. hex

2шт.

38

131-151

LOCK NUT

NUT - lock, 5/16" N.F. hex

2шт.

40

A27417

RING

- snap, bearing carrier

1шт.

41

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING - P.T.O. shaft (540 RPM)

1шт.

41

A20979

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING - P.T.O. shaft (1000 RPM)

1шт.

42

A11120

SEAL

SEAL - oil, P.T.O. shaft

1шт.

43

A21509

COLLAR CLAMP

COLLAR - P.T.O. shaft

1шт.

44

A21619

CIRCLIP

RING - snap, P.T.O. shaft

1шт.

45

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

"O" RING - bearing carrier

1шт.

46

A11124

DISC

- brake (includes bonded lining)

1шт.

47

A11121

RING

- P.T.O. brake

1шт.

48

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

3шт.

49

A11125

VALVE SPRING

SPRING - wave, P.T.O. brake

1шт.

50

A20482

CARRIER - bearing

1шт.

51

A20308

STRAP - retaining, bearing carrier

1шт.

52

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

53

A20483

GUARD

- P.T.O. shaft

1шт.

54

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

55

193-45

WASHER,Ext-Int Tooth, 5/16"

- lock, 5/16" int.-ext. Shakeproof

2шт.

56

A28258

GUARD

- universal joint

1шт.

57

A27637

STUD

- brg. carrier & guard (1/2 x 2-13/16")

2шт.

58

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

2шт.

59

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

60

A28257

STUD - brg. carrier & guard (5/8 x 3")

2шт.

61

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

62

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

Выбрано товаров: 63
