Запчасти Case IH 730 SERIES (298) - CASE-O-MATIC DRIVE, OIL PUMP, MANIFOLD, FILTER (06) - POWER TRAIN

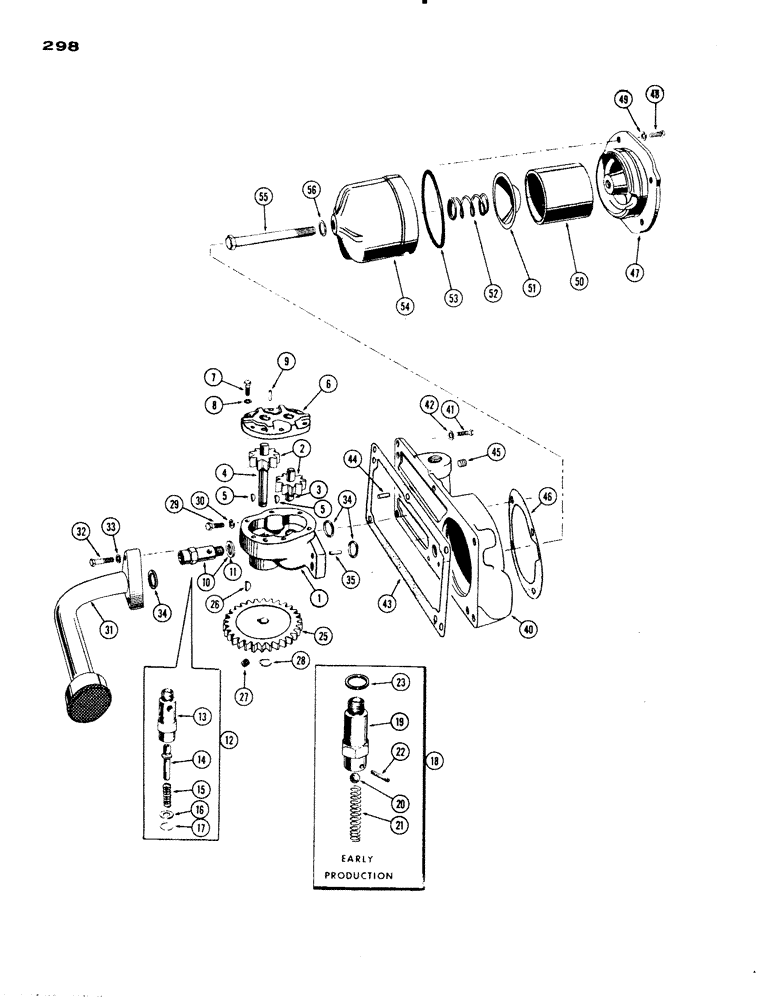

Схема запчастей Case IH 730 SERIES - (298) - CASE-O-MATIC DRIVE, OIL PUMP, MANIFOLD, FILTER (06) - POWER TRAIN
14
1
34
8
15
13
47
5
43
20
9
17
28
41
6
40
23
56
31
42
51
4
45
12
32
22
10
34
29
2
5
19
33
3
46
48
11
50
18
53
30
16
25
35
52
55
49
54
21
44
26
27
7

Артикул

Название

Примечание

Количество

A11534

PUMP, HYDRAULIC

PUMP ASSY. - converter drive (incl. ref. 1 - 17)

1шт.

1

A11535

HOUSING ASSY. - (includes bushings)

1шт.

2

A11523

GEAR

- pump drive

2шт.

3

A11525

SHAFT

- driven gear

1шт.

4

A11522

SHAFT

- drive gear

1шт.

5

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Gear to shaft #3, 1/8" x 1/2"

2шт.

6

A11536

COVER ASSY. (includes bushings)

1шт.

7

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

9

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, cover (5/16 dia. x 9/16")

2шт.

10

A23008

KEY

VALVE KIT - oil relief (incl. ref. 11 - 17)

1шт.

11

A11530

GASKET

- valve seat

1шт.

12

NSS

NOT SOLD SEPARAT

VALVE ASSY. - relief (Order A23008) (incl. ref. 13 - 17)

1шт.

13

NSS

NOT SOLD SEPARAT

BODY (Order A23008)

1шт.

14

A23062

PISTON

1шт.

15

A23082

SPRING

1шт.

16

A22354

WASHER

- spring seat

1шт.

17

A22355

RETAINER - spring

1шт.

18

A20729

X

VALVE ASSY. - relief (Order A23008) (incl. ref. 19 - 23)

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - (Order A23008)

1шт.

20

211-9

BALL,5/16" Dia

(.) 5/16" Dia

1шт.

21

A20728

SPRING

1шт.

22

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

23

A11530

GASKET

- valve seat

1шт.

25

A11537

GEAR

- pump drive (30T)

1шт.

26

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Gear to pump #3, 1/8" x 1/2"

1шт.

27

A11551

SCREW - set, drive gear (1/4" N.C.)

1шт.

28

A11538

SNAP RING,#50, Ext

RING, snap, , gear to pump shaft #50, Ext

1шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pump mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

A23624

TUBE - oil intake (includes screen)

1шт.

32

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex

2шт.

33

92-5

LOCK WASHER,5/16"

2шт.

34

A7075

GASKET

GASKET - intake tube & pump (Replaces A22317)

3шт.

35

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, Serial Range: pump-manifold

2шт.

40

A11566

MANIFOLD - converter oil control

1шт.

41

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

41

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

- cap, 3/8 x 1-3/4" N.C. 12 pt.

2шт.

42

92-6

LOCK WASHER,3/8"

6шт.

43

A11568

GASKET

- manifold

1шт.

44

A8134

PIN

- dowel, manifold

2шт.

45

221-1840

PLUG

- pipe, 1/8" socket hd.

1шт.

46

A11567

GASKET

- cover, oil filter

1шт.

47

A11558

COVER - oil filter

1шт.

48

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

49

92-6

LOCK WASHER,3/8"

4шт.

50

A11552

ELEMENT

- filter

1шт.

51

A11554

RETAINER - filter spring

1шт.

52

A27379

SPRING

- filter element

1шт.

53

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - filter housing (4" I.D.)

1шт.

54

A11553

HOUSING

- filter

1шт.

55

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

56

A11557

GASKET

GASKET - housing bolt

1шт.

Выбрано товаров: 53
