Запчасти Case IH 730 SERIES (266) - REAR AXLE AND FINAL DRIVE, STANDARD FOUR WHEEL TRACTOR, GENERAL PURPOSE (06) - POWER TRAIN

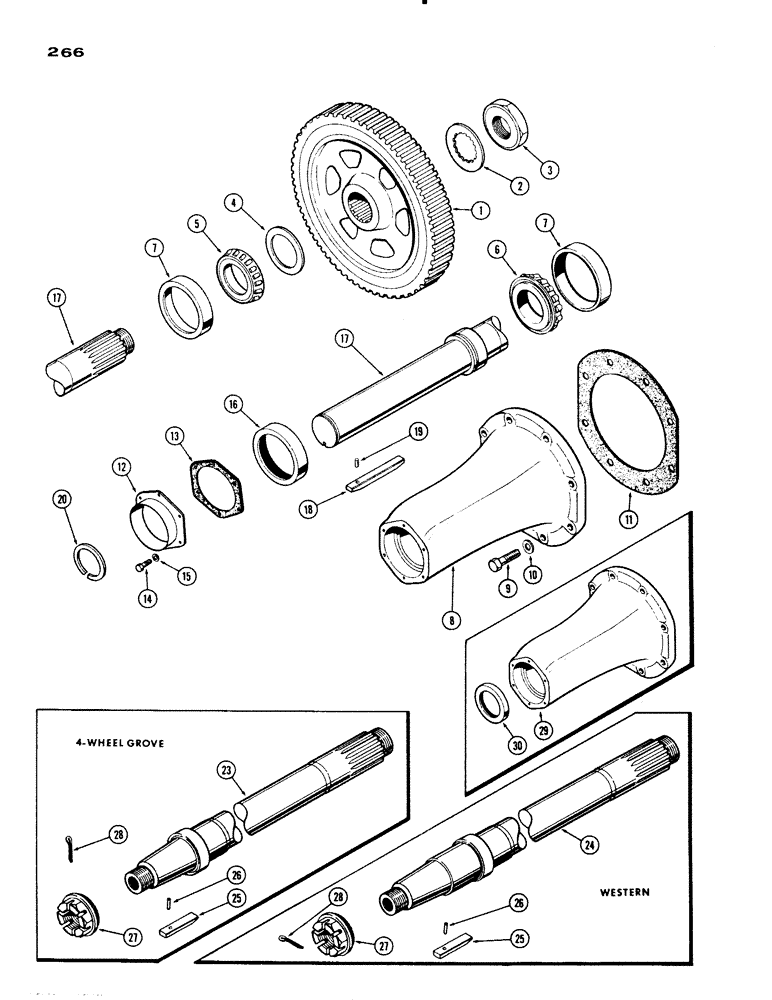

Схема запчастей Case IH 730 SERIES - (266) - REAR AXLE AND FINAL DRIVE, STANDARD FOUR WHEEL TRACTOR, GENERAL PURPOSE (06) - POWER TRAIN
13
7
9
27
24
27
26
23
14
6
25
17
28
12
28
5
18
19
29
2
26
3
30
7
8
11
25
20
15
16
1
10
17
4

Артикул

Название

Примечание

Количество

1

A28716

GEAR - final drive, rear axle

2шт.

2

A28137

LOCK WASHER

WASHER - lock, drive gear nut

2шт.

3

A23386

NUT

- drive, Serial Range: gear-axle

2шт.

4

A28143

WASHER - thrust, drive gear

2шт.

5

A28135

ROLLER BEARING,3.0625" ID x 1.172"

CONE - bearing (inner & outer on Gen. Purp. w/44" to 88" axle. Also 4-Wheel, Western and Grove models)

2шт.

5

A28135

ROLLER BEARING,3.0625" ID x 1.172"

CONE - bearing (inner only on Gen Purp. w/52" to 108" axle)

1шт.

6

A7122

ROLLER BEARING,3.3125" ID x 1.172"

CONE - bearing (outer on Gen. Purp. w/52" to 108" axle)

1шт.

7

A28134

BEARING CUP

CUP - bearing

2шт.

8

A26340

X

HOUSING - rear axle (Casting No. 6475A) Order ref. 29 and 30 when depleted

2шт.

9

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

11

A28141

GASKET

- housing to trans. case

2шт.

12

A28139

GUARD

- dust (Not used w/ref. 29 A34655)

2шт.

13

A28140

GASKET

- dust guard

2шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

15

92-5

LOCK WASHER,5/16"

12шт.

16

A28138

OIL SEAL

SEAL - oil (3-3/4 x 4-3/4 x 15/16") See ref. 30

2шт.

17

A22923

KIT

SHAFT - axle, 48 to 88" (Gen. Purp.) (3"dia.) (incl. ref. 18 & 19)

2шт.

17

A22924

SHAFT - axle, 52 to 108" (Gen. Purp.) (3-3/16" dia.) (incl. ref. 18 & 19)

2шт.

18

A34890

BUCKET TOOTH KEY

KEY - wheel to axle (6" long)

1шт.

19

A26375

PIN - key (1/4 x 1/2")

1шт.

20

A28145

RING, SNAP

RING - snap (For 44 to 88" Gen. Purp. axle)

2шт.

20

A7123

RING - snap (For 52" to 108" Gen. Purp. axle)

2шт.

23

A22918

KEY

SHAFT - axle (4 Wheel and Grove) (incl. ref. 25 & 26)

2шт.

24

A22919

KEY

SHAFT - axle (Western Spec.) (incl. ref. 25 & 26)

2шт.

25

A22917

KEY

- wheel to axle (4" long)

1шт.

26

A29426

AXLE PIN

PIN - key (3/8 x 3/4")

1шт.

27

A23385

NUT

- outer (4 Wheel, Western & Grove)

2шт.

28

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

29

A34655

HOUSING - rear axle (Replaces A26340 if A34656 oil seal is used)

2шт.

30

A34656

OIL SEAL

- oil (3-3/4 x 5-1/4 x 15/32") See Ref. 16

2шт.

Выбрано товаров: 31
