Запчасти Case IH 730 SERIES (260) - TRANSMISSION, COUNTERSHAFT AND GEARS (06) - POWER TRAIN

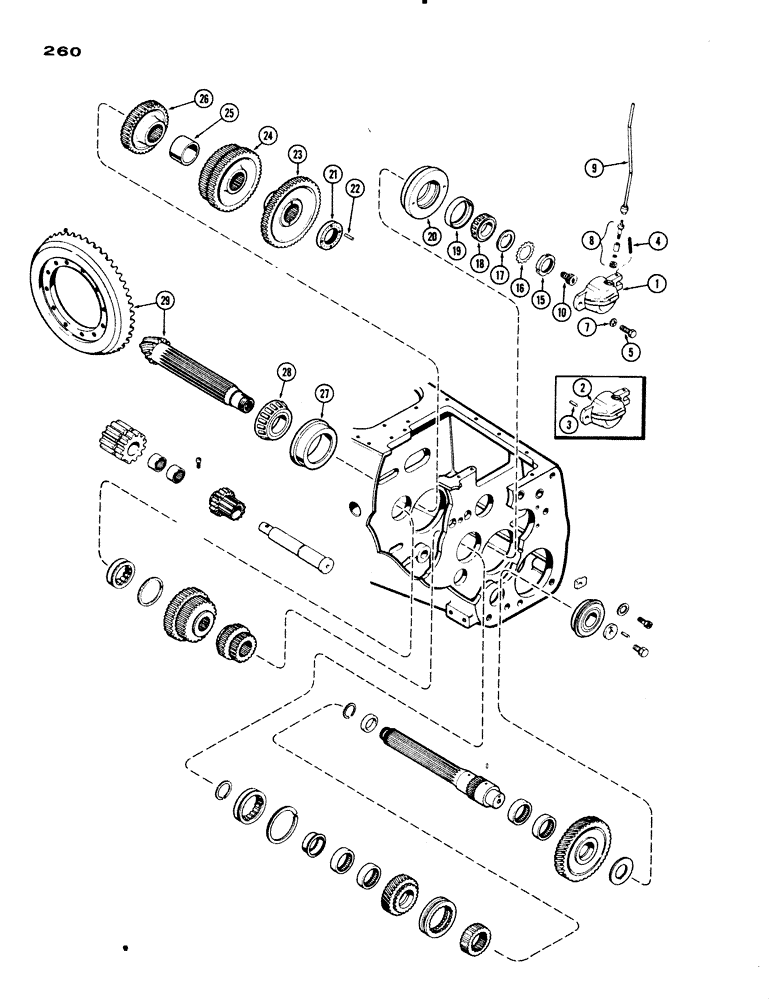

Схема запчастей Case IH 730 SERIES - (260) - TRANSMISSION, COUNTERSHAFT AND GEARS (06) - POWER TRAIN
17
25
28
15
19
26
1
5
27
10
21
20
2
16
7
9
23
29
4
18
24
8
3
22

Артикул

Название

Примечание

Количество

1

A34087

BRACKET - speedometer drive (Replaces A33532 when depleted)

1шт.

2

A33532

BRACKET ASSY. - speedometer drive (Order A34087 when depleted) (incl. ref. 3)

1шт.

3

A20363

PIN - locating (5/32 x 7/8")

3шт.

4

A9906

X

SCREW - bracket (3/8 x 1" N.C. Nylock)

1шт.

5

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

1шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

A20280

GEAR

KIT - driven (12T w/4 wheel & Hi-Clr.)

1шт.

8

A20281

GEAR

KIT - driven (13T Gen. Purp.)

1шт.

9

A11624

TUBE

ASSY. - speedometer drive (internal)

1шт.

10

A11621

GEAR

- speedometer drive

1шт.

15

A27580

X

NUT - retainer, front bearing

1шт.

16

A28171

LOCK WASHER

WASHER - lock, bearing nut

1шт.

17

A28170

WASHER

- thrust, bearing

1шт.

18

A28169

ROLLER BEARING,1.875" ID x 0.875"

CONE - front bearing

1шт.

19

A28168

CUP

- front bearing

1шт.

20

A11612

CARRIER - front bearing

1шт.

21

A22760

NUT

- retainer, countershaft gear

1шт.

22

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

23

A28172

GEAR - 1st & 5th speed (41T)

1шт.

24

A28173

GEAR - 2nd, 3rd, 6th & 7th speeds (37T & 33T)

1шт.

25

A28291

SPACER

- gear (2-9/32 x 2-7/8 x 1-13/16")

1шт.

26

A28174

GEAR - 4th & 8th speed (28T)

1шт.

27

A7944

CUP - rear bearing

1шт.

28

A7945

CONE

- rear bearing

1шт.

29

A28719

COUNTERSHAFT & RING GEAR - matched (9T & 48T for Gen. Purpose)

1шт.

29

A28720

COUNTERSHAFT & RING GEAR - matched (10T & 48T for all but Gen. Purpose)

1шт.

Выбрано товаров: 27
