Запчасти Case IH 730 SERIES (258) - CASE-O-MATIC DRIVE, RANGE AND P.T.O. SHAFTS (06) - POWER TRAIN

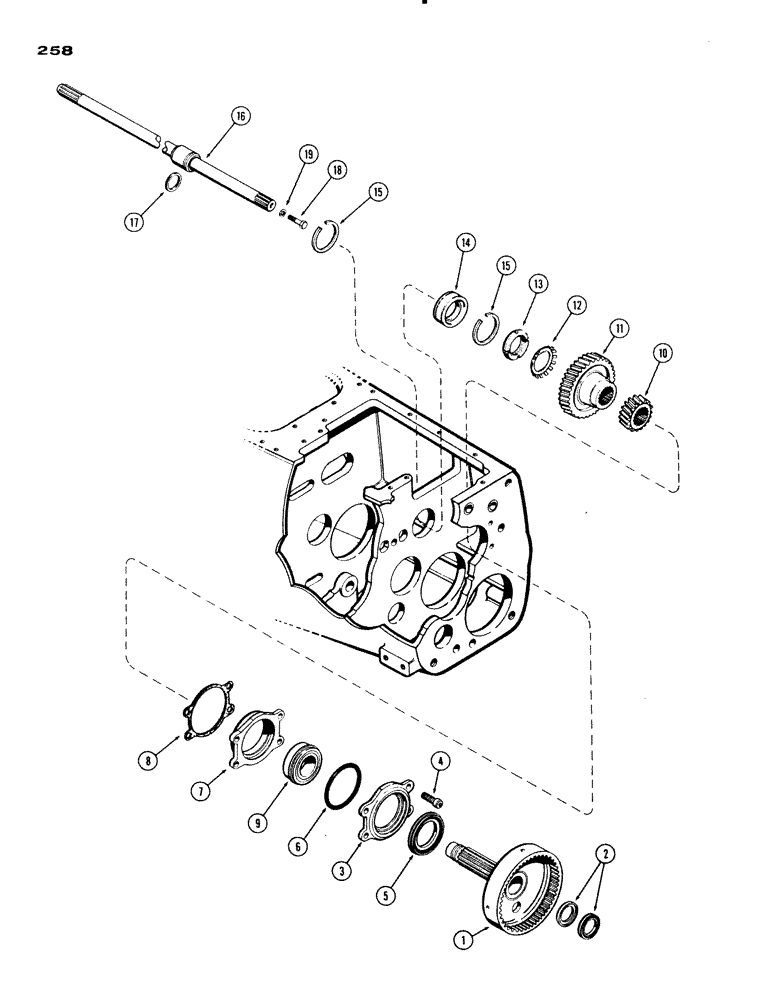

Схема запчастей Case IH 730 SERIES - (258) - CASE-O-MATIC DRIVE, RANGE AND P.T.O. SHAFTS (06) - POWER TRAIN
18
11
14
1
8
12
2
19
7
17
6
13
10
4
5
9
15
16
15
3

Артикул

Название

Примечание

Количество

1

A33747

SHAFT

- range drive (Replaces A11634)

1шт.

2

A11593

OIL RESERVOIR

SEAL - oil, P.T.O. shaft

2шт.

3

A11637

CARRIER - oil seal, range shaft

1шт.

4

A11638

BOLT - carrier (3/8 x 1-3/8" N.C. socket hd.)

4шт.

5

A11592

OIL SEAL

SEAL - oil, rear (2-7/8 x 3-7/8 x 15/32")

1шт.

6

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - carrier (4 x 4-1/4 x 1/8")

1шт.

7

A11635

CARRIER - front bearing

1шт.

8

A11636

GASKET

- bearing carrier

1шт.

9

A28148

BALL BEARING

BEARING - front, range drive

1шт.

10

A11608

GEAR - low range (18T)

1шт.

11

A11610

GEAR - high range (38T)

1шт.

12

A28151

LOCK WASHER

- lock, range shaft nut

1шт.

13

A28152

NUT

- lock, range drive shaft

1шт.

14

A28149

ROLLER BEARING,1.7311" ID x 2.8346" OD x 1.0625"

BEARING - rear, range shaft

1шт.

15

A28153

RING

- snap, rear bearing

1шт.

16

A21295

KIT

SHAFT ASSY. - P.T.O. (59") (incl. ref. 17 - 19)

1шт.

17

A21273

SEALING RING

RING - seal

1шт.

18

114-214

BOLT,Locking, 3/8" - 24 x 3/4", Gr 5

- 3/8 x 3/4" N.C. hex

1шт.

19

A22317

WASHER

- copper (25/64 x 9/16 x 3/64")

1шт.

Выбрано товаров: 19
