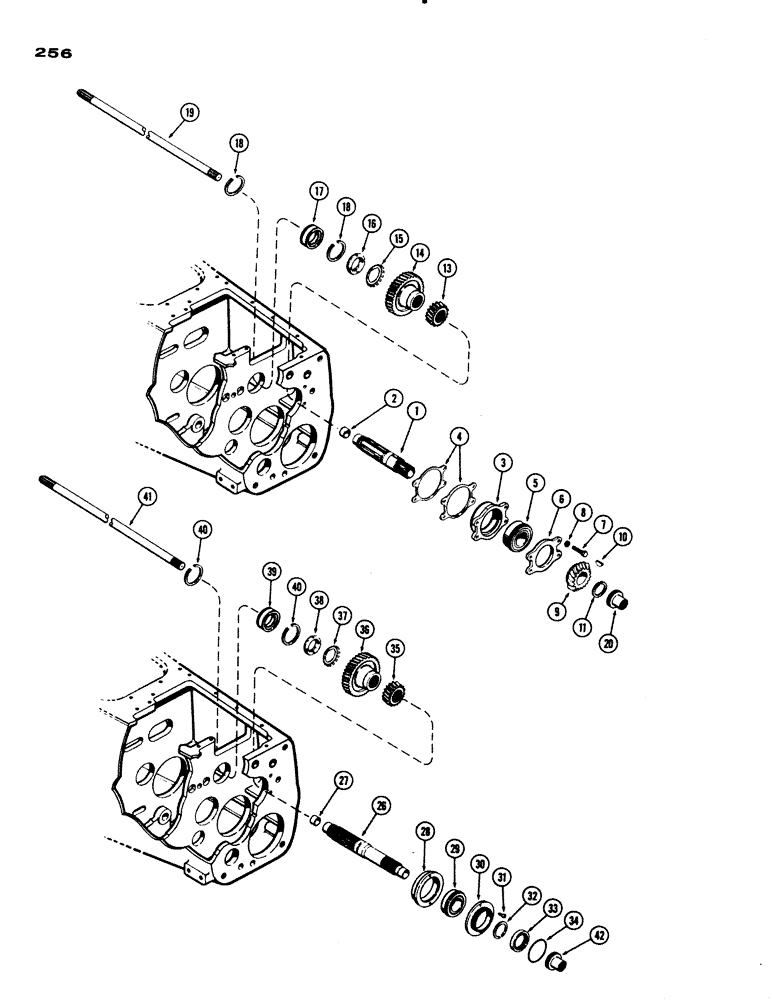

Запчасти Case IH 730 SERIES (256) - RANGE AND P.T.O SHAFTS, STANDARD CLUTCH DRIVE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A28729
SHAFT ASSY. - range drive (incl. ref. 2)
1шт.
2
A28235
BUSHING
- range shaft (1-1/8 x 1-1/4 x 3/4")
1шт.
3
A26342
CARRIER - front bearing
1шт.
4
A7428
SHIM - front bearing (.003")
4шт.
4
A7429
SHIM - front bearing (.005")
6шт.
5
A28148
BALL BEARING
BEARING - front, range shaft
1шт.
6
A28150
RETAINER - front bearing
1шт.
7
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
4шт.
8
92-6
LOCK WASHER,3/8"
4шт.
9
A7066
PINION - belt pulley drive
1шт.
10
126-44
WOODRUFF KEY,#129, 3/8" x 2 1/8"
KEY - pinion (Woodruff #129)
1шт.
11
A27089
SNAP RING,2.36mm Thk, Ext
RING - snap, pinion
1шт.
13
A11608
GEAR - low range (18T)
1шт.
14
A11610
GEAR - high range (38T)
1шт.
15
A28151
LOCK WASHER
- lock, range gear
1шт.
16
A28152
NUT
- lock, range gear
1шт.
17
A28149
ROLLER BEARING,1.7311" ID x 2.8346" OD x 1.0625"
BEARING - rear, range shaft
1шт.
18
A28153
RING
- snap, rear bearing
2шт.
19
A28232
SHAFT - drive, P.T.O. (58-5/8" long)
1шт.
20
A28234
SLEEVE
- drive, P.T.O. & hyd. pump
1шт.
26
A10325
SHAFT ASSY. - range drive, 730 Grove (incl. ref. 27)
1шт.
27
A28235
BUSHING
- shaft (1-1/8 x 1-1/4 x 3/4"), 730 Grove
1шт.
28
A9863
CARRIER - bearing, range shaft, 730 Grove
1шт.
29
A28148
BALL BEARING
BEARING - front, range shaft, 730 Grove
1шт.
30
A9862
CARRIER - oil seal, 730 Grove
1шт.
31
61-48
HEX SOC SCREW,1/4"-20 x 1/2"
SCREW - 1/4 x 1/2" N.C. socket hd., 730 Grove
1шт.
32
A27089
SNAP RING,2.36mm Thk, Ext
RING - snap, bearing, 730 Grove
1шт.
33
A26842
OIL SEAL
SEAL - oil, front bearing, 730 Grove
1шт.
34
A27994
O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro
"O" RING - carrier (3-1/4 x 3-1/2 x 1/8"), 730 Grove
1шт.
35
A11608
GEAR - low range (18T), 730 Grove
1шт.
36
A11610
GEAR - high range (38T), 730 Grove
1шт.
37
A28151
LOCK WASHER
- lock, range gear nut, 730 Grove
1шт.
38
A28152
NUT
- lock, range gear, 730 Grove
1шт.
39
A28149
ROLLER BEARING,1.7311" ID x 2.8346" OD x 1.0625"
BEARING - rear, range shaft, 730 Grove
1шт.
40
A28153
RING
- snap, rear bearing, 730 Grove
2шт.
41
A10367
SHAFT - P.T.O. (55-21/32"), 730 Grove
1шт.
42
A28234
SLEEVE
- drive, P.T.O. & hyd. pump, 730 Grove
1шт.
Выбрано товаров: 37
