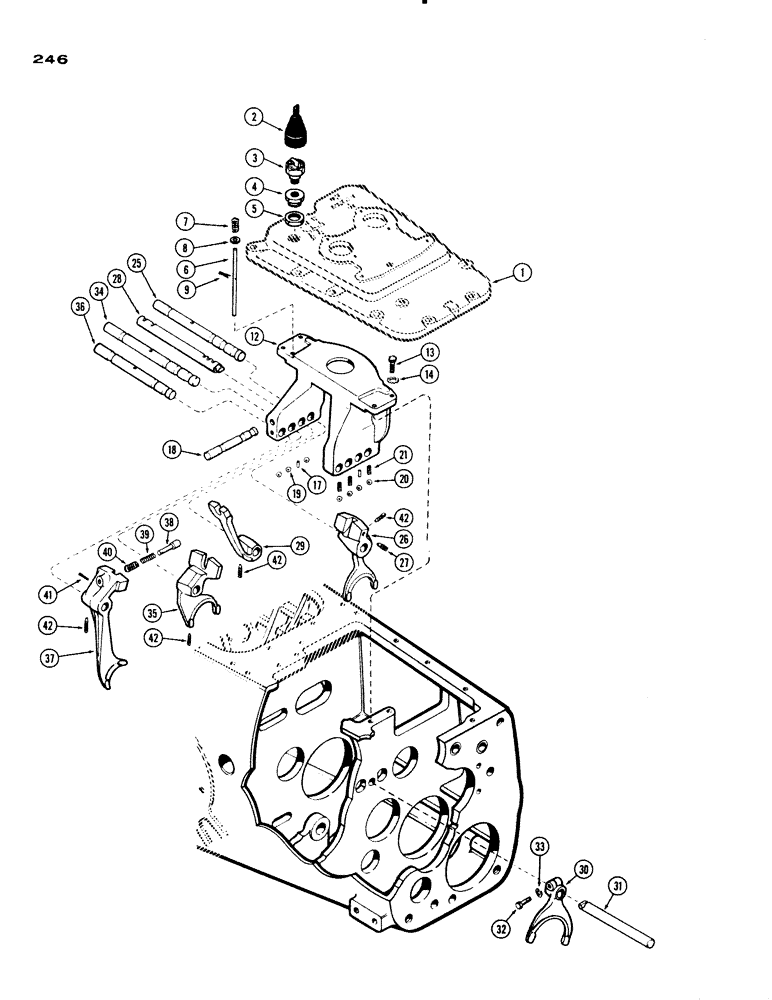

Запчасти Case IH 730 SERIES (246) - SHIFTER SHAFTS AND FORKS, 1ST USED TRAC. S/N 8173401 (06) - POWER TRAIN

1

A22697

COVER - shifter shafts

1шт.

2

A20991

BOOT

- safety switch

1шт.

3

A20990

SWITCH

- safety, neutral start

1шт.

4

A20988

NUT - switch adjusting

1шт.

5

A20989

LOCK NUT

NUT - lock, adjustment

1шт.

6

A22713

ROD - safety switch

1шт.

7

A22712

SPRING

- safety switch rod

1шт.

8

195-18

WASHER,1/4"

- plain (9/32 x 5/8 x 1/16")

1шт.

9

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

12

A33452

BRACKET - shifter shafts

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

17

138-53

LOCK PIN,1/8" x 1/2", Slotted

PIN, , range left 1/8" x 1/2", Slotted

1шт.

18

A22709

SHAFT - shift interlock

1шт.

19

211-11

BALL,3/8" Dia

- interlock shaft (.) 3/8" Dia

3шт.

20

211-13

BALL,1/2" Dia

- shifter detent 1/2" Dia

4шт.

21

A26703

SPRING

- shifter detent

4шт.

25

A22704

SHAFT

- shifter, 1st & 2nd gear

1шт.

26

A33949

FORK

- shifter, 1st & 2nd gear

1шт.

27

178-805

SET SCREW,Hex Soc, 5/16"-18 x 5/8"

SCREW - stop, 5/16 x 5/8" N.C. w/Nylon insert

1шт.

28

A22707

SHAFT

- rear, range shifter

1шт.

29

A22708

BLOCK - range shifter shaft

1шт.

30

A8449

X

FORK - range shifter

1шт.

31

A8590

SHAFT

- front, range shift fork

1шт.

32

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- 7/16 x 1-1/4" N.F. hex

1шт.

33

92-7

LOCK WASHER,7/16"

1шт.

34

A22705

SHAFT - shifter, 3rd & 4th gear

1шт.

35

A22702

FORK - shifter, 3rd & 4th gear

1шт.

36

A22706

SHAFT - reverse shifter

1шт.

37

A22703

FORK - reverse shifter

1шт.

38

A22711

PLUNGER

- reverse shift lock-out

1шт.

39

A33044

SPRING

- inner, plunger (27/64 O.D. x 19/16 lg.)

1шт.

40

A22712

SPRING

- outer, plunger (9/16 O.D. x 1-27/64 lg.)

1шт.

41

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

42

A7044

SET SCREW,3/8" - 16 x 7/8"

- shifter fork

4шт.
