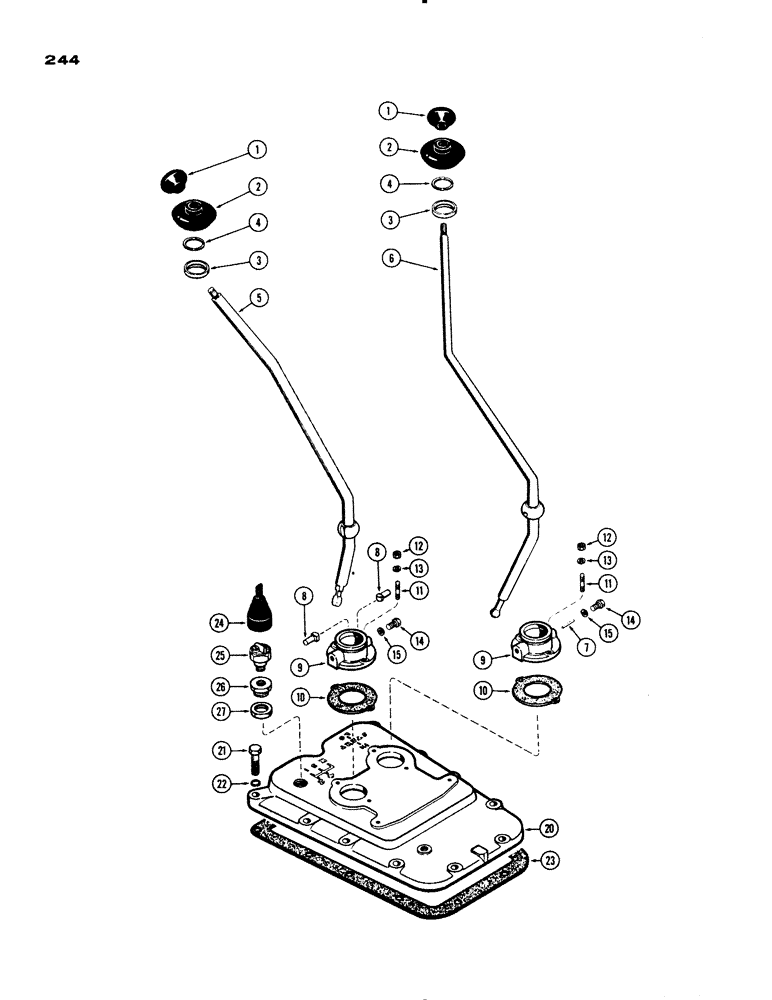

Запчасти Case IH 730 SERIES (244) - GEAR SHIFT, 1ST USED TRAC. S/N 8173401 (06) - POWER TRAIN

1

A26727

BALL

KNOB - shift lever

2шт.

2

A26956

DUST CAP

CAP - dust

2шт.

3

A7923

SEAT

- upper, shift lever

2шт.

4

A26836

RING, SNAP

RING - snap, seat retainer

2шт.

5

A22699

LEVER - gear shift

1шт.

6

A22698

LEVER - range shift

1шт.

7

A23069

AXLE PIN

PIN - pivot, range shift lever

1шт.

8

A26835

PIN

- pivot, gear shift lever

2шт.

9

A7596

SOCKET

- shift lever, range & gear

2шт.

10

A7598

GASKET

-, Serial Range: socket-cover

2шт.

11

A7597

STUD - socket (3/8 x 1-5/16")

4шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8 x 1/2" N.C. hex

2шт.

15

A22317

WASHER

- copper (25/64 x 11/16 x 3/64")

2шт.

20

A22697

COVER - shifter forks & shafts

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

9шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex

2шт.

22

92-8

LOCK WASHER,1/2"

11шт.

23

A7594

GASKET

- cover

1шт.

24

A20991

BOOT

- neutral starting switch

1шт.

25

A20990

SWITCH

- safety, neutral start

1шт.

26

A20988

NUT - adusting, switch

1шт.

27

A20989

LOCK NUT

NUT - lock, adjustment

1шт.
