Запчасти Case IH 730 SERIES (226) - FRONT AXLE, TIE RODS, HIGH CLEARANCE (05) - STEERING

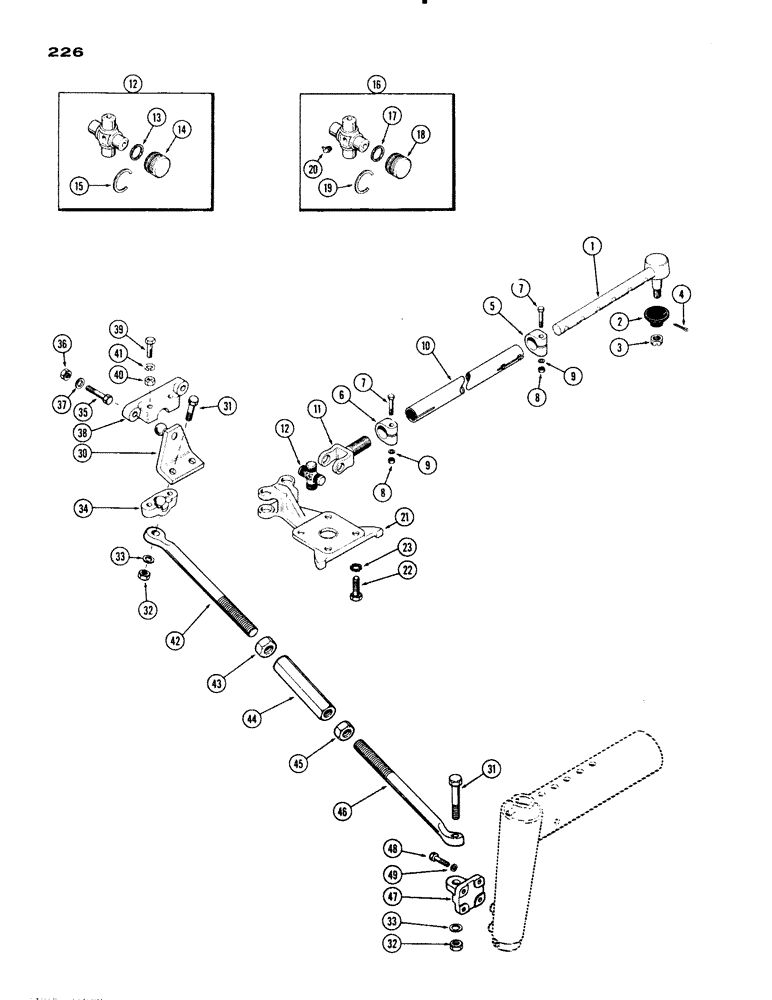

Схема запчастей Case IH 730 SERIES - (226) - FRONT AXLE, TIE RODS, HIGH CLEARANCE (05) - STEERING
7
15
42
2
6
32
17
8
49
23
18
19
33
12
5
32
35
36
3
11
39
34
48
31
31
7
30
1
44
8
38
33
43
16
22
10
9
9
40
45
46
13
4
37
14
41
12
20
47
21

Артикул

Название

Примечание

Количество

1

A8395

ROD ASSY. - tie, L.H. (12-3/4" lg.) (incl. ref. 2 & 3)

1шт.

1

A7920

ROD ASSY. - tie, R.H. 912-3/4" lg.) (incl. ref. 2 & 3)

1шт.

2

A31186

BOOT

COVER - dust (rubber)

1шт.

3

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - slotted, 5/8" N.F.

1шт.

4

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

5

A7913

CLAMP -, Serial Range: rod-tube

4шт.

6

A27746

CLAMP -, Serial Range: yoke-tube

2шт.

7

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.F. hex

6шт.

8

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

6шт.

9

92-8

LOCK WASHER,1/2"

6шт.

10

A7921

TUBE - tie rod

2шт.

11

A8195

YOKE - inner, tie rod

2шт.

12

A30435

KIT

- universal joint cross (Replaces B18132 when depleted) See ref. 16 (incl. ref. 13 - 15)

2шт.

13

A30766

WASHER - cork

4шт.

14

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A30435)

4шт.

15

A31149

RING, SNAP

RING - snap

4шт.

16

B18132

X

KIT - universal joint cross (See ref. 12) (incl. ref. 17 - 20)

2шт.

17

F62222

WASHER - cork

4шт.

18

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A30435)

4шт.

19

31149

X

RING - snap

4шт.

20

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. 67-1/2 deg.

1шт.

21

A7917

ARM - steering, arm

1шт.

22

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

4шт.

23

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

30

A8389

BRACKET ASSY. (includes pivot ball)

1шт.

31

14-1440

BOLT - 7/8 x 2-1/2" N.F. hex Hex, 7/8"-14 x 2 1/2", G5

4шт.

32

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex

4шт.

33

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

34

A26064

CAP - pivot ball

1шт.

35

14-1052

BOLT,Hex, 5/8" - 18 x 3-1/4"

- 5/8 x 3-1/4" N.F. hex

2шт.

36

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

37

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

38

A8390

SOCKET - pivot ball

1шт.

39

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.F. hex

2шт.

40

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

2шт.

41

92-8

LOCK WASHER,1/2"

2шт.

42

A8385

ROD - truss, rear (19" lg. w/1-1/4" N.F. L.H. thrd.)

2шт.

43

129-372

NUT,Jam, 1 1/4"-12, G5, LH

- jam, 1-1/4" N.F. L.H. thrd.

2шт.

44

A8386

TURNBUCKLE - adjusting, truss rod

2шт.

45

25-1520

NUT

- jam, 1-1/4" N.F. R.H. thrd.

2шт.

46

A8384

ROD - truss, front (17-7/16" lg. w/1-1/4" N.F. R.H. thrd.)

2шт.

47

A8387

BRACKET - truss, Serial Range: rod-axle

2шт.

48

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

49

92-8

LOCK WASHER,1/2"

8шт.

Выбрано товаров: 44
