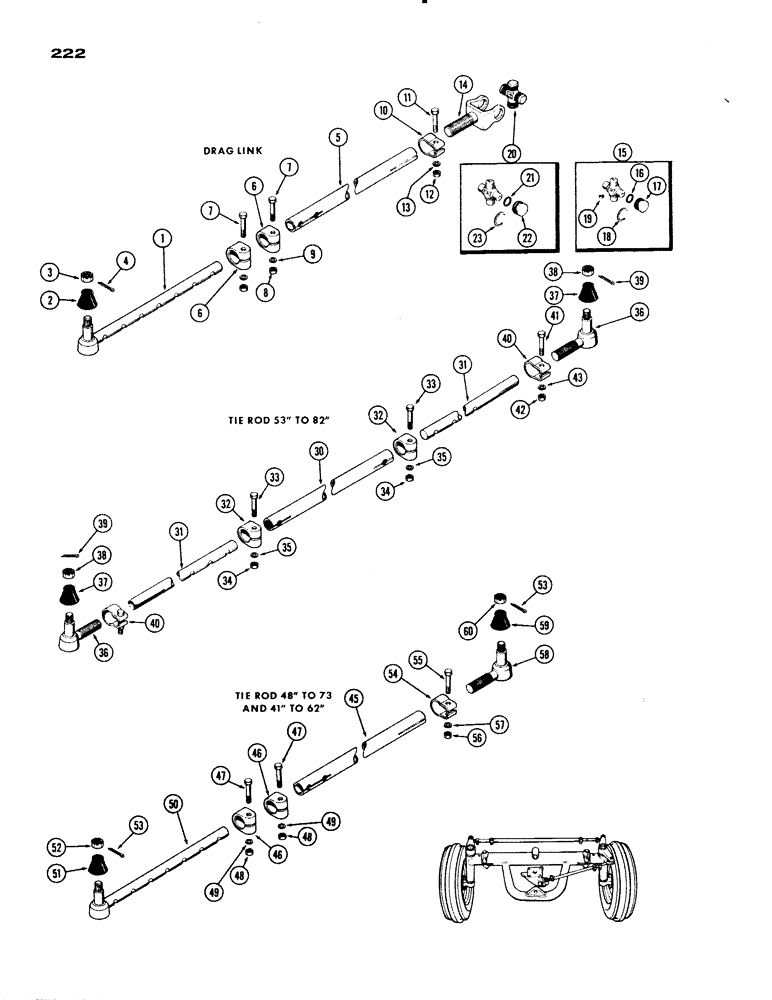

Запчасти Case IH 730 SERIES (222) - FRONT AXLE, TIE RODS, GENERAL PURPOSE (05) - STEERING

1

A8750

LINK

- drag, notched (53" to 82" and 48" to 73" tread) (incl. ref. 2 & 3)

1шт.

1

A8978

TIE-ROD

LINK - drag, notched (41" to 62" tread) (incl. ref. 2 & 3)

1шт.

2

G46043

COVER

SEAL - dust (rubber)

1шт.

3

25-139

SLOTTED NUT,9/16"-18, G5

NUT - slotted, 9/16" N.F.

1шт.

4

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

5

A8751

TUBE - drag link (53" to 82" tread)

1шт.

5

A8839

TUBE - drag link (48" to 73" tread)

1шт.

5

A8977

TUBE - drag link (41" to 62" tread)

1шт.

6

A26139

CLAMP

- tube to drag link

2шт.

7

14-732

CAPSCREW,Hex, 7/16" - 20 x 2", Gr 5

BOLT - 7/16 x 2" N.F. hex

2шт.

8

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

2шт.

9

92-7

LOCK WASHER,7/16"

2шт.

10

A27080

CLAMP

- tube to yoke (incl. ref. 11 - 13)

1шт.

11

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8 x 1-3/4" N.F. hex

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

A8752

YOKE

- universal, drag, Serial Range: link-arm

1шт.

15

B18132

X

KIT - univ. joint cross (Order A30435) (incl. ref. 16 - 19)

1шт.

16

F62222

WASHER - cork

4шт.

17

NSS

NOT SOLD SEPARAT

BEARING - (Order A30435)

4шт.

18

A31149

RING, SNAP

RING - snap

4шт.

19

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. 67-1/2"

1шт.

20

A30435

KIT

- univ. joint cross (incl. ref. 21 - 23)

1шт.

21

A30766

WASHER - cork

4шт.

22

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A30435)

4шт.

23

A31149

RING, SNAP

RING - snap, bearing

4шт.

30

A8747

TUBE

- tie rod (36-3/4" lg. for 53 to 82 tread)

1шт.

31

A24668

TIE-ROD

ROD - tie, notched (20-1/4" lg.) (Replaces A9599)

2шт.

USE A24668; HAS 6 NOTCHES.

1шт.

32

A20421

CLAMP

- tie, Serial Range: rod-tube

2шт.

33

14-740

BOLT,Hex, 7/16" - 20 x 2-1/2"

- 7/16 x 2-1/2" N.F. hex

2шт.

34

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

2шт.

35

92-7

LOCK WASHER,7/16"

2шт.

36

A28419

END ASSY.

END - tie rod, threaded (incl. ref. 37 & 38)

2шт.

37

G46043

COVER

SEAL - dust, (rubber)

1шт.

38

25-139

SLOTTED NUT,9/16"-18, G5

NUT - slotted, 9/16" N.F.

1шт.

39

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

40

A27080

CLAMP

- tie rod end

2шт.

41

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8 x 1-3/4" N.F. hex

2шт.

42

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

2шт.

43

92-7

LOCK WASHER,7/16"

2шт.

45

A8795

TUBE - tie rod (38" lg. for 48" to 73" tread)

1шт.

45

A8976

TUBE - tie rod (30-3/4" lg. for, Serial Range: 41"-62")

1шт.

46

A26139

CLAMP

- notched tie, Serial Range: rod-tube

2шт.

47

14-732

CAPSCREW,Hex, 7/16" - 20 x 2", Gr 5

BOLT - 7/16 x 2" N.F. hex

2шт.

48

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

2шт.

49

92-7

LOCK WASHER,7/16"

2шт.

50

A8794

ROD

END - tie rod, notched (24" lg.) (incl. ref. 51 & 52)

1шт.

51

G46043

COVER

SEAL - dust (rubber)

1шт.

52

25-139

SLOTTED NUT,9/16"-18, G5

NUT - slotted, 9/16" N.F.

1шт.

53

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

54

A27080

CLAMP

- tie rod end, threaded

1шт.

55

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 7/16 x 1-3/4" N.F. hex

1шт.

56

25-117

NUT,7/16"-20, G5

- 7/16 N.F. hex

1шт.

57

92-7

LOCK WASHER,7/16"

1шт.

58

A28419

END ASSY.

END - tie rod, threaded (incl. ref. 59 & 60)

1шт.

59

G46043

COVER

SEAL - dust (rubber)

1шт.

60

25-139

SLOTTED NUT,9/16"-18, G5

NUT - slotted, 9/16" N.F.

1шт.
