Запчасти Case IH 730 SERIES (202) - POWER STEERING PUMP ATTACHMENT, GENERAL PURPOSE, 1ST USED TRAC. S/N 8168000 (05) - STEERING

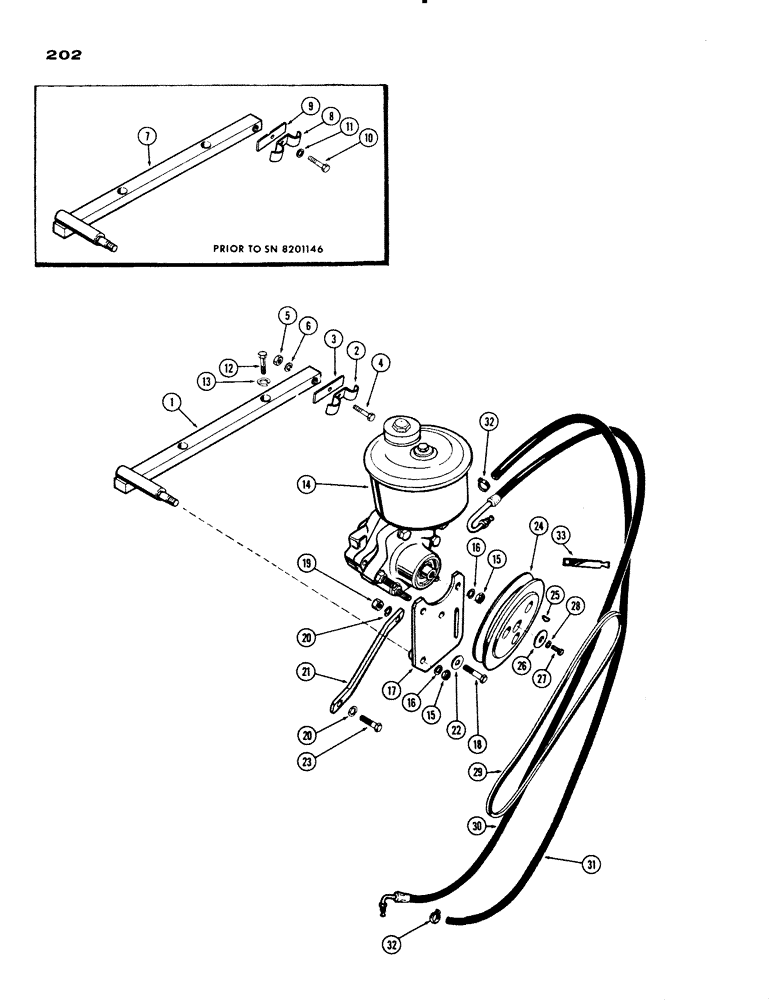

Схема запчастей Case IH 730 SERIES - (202) - POWER STEERING PUMP ATTACHMENT, GENERAL PURPOSE, 1ST USED TRAC. S/N 8168000 (05) - STEERING
11
3
24
27
21
9
22
13
19
8
7
16
33
28
16
20
32
2
20
5
12
15
25
4
1
15
6
17
23
29
32
31
26
14
18
10
30

Артикул

Название

Примечание

Количество

1

A23344

STRAP

SUPPORT - pump brkt., Start Serial: 8201146

1шт.

2

A23350

CLAMP - hose, Start Serial: 8201146

1шт.

3

A23349

BRACKET - clamp, Start Serial: 8201146

1шт.

4

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex

1шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

A21738

SUPPORT - pump brkt., Serial Range: -8201146

1шт.

8

A22142

CLAMP - hose, Serial Range: -8201146

1шт.

9

A22141

BRACKET - clamp, Serial Range: -8201146

1шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

2шт.

13

92-7

LOCK WASHER,7/16"

2шт.

14

A22145

PUMP & RESERVOIR ASSY. - (Repairs Figure 208)

1шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

A21736

BRACKET - pump mounting

1шт.

18

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex hd.

1шт.

19

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A21740

STRAP - pump adjusting

1шт.

22

A23264

WASHER - adjusting (25/64 x 31/32 x 5/32")

1шт.

23

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex

1шт.

24

A8186

PULLEY

- pump drive

1шт.

25

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Pulley #3, 1/8" x 1/2"

1шт.

26

A27343

BUSHING

WASHER - pulley (11/32 x 15/16" x 12 ga.)

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

28

92-5

LOCK WASHER,5/16"

1шт.

29

A22765

BELT,32.00" L

Pump Drive 32.00" L

1шт.

30

A23347

HOSE

- pressure, Serial Range: pump-valve

1шт.

31

A23348

HOSE

- return

1шт.

32

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

33

A22926

CLAMP

- hose

1шт.

Выбрано товаров: 33
