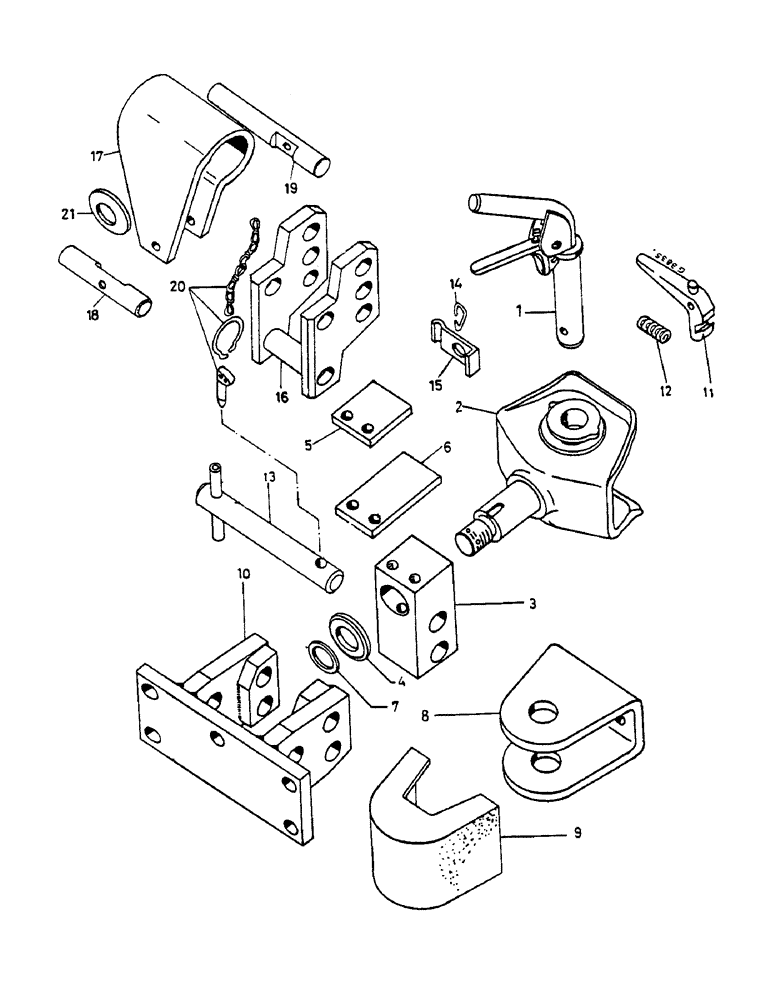

Запчасти Case IH 724 (316) - TRAILER HITCH (09) - CHASSIS

3057693R11

LARGE PIN

PIN, LARGE trailer hitch, with holes and 11, 12

1шт.

DESIGN, with spring lock A

1шт.

1

3059301R12

LARGE PIN

PIN, LARGE trailer hitch, without hole and 11, 12

1шт.

DESIGN, without spring lock 6B

1шт.

2

3137940R91

YOKE

UNIVERSAL JOINT YOKE HITCH trailer

1шт.

DESIGN, with spring lock A

1шт.

2

3059299R11

YOKE

UNIVERSAL JOINT YOKE HITCH trailer

1шт.

DESIGN, without spring lock 6B

1шт.

718869R1

SLOTTED NUT

slotted M32

1шт.

119218

BOTTOM

PIN, COTTER 5 x 55 mm

1шт.

3

3137945R1

BRACKET

BEARING

1шт.

DESIGN, with spring lock A

1шт.

3

3059303R1

CONNECTION

BEARING

1шт.

DESIGN, without spring lock 6B

1шт.

4

3050262R1

WASHER

RING, spacer

1шт.

5

3137942R1

SPRING

lock

1шт.

DESIGN, with spring lock A

1шт.

6

3137943R1

SPRING

lock

1шт.

DESIGN, with spring lock A

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

DESIGN, with spring lock A

1шт.

103321

LOCK WASHER,3/8"

2шт.

DESIGN, with spring lock A

1шт.

7

3050914R1

SHIM

1,0 mm

1шт.

DESIGN, without spring lock 6B

1шт.

7

3050941R1

DISC

SHIM 1.5 mm

1шт.

DESIGN, without spring lock 6B

1шт.

7

3054331R1

WASHER

SHIM 2.5 mm

1шт.

DESIGN, without spring lock 6B

1шт.

7

3054332R1

SHIM

3.5 mm

1шт.

DESIGN, without spring lock 6B

1шт.

8

3057454R1

CLEVIS

CLEVIS draw front

1шт.

DESIGN, with spring lock A

1шт.

8

3057454R1

CLEVIS

CLEVIS draw front

1шт.

DESIGN, without spring lock 6B

1шт.

13-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5, Full Thd

2шт.

103325

LOCK WASHER,5/8"

2шт.

9

3058235R1

CAP

protection for draw clevis

1шт.

10

3057727R92

BRACKET

1шт.

71560

BREAKER

S 5/8" x 45 mm

5шт.

103325

LOCK WASHER,5/8"

5шт.

11

3057695R1

LEVER

SPARE PART

1шт.

104073

RIVET

3/16" x 32 mm

1шт.

12

PR171

SPRING

1шт.

13

3057732R11

PIN

cross

1шт.

14

3058056R1

CLAMP

1шт.

15

3057366R1

HOOK,Knotter Chain

CLIP

1шт.

16

3057733R93

LEVER

BELLCRANK

1шт.

17

3058085R2

SPRING

bellcrank

1шт.

18

3057744R2

ROLL PIN

spring rear

1шт.

19

3057737R2

LARGE PIN

PIN, LARGE spring front

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

20

3058047R91

CHAIN (AG)

with linch pin

2шт.

20

3057346R11

LINCH PIN

2шт.

21

933606R1

BELLEVILLE WASHER,M14 Bolt Size x 28mm OD x 1mm Thk

WASHER lock

2шт.
