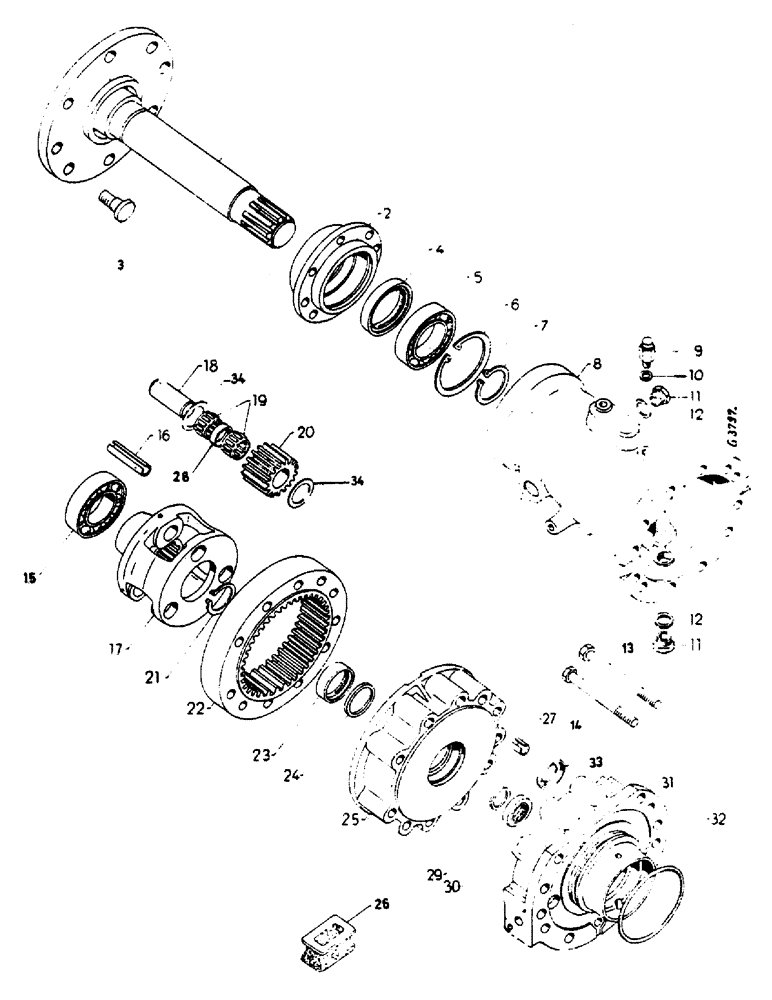

Запчасти Case IH 724 (184) - REAR AXLE (06) - POWER TRAIN

1

3142796R91

REAR AXLE

with bolts

2шт.

2

3059796R1

HUB

COVER, rear axle bearing

2шт.

3

3058254R1

SCREW

BOLT, wheel hub, ribbed neck

16шт.

933602R1

WHEEL NUT,Wheel, M18 x 1.5

ball flange, M18

16шт.

4

3059797R91

OIL SEAL

oil

2шт.

5

712794R91

BEARING, BALL,65 mm ID x 100 mm OD x 18 mm

2шт.

6

717027R1

SNAP RING,M130, Int

2шт.

7

933569R1

SNAP RING,M75, Ext

CIRCLIP

2шт.

8

3057004R2

CARRIER

rear axle, 553/654

2шт.

8

3137105R1

CARRIER

rear axle, 724/824

2шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

16шт.

103323

LOCK WASHER,1/2"

16шт.

-

172574

PLUG,Exp, 1 1/2"

expansion 64 mm dia.

2шт.

9

712831R1

BREATHER, filter

2шт.

10

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

Packing

2шт.

11

3131883R2

SCREW

PLUG

4шт.

12

933609R1

RING

4шт.

13

3057212R1

BOLT

S 1/2" x 160 mm, 553/654

4шт.

13

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

724/824

4шт.

103323

LOCK WASHER,1/2"

4шт.

14

3057211R1

BOLT

S 1/2" x 150 mm, 553/654

20шт.

14

191268

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

724/824

20шт.

103323

LOCK WASHER,1/2"

20шт.

15

85661H

BEARING, BALL

2шт.

16

932571R1

LOCK PIN,M16 x 80, Slotted

4шт.

17

3057488R31

DOOR

CARRIER, planet, 553/654

2шт.

17

3137202R11

CARRIER

planet, 724/824

2шт.

Q2930

LOCK PIN,M8 x 28, Slotted

6шт.

18

3059168R1

PIN

planet , 553/654

6шт.

18

3137110R1

LARGE PIN

PIN, LARGE planet, 724/824

6шт.

3058568R1

PAD

PLUG, 553/654

6шт.

3058569R1

PAD

PLUG

6шт.

19

3057210R91

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

needle, 553/654

12шт.

19

3137157R91

BEARING, NEEDLE

724/824

12шт.

20

3058529R91

GEAR-SET

planet, 553/654

2шт.

20

3137108R91

PACKAGE

GEAR, planet, set of, 724/824

2шт.

21

933944R1

RING,52.88mm

2шт.

22

3057066R1

GEAR

internal spur, 553/654

2шт.

22

3137112R1

GEAR

SPARE PART internal spur, 724/824

2шт.

23

3058106R91

OIL SEAL

2шт.

24

3134943R1

O-RING

SCRAPER, oil, 553/654

2шт.

24

3137608R1

SEAL,60.8mm ID x 73mm OD x 3.1mm Thk

oil, 724/824

2шт.

25

3057007R2

SPACER

flange housing, 553/654

2шт.

25

3137115R1

SPACER

flange housing, 724/824

2шт.

26

3134946R1

CAP

GROMMET, LH

1шт.

26

3134947R1

CYLINDER END CAP

GROMMET, RH

1шт.

27

932570R1

LOCK PIN,M16 x 20, Slotted

4шт.

28

3137109R1

SPACER

RING, distance, 724/824

6шт.

29

3134944R1

SEAL,45mm ID x 59mm OD x 3.1mm Thk

SCRAPER, oil

2шт.

30

3058107R91

SEAL,42.5mm ID x 65.18mm OD x 13mm Thk

oil

2шт.

31

3059996R92

HOUSING

brake, with 29,30,33, 553/654

2шт.

31

3134999R91

HOUSING

brake, with 29,30,33, 724/824

2шт.

21571R1

SCREW,Hex Soc Hd, 5/8" - 11 x 1 1/2"

18шт.

21572R1

SCREW,Hex Soc Hd, 5/8" - 11 x 3 1/4"

2шт.

32

713791R1

O-RING,5mm Thk x 144mm ID, 75 Duro

2шт.

33

3059995R1

RETAINER

packing ring

2шт.

34

3058417R1

WASHER

thrust, 553/654

12шт.

34

3137111R1

THRUST WASHER

thrust, 724/824

12шт.
