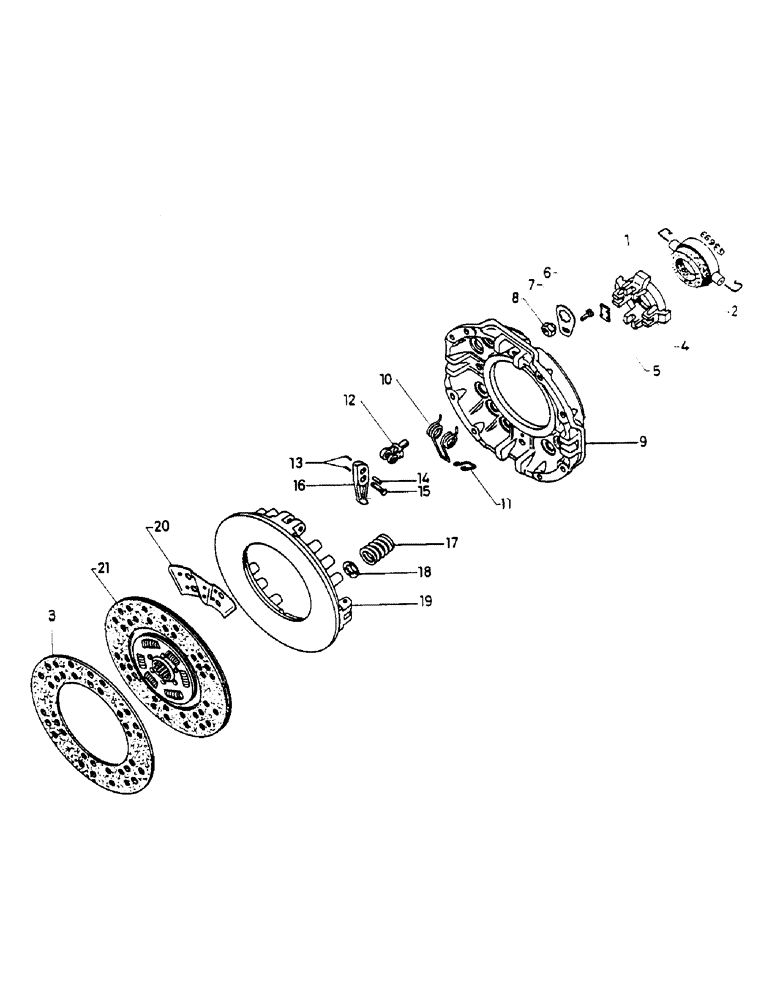

Запчасти Case IH 724 (116) - SINGLE CLUTCH - 3134588R92 (06) - POWER TRAIN

3134588R92

CLUTCH, single, RH

1шт.

3142102R91

CLUTCH, single with ceramic linings, LH

1шт.

1

712679R1

SPRING

CLIP, spring, RH, LH

2шт.

2

3136858R11

STOP

RING, graphite, with holder, RH, LH

1шт.

2

3136859R91

RING

graphite, with spring clip, RH, LH

1шт.

932613R1

SPARE PART roll 3.5 x 10 mm

1шт.

3

3058385R1

CLUTCH FACING

LINING, RH

2шт.

712673R1

RIVET

48шт.

4

3058378R2

RING

release, RH, LH

1шт.

5

712688R1

PLATE

wearing, RH, LH

4шт.

6

712684R1

SCREW,Sltd Pan Hd, M5 x 10

4шт.

712687R1

WASHER

2шт.

7

712686R2

DISC

LOCK, ball nut, RH, LH

4шт.

8

712685R1

NUT

ball, RH, LH

4шт.

9

3058377R1

HOUSING

CASE, RH, LH

1шт.

10

712682R1

SPRING

retainer, RH, LH

4шт.

11

3058379R1

SPRING

lever, RH, LH

4шт.

12

3058384R2

YOKE

UNIVERSAL JOINT YOKE adjusting, RH, LH

4шт.

13

712692R1

NEEDLE

ROLLER, RH, LH

152шт.

14

712691R1

PIN

straight, RH, LH

4шт.

15

3056778R1

PIN

headed, RH, LH

4шт.

107762

WASHER,3/32" x 5/8"

RH

4шт.

107762

WASHER,3/32" x 5/8"

LH

2шт.

16

3058382R1

LEVER

release, RH, LH

4шт.

16

3058382R12

LEVER

release with 12, 13, 15, RH, LH

4шт.

17

3136863R1

SPRING

main, RH

12шт.

17

3142126R1

SPRING

main, LH

8шт.

17

3142127R1

SPRING

main, LH

4шт.

18

712683R1

DISC

insulating, RH, LH

12шт.

19

3058381R1

PLATE

pressure, RH, LH

1шт.

19

3058380R91

PLATE

pressure with levers, RH, LH

1шт.

19

3057150R92

MECHANISM

PLATE, pressure with 4 - 19, RH

1шт.

19

3142129R91

PLATE, THRUST

pressure, LH

1шт.

20

3058386R1

SPRING

RH

6шт.

712676R1

RIVET

12шт.

21

3059214R93

CLUTCH DISC

CLUTCH DISK with linings and intermediate springs, RH

1шт.

21

3142128R91

DISC

clutch, with linings and intermediate springs, LH

1шт.
