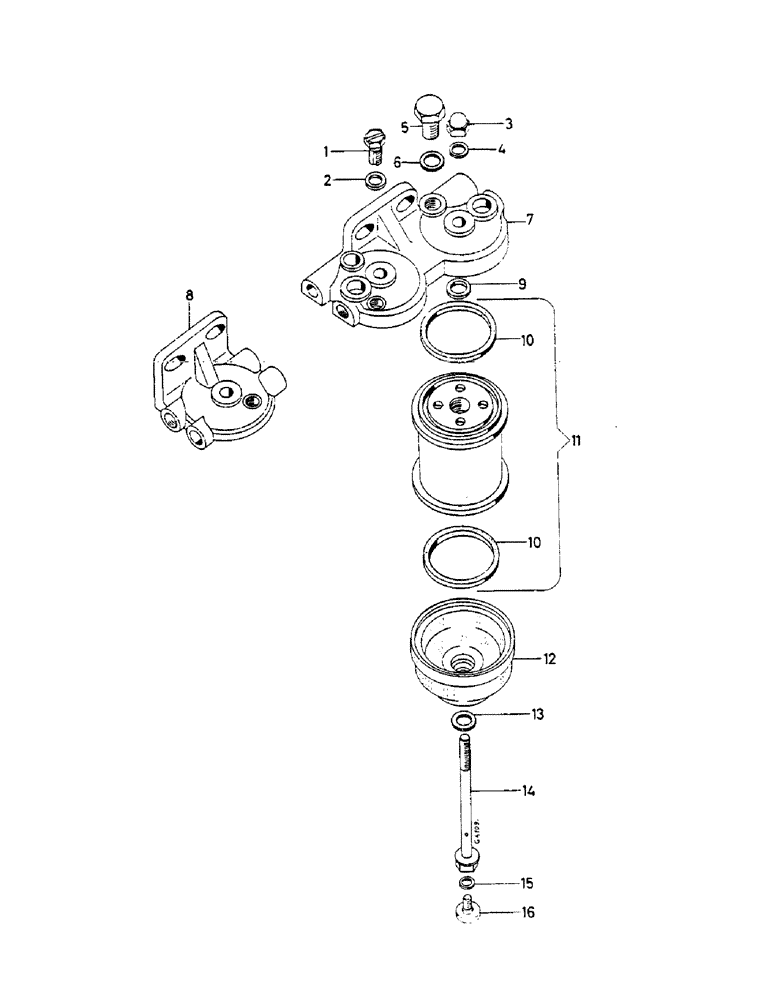

Запчасти Case IH 724 (064) - FUEL FILTER (03) - FUEL SYSTEM

3144239R91

FILTER

fuel, with 1-4, 8-16

1шт.

3144227R91

FILTER

fuel, with 1-7, 9-16

1шт.

1

3055881R1

SCREW

air vent

2шт.

2

757760R1

RING

packing

2шт.

3

3144473R1

CROWN NUT

crown

3шт.

4

3144474R1

RING,8mm ID x 13mm OD x 1.5mm Thk

packing

3шт.

5

712616R1

PLUG,Hex, M14 x 1.5

1шт.

6

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.

7

3144484R1

HEAD

COVER

1шт.

8

3144483R1

COVER

1шт.

9

3078483R1

O-RING,2.5mm Thk x 15mm ID

packing

3шт.

10

3144472R1

RING

SEAL

6шт.

11

3144477R91

FILTER

ELEMENT, cpt.

3шт.

12

3144478R1

FILTER BOWL

glass

3шт.

13

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

packing

3шт.

14

3144479R1

BOLT,Hex, M8 x 148mm, Cl 8.8

hollow

3шт.

15

3144476R1

RING

packing

3шт.

16

3144475R1

SCREW

drain

3шт.
