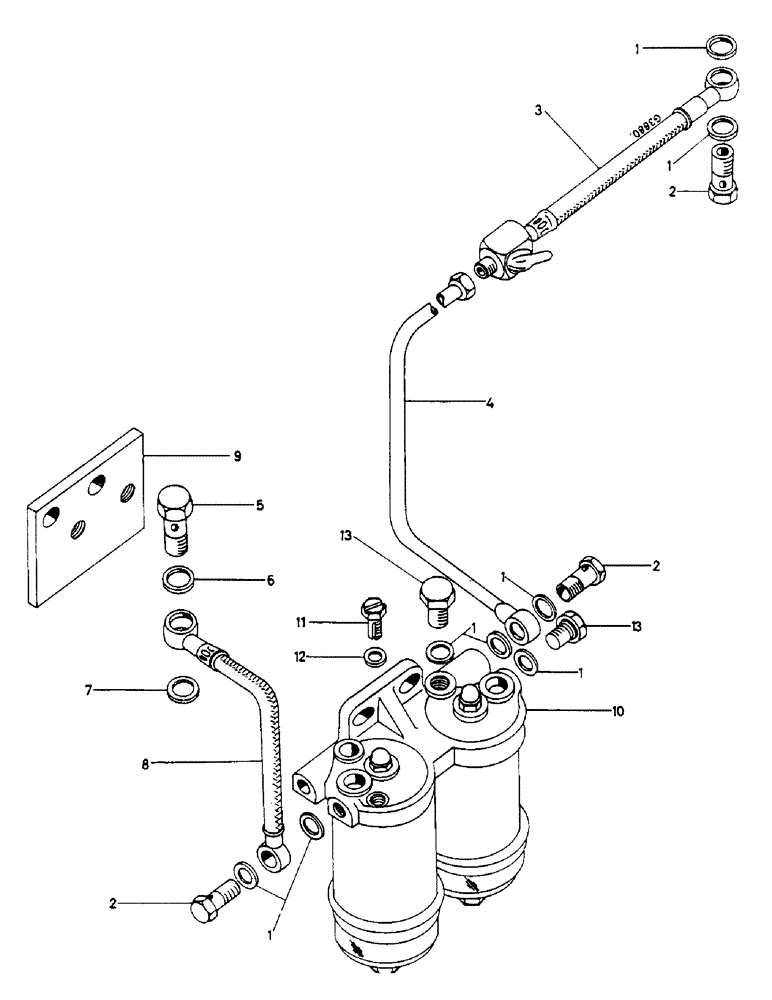

Запчасти Case IH 724 (062) - FUEL FILTER AND PIPES (03) - FUEL SYSTEM

1

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

8шт.

2

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

3шт.

3

3136221R91

FUEL TUBE

with valve

1шт.

4

3144236R1

PIPE

fuel

1шт.

5

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

hollow

1шт.

6

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

7

3055390R1

RING

packing

1шт.

8

3132171R1

TUBE,225 mm Length

LINE, filter - injection pump

1шт.

9

3144225R1

BAR

BRACKET, fuel filter

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

10

REF

INSTRUCTION

FILTER, fuel, see Figure: 64

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

(3/8")

2шт.

11

3055881R1

SCREW

air vent

1шт.

12

757760R1

RING

packing

1шт.

13

712616R1

PLUG,Hex, M14 x 1.5

2шт.
