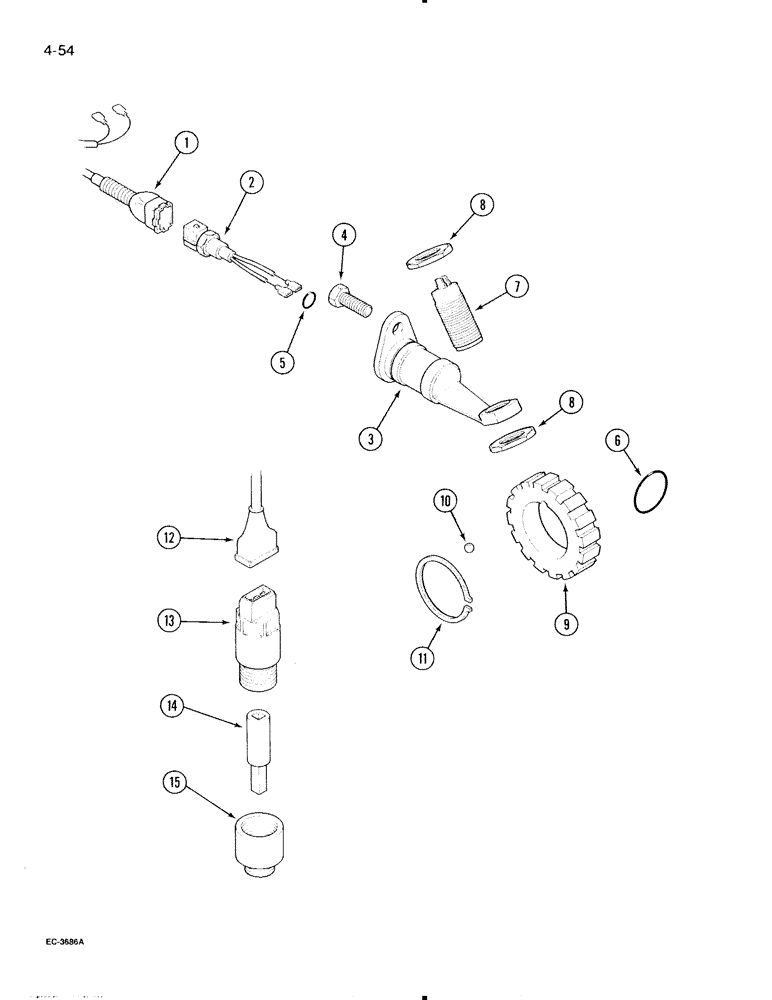

Запчасти Case IH 695 (4-54) - SPEED SENSORS, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

1

1536962C1

HARNESS

ASSEMBLY - road speed sensor

1шт.

2

99990C1

HARNESS

CABLE ASSEMBLY - sensor

1шт.

3

1536980C1

SUPPORT

MOUNTING - road speed sensor

1шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

6

238-5024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 5, 75 Duro

- 1 1/8 ID x 1/8 inch wide

1шт.

7

1536981C1

SENSOR

- road speed, Includes: Ref. 8

1шт.

8

84116C1

NUT

- lock

2шт.

9

1537171C1

GEAR

WHEEL - slotted, speedometer (See Figure 6-038)

1шт.

10

17008R1

BALL,1/4" Dia

(6mm) - Wheel speedometer 1/4" Dia

1шт.

11

381486R1

SNAP RING,#187, 1.759", Ext

RING - retaining wheel speedometer

1шт.

12

1536961C1

HARNESS

ASSEMBLY - front (See Figure 4-04) engine speed sensor (prior to PIN JJE0017402)

1шт.

REF 12 RETAINING CLIP THAT JOINS THE HARNESS AND THE ENGINE SPEED SENSOR CAN BE FOUND ON THE HARNESS ASSY. (IT IS NSS).

1шт.

13

1532297C1

SENSOR

- engine speed, (prior to PIN JJE0017402)

1шт.

Ref #13 Is drawn incorrectly. There are no threads on the out side diameter of the sensor body, the threads are on the inside diameter.

1шт.

14

1537129C1

EXTENSION

- engine speed pickup, sensor, (prior to PIN JJE0017402)

1шт.

15

1537128C1

ADAPTER

- engine speed sensor, (prior to PIN JJE0017402)

1шт.

Ref # 15 Is shown rotated 180 degrees, the male threads fit into the sensor body.

1шт.

5

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
